NE5532 - Dual Low Noise Op-Amp

Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps 8-SOIC (0.154, 3.90mm Width) General Purpose 15V 0°C~70°C NE5532 OP Amp Dual GP ±20V 8-Pin SOIC N Rail

1092

Nov 4, 2021

Olivia Harrison

Operational amplifier step response test NE5532, TL072, LM833, LM4562



Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps 8-SOIC (0.154, 3.90mm Width) General Purpose 15V 0°C~70°C NE5532 OP Amp Dual GP ±20V 8-Pin SOIC N Rail

The NE5532 is a Dual Low Noise Op-Amp in 8-pin package commonly used as amplifiers in audio circuits for its noise immunity and high output drive capability. The Op-Amp is internally compensated for high unity gain with maximum output swing bandwidth, low distortion and high slew rate. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.

NE5532D8G

50000In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $1.53953$1.54
10+ $1.45239$14.52
100+ $1.37018$137.02
500+ $1.29262$646.31
1000+ $1.21945$1219.45
Unit Price:$1.53953
Subtotal: $1.54
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

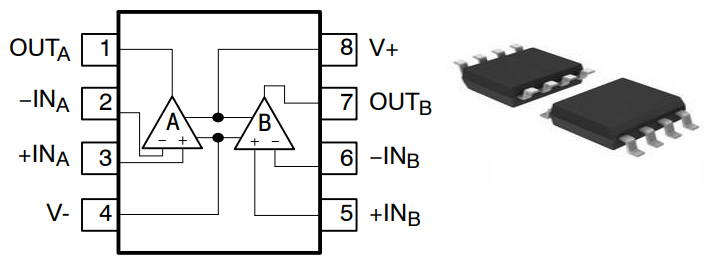

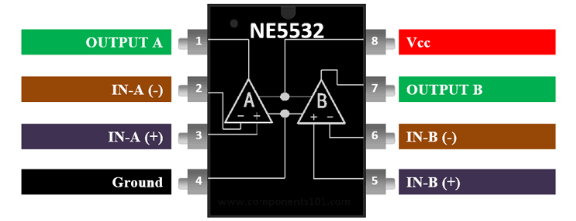

NE5532 Pinout

Pinout

NE5532 Pinout



      Pin Number                        Pin Name                                                     Description
1 OUTPUTA Output of Op-Amp A
2 INPUTA- Inverting Input of Op-Amp A
3 INPUTA+ Non-Inverting Input of Op-Amp A
4 VEE,GND Ground or Negative Supply Voltage
5 INPUTB+ Non-Inverting Input of Op-Amp B
6 INPUTB- Inverting Input of Op-Amp B
7 OUTPUTB Output of Op-Amp B
8 VCC Positive Supply Voltage

NE5532 CAD Model

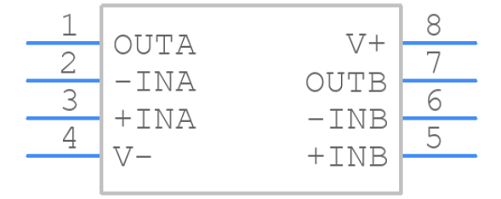

PCB Symbol

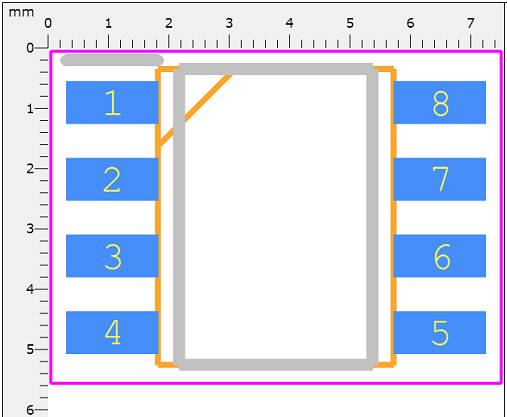

PCB Footprint

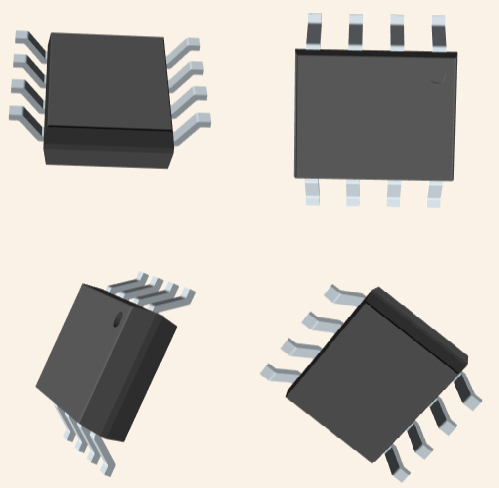

3D Model

NE5532 Description

The NE5532 is a dual high-performance low noise operational amplifier. Compared to most of the standard operational amplifiers, such as the 1458, it shows better noise performance, improved output drive capability and considerably higher small-signal and power bandwidths. This makes the device especially suitable for application in high-quality and professional audio equipment, instrumentation and control circuits, and telephone channel amplifiers. The op amp is internally compensated for gains equal to one. If very low noise is of prime importance, it is recommended that the 5532A version be used because it has guaranteed noise voltage specifications.

The NE5532 is a Low Noise Audio amplifier IC. The IC features a very low noise with unity gain internal compensation. The gain of the IC is upto to 5000 and hence is commonly used in audio pre-amplifier circuits. Since the IC is highly immune to noise it is commonly preferred in sensitive audio signal conditioning designs. The Op-Amp also has a low range operating voltage from ±3V to ±20V and hence can be used in wide variety of voltage ranges. The Op-Amp can also has wide bandwidth and slew rate and hence can be used in frequency selection, enabling you control bass or treble of a audio signals and play it in different modes like Rock, Jazz etc.

This article provides you with a basic overview of the NE5532 Dual Low Noise Op-Amp, including its pin descriptions, features and specifications, etc., to help you quickly understand what NE5532 is.

NE5532 Features

● Small-Signal Bandwidth: 10 MHz

● Output Drive Capability: 600 Ω, 10 VRMS

● Input Noise Voltage: 5.0 nV/√Hz (Typical)

● DC Voltage Gain: 50000

● AC Voltage Gain: 2200 at 10 kHz

● Power Bandwidth: 140 kHz

● Slew Rate: 9.0 V/μs

● Large Supply Voltage Range: ±3.0 to ±20 V

● Compensated for Unity Gain

● Pb−Free Packages are Available

Specifications

ON Semiconductor NE5532D8G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor NE5532D8G.

NE5532D8G Tech Specifications

ON Semiconductor NE5532D8G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor NE5532D8G.

Product Attribute Attribute Value
Lifecycle StatusACTIVE (Last Updated: 4 days ago)
Factory Lead Time4 Weeks
Contact PlatingTin
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154, 3.90mm Width)
Surface MountYES
Number of Pins8Pins
Number of Elements2 Elements
Operating Temperature0°C~70°C
PackagingTube
Published2002
JESD-609 Codee3
Pbfree Codeyes
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations8Terminations
ECCN CodeEAR99
Packing MethodRAIL
Max Power Dissipation780mW
Product Attribute Attribute Value
Terminal PositionDUAL
Terminal FormGULL WING
Peak Reflow Temperature (Cel)260
Number of Functions2Functions
Supply Voltage15V
Time@Peak Reflow Temperature-Max (s)40
Base Part NumberNE5532
Pin Count8
Power Supplies+-15V
Operating Supply Current8mA
Nominal Supply Current8mA
Power Dissipation780mW
Output Current38mA
Slew Rate9V/μs
ArchitectureVOLTAGE-FEEDBACK
Amplifier TypeGeneral Purpose
Common Mode Rejection Ratio70 dB
Current - Input Bias200nA
Voltage - Supply, Single/Dual (±)±3V~20V
Product Attribute Attribute Value
Halogen FreeHalogen Free
Output Current per Channel38mA
Input Offset Voltage (Vos)4mV
Neg Supply Voltage-Nom (Vsup)-15V
Unity Gain BW-Nom10000 kHz
Voltage Gain100dB
Average Bias Current-Max (IIB)1μA
Power Supply Rejection Ratio (PSRR)100dB
Low-OffsetNO
Frequency CompensationYES
Voltage - Input Offset500μV
Nominal Gain Bandwidth Product10MHz
Height1.5mm
Length5mm
Width4mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

NE5532 Functional Block Diagram

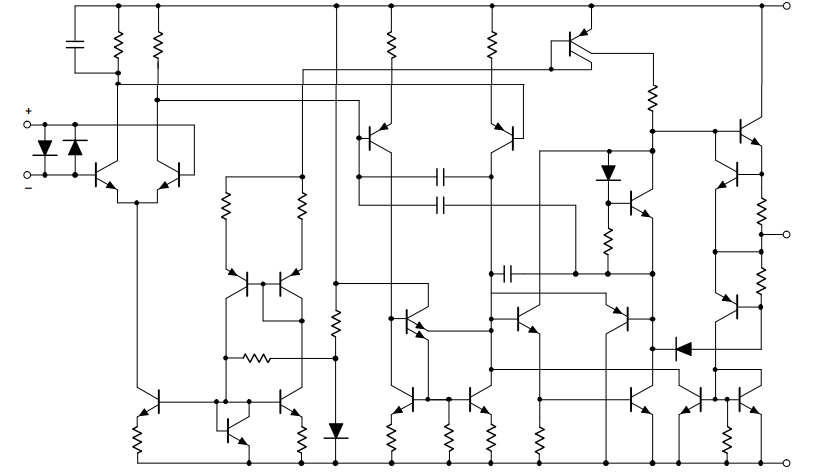

Equivalent Schematic (Each Amplifier)

NE5532 Test Circuits

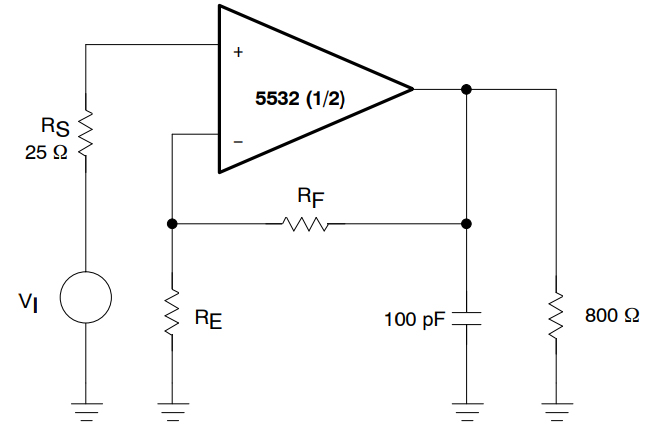

Closed-Loop Frequency Response

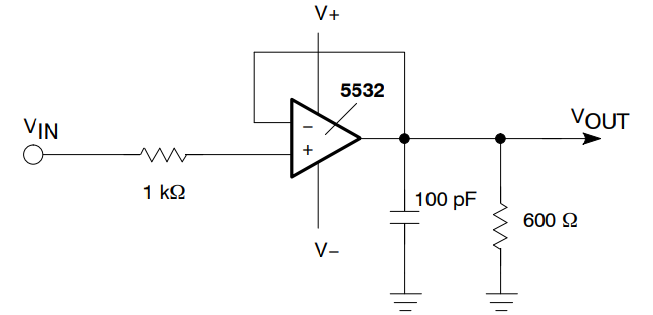

Voltage-Follower

NE5532 Equivalent

           Model number                   Manufacturer                                             Description
OP467GS Rochester Electronics LLC QUAD OP-AMP, 1000 uV OFFSET-MAX, 22 MHz BAND WIDTH, PDSO16, MS-013AA, SOIC-16
HA9P5104-5 Rochester Electronics LLC QUAD OP-AMP, 3000uV OFFSET-MAX, 60MHz BAND WIDTH, PDSO16, PACKAGE-16
NE5532AN ON Semiconductor Operational Amplifier, Low Noise, Dual, 8 LEAD PDIP, 50-TUBE
SA5532PE4 Texas Instruments Dual Low-Noise Operational Amplifier 8-PDIP -40 to 85
AD824AR-16 Analog Devices Inc IC QUAD OP-AMP, 4000 uV OFFSET-MAX, 2 MHz BAND WIDTH, PDSO16, PLASTIC, SOIC-16, Operational Amplifier
AD713JR Analog Devices Inc IC QUAD OP-AMP, 1500 uV OFFSET-MAX, 4 MHz BAND WIDTH, PDSO16, PLASTIC, SOIC-16, Operational Amplifier
TLE2024AMDW Rochester Electronics LLC QUAD OP-AMP, 950uV OFFSET-MAX, 2.8MHz BAND WIDTH, PDSO16, PLASTIC, SOIC-16
OP400GS Rochester Electronics LLC QUAD OP-AMP, 400000uV OFFSET-MAX, 0.5MHz BAND WIDTH, PDSO16, MS-013AA, SOIC-16
TLE2024BIDWR Texas Instruments QUAD OP-AMP, 700uV OFFSET-MAX, 2.8MHz BAND WIDTH, PDSO16, PLASTIC, SOIC-16
TLE2024AIDWG4 Texas Instruments Excalibur High-Speed Low-Power Precision Quad Operational Amplifier 16-SOIC -40 to 85

NE5532 Applications

● Pre-Amplifier Circuits

● Tone Control Circuit

● Audio Graphics equlizer

● Audio/Video broadcasting devices

● Pro Audio Mixers

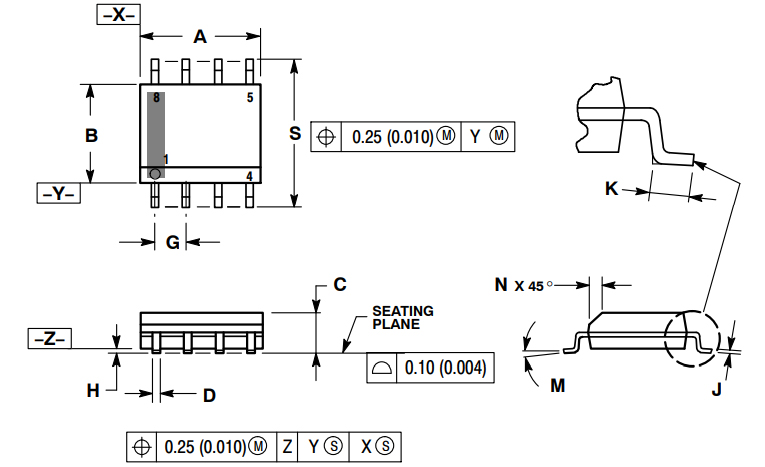

NE5532 Package

SOIC−8 Package

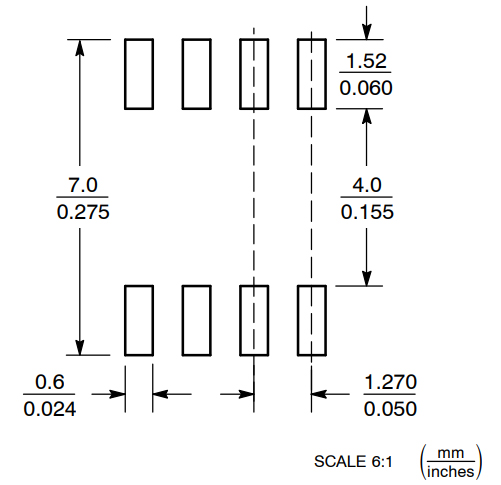

NE5532 Soldering Footprint

NE5532 Manufacturer

ON Semiconductor (Nasdaq: ON) is driving energy efficient innovations, empowering customers to reduce global energy use. The company offers a comprehensive portfolio of energy efficient power and signal management, logic, discrete and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace and power supply applications. ON Semiconductor operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices and design centers in key markets throughout North America, Europe, and the Asia Pacific regions.

Datasheet PDF

NE5532D8G Documents

Download datasheets and manufacturer documentation for NE5532D8G

Frequently Asked Questions

What is the essential property of the NE5532?
NE5532 is a high-performance, low-noise dual operational amplifier (dual operational amplifier) integrated circuit. It is similar to many standard op amps, but it has better noise performance, excellent output drive capability, a fairly high small signal bandwidth, and a large power supply voltage range. Therefore, it is very suitable for high-quality and professional audio equipment, instruments, control circuits and telephone channel amplifiers. When used as an audio amplifier, it has a warm tone and high fidelity. In the audio industry in the early 1990s, it was hailed as the "Emperor of Operational Amplifiers" by audiophiles. Till now, it is still one of the essential operational amplifiers in the hands of many audiophiles.
Why op amp NE5532 is suitable for pre-amplification?
NE5532 is a high-performance, low-noise dual operational amplifier (dual operational amplifier) integrated circuit. Its outstanding features are: good noise performance (high signal-to-noise ratio), fairly high small signal bandwidth, and ideal transient response characteristics (high conversion rate). So it is very suitable for pre-amplification stage of audio.
What is the difference between the op amp NE5532P and NE5532N?
In fact, there is no difference in function, only the manufacturer is different.
What is the difference between the working voltage of NE5532? How many W is the resistance of the op-amp circuit generally used?
NE5532 is generally used as an audio preamplifier. The proper voltage of NE5532 depends on the input signal; if the input signal is a large dynamic signal, the signal amplitude changes greatly. If the power supply voltage is used too low, the output signal will have clipping distortion. However, ±12V is generally sufficient for audio amplification, and generally does not exceed ±15V. The size of the resistance power has no effect on the sound quality. In theory, the bigger the better, but the higher the power, the more expensive, and the accuracy is often lower, which is wasteful and unnecessary; as a transport and discharge on the road, 0.25W is enough. As the power amplifier drive stage, high voltage is proposed, because the working voltage is high, the output voltage will be large. As a pre-amplifier stage, low voltage is used to reduce operating noise.
FAQ
What is the essential property of the NE5532?
NE5532 is a high-performance, low-noise dual operational amplifier (dual operational amplifier) integrated circuit. It is similar to many standard op amps, but it has better noise performance, excellent output drive capability, a fairly high small signal bandwidth, and a large power supply voltage range. Therefore, it is very suitable for high-quality and professional audio equipment, instruments, control circuits and telephone channel amplifiers. When used as an audio amplifier, it has a warm tone and high fidelity. In the audio industry in the early 1990s, it was hailed as the "Emperor of Operational Amplifiers" by audiophiles. Till now, it is still one of the essential operational amplifiers in the hands of many audiophiles.
Why op amp NE5532 is suitable for pre-amplification?
NE5532 is a high-performance, low-noise dual operational amplifier (dual operational amplifier) integrated circuit. Its outstanding features are: good noise performance (high signal-to-noise ratio), fairly high small signal bandwidth, and ideal transient response characteristics (high conversion rate). So it is very suitable for pre-amplification stage of audio.
What is the difference between the op amp NE5532P and NE5532N?
In fact, there is no difference in function, only the manufacturer is different.
What is the difference between the working voltage of NE5532? How many W is the resistance of the op-amp circuit generally used?
NE5532 is generally used as an audio preamplifier. The proper voltage of NE5532 depends on the input signal; if the input signal is a large dynamic signal, the signal amplitude changes greatly. If the power supply voltage is used too low, the output signal will have clipping distortion. However, ±12V is generally sufficient for audio amplification, and generally does not exceed ±15V. The size of the resistance power has no effect on the sound quality. In theory, the bigger the better, but the higher the power, the more expensive, and the accuracy is often lower, which is wasteful and unnecessary; as a transport and discharge on the road, 0.25W is enough. As the power amplifier drive stage, high voltage is proposed, because the working voltage is high, the output voltage will be large. As a pre-amplifier stage, low voltage is used to reduce operating noise.
