NE5532P Operational Amplifier: Pinout, Datasheet, and Block Diagram

The NE5532P is a high-performance operational amplifier combining excellent dc and ac characteristics. It features very low noise, high output-drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, high slew rate, input-protection diodes, and output short-circuit protection. The NE5532P operational amplifier is compensated internally for unity-gain operation. It has specified maximum limits for equivalent input noise voltage.

Symbol

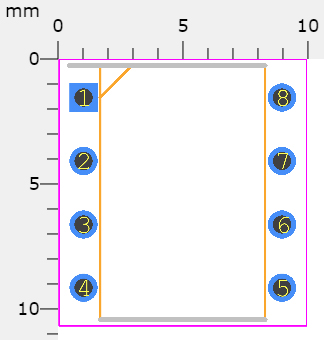

Footprint

3D Model

• Equivalent Input Noise Voltage: 5 nV/√Hz Typ at 1 kHz

• Unity-Gain Bandwidth: 10 MHz Typ

• Common-Mode Rejection Ratio: 100 dB Typ

• High DC Voltage Gain: 100 V/mV Typ

• Peak-to-Peak Output Voltage Swing 26 V Typ With VCC± = ±15 V and RL = 600 Ω

• High Slew Rate: 9 V/μs Typ

Texas Instruments NE5532P technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments NE5532P.

• AV Receivers

• Embedded PCs

• Netbooks

• Video Broadcasting and Infrastructure: Scalable Platforms

• DVD Recorders and Players

• Multichannel Video Transcoders

• Pro Audio Mixers

NE5532P Plastic Dual-in-line Package

As a global semiconductor company operating in 35 countries, Texas Instruments (TI) is first and foremost a reflection of its people. From the TIer who unveiled the first working integrated circuit in 1958 to the more than 30,000 TIers around the world today who design, manufacture and sell analog and embedded processing chips, we are problem-solvers collaborating to change the world through technology.

Download datasheets and manufacturer documentation for Texas Instruments NE5532P.
