Hi, fellas. Welcome to the new post today. The NE5534 are single high-performance low noise operational amplifiers. This article mainly introduces pinout, applications, datasheet, and other detailed information about Texas Instruments NE5534.
NE5534AD
The NE5534 are single high-performance low noise operational amplifiers. it shows better noise performance, improved output drive capability, and considerably higher small-signal and power bandwidths.
This makes NE5534 especially suitable for application in high quality and professional audio equipment, in instrumentation and control circuits, and telephone channel amplifiers.
The op-amps are internally compensated for a gain equal to, or higher than, three. The frequency response can be optimized with an external compensation capacitor for various applications (unity gain amplifier, capacitive load, slew rate, low overshoot, etc.).

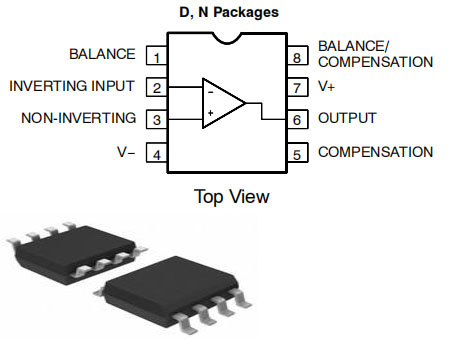

| Pin Number | Pin Name | Description |
| 1 | BALANCE | Balance Pin |
| 2 | INV-INPUT | Inverting Input Pin Of Amplifier |
| 3 | NON-INV-INPUT | Non-Inverting Input Pin Of Amplifier |
| 4 | V- | Negative Power Supply |
| 5 | COMP | Compensation Pin |
| 6 | OUTPUT | Output Pin |
| 7 | V+ | Positive Power Supply |
| 8 | BAL/COMP 2 | Balance/ Compensation Pin 2 |

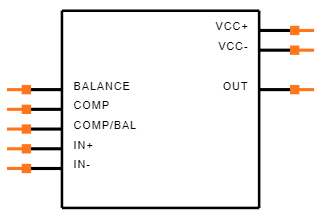

Symbol
Footprint
3D Model
• Small-Signal Bandwidth: 10 MHz
• Output Drive Capability: 600Ω, 10 VRMS at VS = 18 V
• Input Noise Voltage: 4 nV
• DC Voltage Gain: 100000
• AC Voltage Gain: 6000 at 10 kHz
• Power Bandwidth: 200 kHz
• Slew Rate: 13 V/us • Large Supply Voltage Range: ±3.0 to ±20 V
• Pb−Free Packages are Available
Texas Instruments NE5534AD technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments NE5534AD.
ON Semiconductor NE5534AD technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor NE5534AD.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | OBSOLETE (Last Updated: 1 week ago) | |
| Surface Mount | YES | |
| Number of Pins | 8Pins | |
| Operating Temperature (Max.) | 70°C | |
| Published | 2012 | |
| JESD-609 Code | e0 | |
| Pbfree Code | no | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Packing Method | RAIL | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING |
| Product Attribute | Attribute Value | |
|---|---|---|
| Peak Reflow Temperature (Cel) | 240 | |
| Number of Functions | 1Function | |
| Supply Voltage | 15V | |
| Terminal Pitch | 1.27mm | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Pin Count | 8 | |
| Qualification Status | Not Qualified | |
| Power Supplies | +-15V | |
| Temperature Grade | COMMERCIAL | |
| Slew Rate | 13 V/us | |
| Architecture | VOLTAGE-FEEDBACK | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Common Mode Rejection Ratio | 100 dB | |
| Neg Supply Voltage-Nom (Vsup) | -15V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Unity Gain BW-Nom | 10000 kHz | |
| Average Bias Current-Max (IIB) | 2μA | |
| Low-Offset | NO | |
| Frequency Compensation | YES AVCL>=3 | |
| Supply Voltage Limit-Max | 22V | |
| Bias Current-Max (IIB) @25C | 1.5μA | |
| Neg Supply Voltage-Max (Vsup) | -22V | |
| Input Offset Voltage-Max | 5000μV | |
| Voltage Gain-Min | 15000 | |
| Length | 4.9mm | |
| Height Seated (Max) | 1.75mm | |
| Width | 3.9mm | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Contains Lead |
• Audio Equipment
• Instrumentation and Control Circuits
• Telephone Channel Amplifiers
• Medical Equipment
As a global semiconductor company operating in 35 countries, Texas Instruments (TI) is first and foremost a reflection of its people. From the TIer who unveiled the first working integrated circuit in 1958 to the more than 30,000 TIers around the world today who design, manufacture, and sell analog and embedded processing chips, we are problem-solvers collaborating to change the world through technology.
Download datasheets and manufacturer documentation for Texas Instruments NE5534AD.
Download datasheets and manufacturer documentation for NE5534AD
