NEMA23-17-15SD-AMT112S
Inquiry
Min.: 1 Mult.: 1
Quick Links
NEMA23 Description

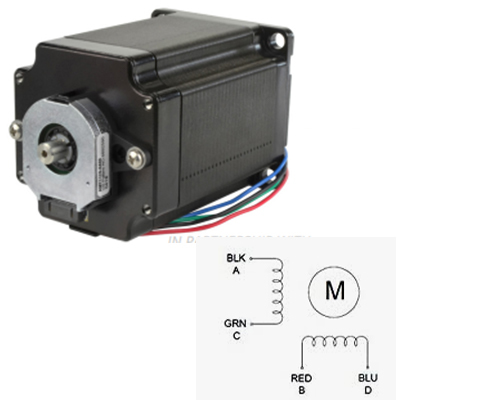

NEMA 23 is a high torque hybrid bipolar stepper motor with a faceplate size of 2.32.3 inch. This motor has a step angle of 1.8 degrees, which means it has 200 steps each revolution and each step covers 1.8 degrees. The motor is equipped with four color-coded wires (Black, Green, Red, and Blue) that are terminated with bare leads. One coil has a black and green wire linked to it, while the other has a red and blue wire connected to it. This motor can be controlled by two H-bridges, although a stepper motor driver is preferred.
NEMA23 Pinout

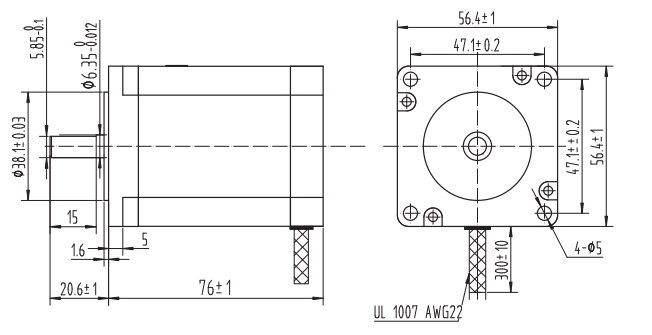

NEMA23 Dimensions
NEMA23 Features
• CUI Devices AMT112S encoder + LIN Engineering stepper motor
• stepper motor with encoder for closed-loop mode when paired with a controller
• small, compact NEMA 23 frame size
• up to 270 oz-in (1.90 N-m) holding torque
• patented capacitive encoder ASIC technology
• incremental resolutions up to 4096 PPR
• resolutions programmable with AMT Viewpoint™ PC software
• digitally set zero position
Specifications
NEMA23-17-15SD-AMT112S Tech Specifications
NEMA23-17-15SD-AMT112S Tech Specifications
CUI Devices NEMA23-17-15SD-AMT112S technical specifications, attributes, parameters and parts with similar specifications to CUI Devices NEMA23-17-15SD-AMT112S.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 17 Weeks | |
| Mounting Hole Spacing | 1.819 (46.20mm) | |
| CoilResistance | 1.2Ohm | |
| Voltage Rated | 24V~80VDC | |
| Operating Temperature | -20°C~50°C | |
| Series | NEMA23-AMT112S | |
| Size / Dimension | Square - 2.252 x 2.252 57.20mmx57.20mm | |
| Part Status | Active |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable | |
| Current Rating (Amps) | 2.1A | |
| Termination Style | Connector | |
| Approval Agency | CE | |
| Accuracy | ±0.2% | |
| Coil Type | Bipolar | |
| Step Angle | 1.8° | |
| Steps per Revolution | 200 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Torque - Holding (oz-in / mNm) | 85 / 600.23 | |
| Features | Integrated Encoder, Flatted Shaft | |
| NEMA Frame Size | 23 | |
| Rotor Inertia | 3.1gcm2 | |
| Diameter - Shaft | 0.250 (6.35mm) | |
| Length - Shaft and Bearing | 0.811 20.60mm | |
| RoHS Status | RoHS Compliant |
How To Use NEMA23?
Only by energizing the coils in a logical order can this motor be made to rotate. A microcontroller or a digital circuit can be used to program this logical sequence.
NEMA23 Applications
1.CNC machines
2.Precise control machines
3.3D printer/prototyping machines (e.g. RepRap)
4.Laser cutters
5.Pick and place machines
Datasheet PDF
NEMA23-17-15SD-AMT112S Documents
NEMA23-17-15SD-AMT112S Documents
Download datasheets and manufacturer documentation for NEMA23-17-15SD-AMT112S
Datasheets
NEMA23-AMT112S Series Datasheet
Frequently Asked Questions
What is NEMA23?
NEMA 23 is a high torque hybrid bipolar stepper motor with a faceplate size of 2.32.3 inch.
What is the recommended operating temperature of the component?
-20°C~50°C.
What is the component’s number of pins?
4.
FAQ
What is NEMA23?
NEMA 23 is a high torque hybrid bipolar stepper motor with a faceplate size of 2.32.3 inch.
What is the recommended operating temperature of the component?
-20°C~50°C.
What is the component’s number of pins?
4.
