MURATA - NFM21PC105B1C3D - Feedthrough Capacitor, Three Terminal, 1 μF, 16 V, 4 A, 0805 [2012 Metric], Surface Mount, ± 20%
120
Feb 18, 2022
Elroy Davy
MURATA - NFM21PC105B1C3D - Feedthrough Capacitor, Three Terminal, 1 µF, 16 V, 4 A, 0805 [2012 Metric], Surface Mount, ± 20%
The NFM21PC105B1C3D is a 4A/16V EMI Suppression Filter. This article is going to introduce applications, dimensions, and more details about NFM21PC105B1C3D.
NFM21PC105B1C3D
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.1501 | $0.15 |
| 10+ | $0.14161 | $1.42 |
| 100+ | $0.13359 | $13.36 |
| 500+ | $0.12603 | $63.02 |
| 1000+ | $0.1189 | $118.9 |
The NFM21PC105B1C3D is a 4A/16V EMI Suppression Filter with SMD filter terminals and a capacitor type three-terminal construction component. EMIFIL® is a capacitor-type chip for large current DC power lines that is appropriate for noise reduction in DC power lines that operate at a reasonably high current.
Murata Electronics NFM21PC105B1C3D technical specifications, attributes, parameters and parts with similar specifications to Murata Electronics NFM21PC105B1C3D.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | IN PRODUCTION (Last Updated: 1 month ago) | |
| Factory Lead Time | 10 Weeks | |
| Mount | PCB, Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 0805 (2012 Metric), 3 PC Pad | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tape & Reel (TR) | |
| Series | EMIFIL®, NFM21 | |
| Size / Dimension | 0.079Lx0.049W 2.00mmx1.25mm | |
| Tolerance | ±20% | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Termination | Flat | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin (Sn) | |
| Additional Feature | C-TYPE CIRCUIT | |
| HTS Code | 8504.50.80.00 | |
| Capacitance | 1μF | |
| Voltage - Rated DC | 16V | |
| Packing Method | TR, PAPER, 7 INCH | |
| Number of Functions | 1Function | |
| Depth | 1.25mm | |
| Current Rating | 4A | |
| Voltage - Rated AC | 16V | |
| Case Code (Metric) | 2012 | |
| Case Code (Imperial) | 0805 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Physical Dimension | L2.0XB1.25XH0.85 (mm)/L0.079XB0.049XH0.033 (inch) | |
| Insulation Resistance | 500MOhm | |
| Voltage | 16V | |
| Max Current Rating | 4A | |
| Max Voltage Rating (DC) | 16V | |
| Filter Type | FEED THROUGH CAPACITOR | |
| DC Resistance (DCR) (Max) | 20mOhm | |
| Height | 850μm | |
| Length | 2mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

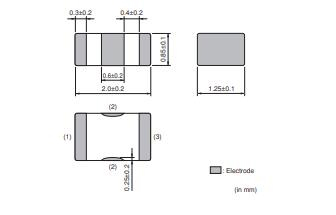

NFM21PC105B1C3D Dimensions
NFM21PC105B1C3D Symbol
NFM21PC105B1C3D Footprint

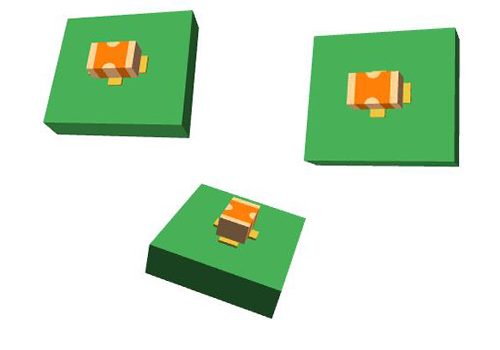

NFM21PC105B1C3D 3D Model
NFM21PC105B1C3D Equivalent Circuit

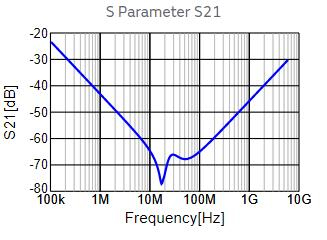

NFM21PC105B1C3D Characteristic Data
Consumer Electronics

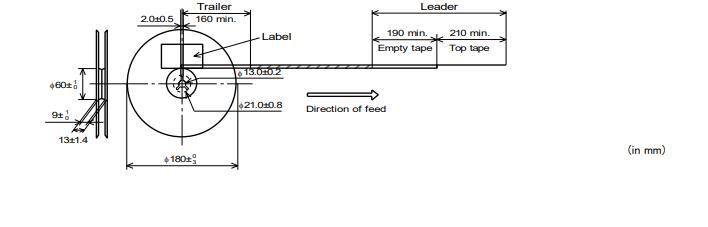

NFM21PC105B1C3D Package information
Murata is a global leader in the design, manufacture, and supply of advanced electronic materials, leading-edge electronic components, and multi-functional, high-density modules. Murata innovations can be found in a wide range of applications from mobile phones to home appliances, and automotive applications to energy management systems and healthcare devices.
Download datasheets and manufacturer documentation for NFM21PC105B1C3D
