NRF24L01 Transceiver: Pinout, Application, Features

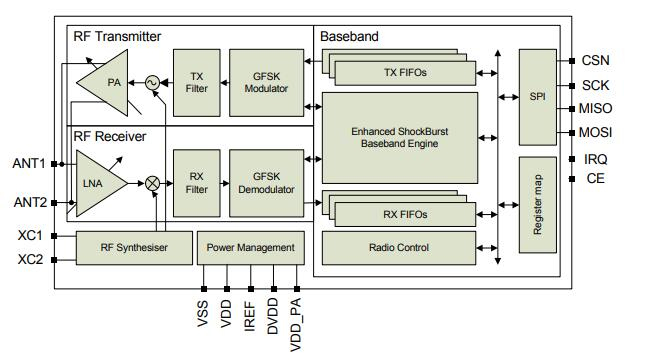

The NRF24L01 is a single chip 2.4GHz transceiver with an embedded baseband protocol engine (Enhanced ShockBurst™), designed for ultra low power wireless applications. The NRF24L01 is designed for operation in the world wide ISM frequency band at 2.400 - 2.4835GHz.

Symbol

Footprint

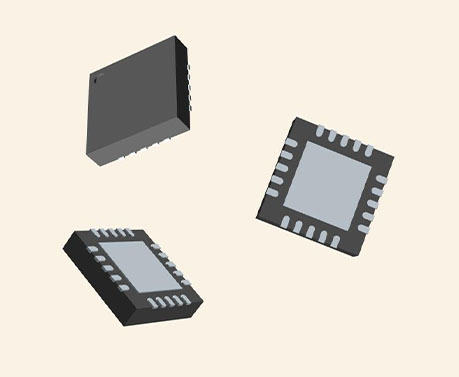

3D Model

• Worldwide 2.4GHz ISM band operation

• Up to 2Mbps on air data rate

• Ultra low power operation

• 11.3mA TX at 0dBm output power

• 12.3mA RX at 2Mbps air data rate

• 900nA in power down

• 22µA in standby-I

• On chip voltage regulator

• 1.9 to 3.6V supply range

• Enhanced ShockBurst™

• Automatic packet handling

• Auto packet transaction handling

• 6 data pipe MultiCeiver™

• Air compatible with nRF2401A, 02, E1 and E2

• Low cost BOM

• ±60ppm 16MHz crystal

• 5V tolerant inputs

• Compact 20-pin 4x4mm QFN package

Nordic Semiconductor ASA NRF24L01 technical specifications, attributes, parameters and parts with similar specifications to Nordic Semiconductor ASA NRF24L01.

• Wireless PC Peripherals

• Mouse, keyboards and remotes

• 3-in-one desktop bundles

• Advanced Media center remote controls

• VoIP headsets

• Game controllers

• Sports watches and sensors

• RF remote controls for consumer electronics

• Home and commercial automation

• Ultra low power sensor networks

• Active RFID

• Asset tracing systems

• Toys

NRF24L01 schematic for RF layouts with single ended 50Ω RF output

Nordic Semiconductor is a fabless semiconductor company specializing in short-range wireless and low-power cellular IoT. Nordic pioneered ultra-low-power wireless and helped develop Bluetooth Low Energy, a widely-adopted wireless technology. Nordic’s reputation is built on the supply of leading-edge wireless technologies and development tools that shield designers from RF complexity.

How to set up NRF24L01 to receive from an NRF2401/NRF2402/NRF24E1/NRF24E2:

1. Use the same CRC configuration as the nRF2401/nRF2402/nRF24E1/nRF24E2

2. Set the PWR_UP and PRIM_RX bit to 1

3. Disable auto acknowledgement on the data pipe that is addressed

4. Use the same address width as the PTX device

5. Use the same frequency channel as the PTX device

6. Select data rate 1Mbps on both NRF24L01 and NRF2401/NRF2402/NRF24E1/NRF24E2

7. Set correct payload width on the data pipe that is addressed

8. Set CE high

How to set up  NRF24L01 to transmit to an nRF2401/nRF24E1:

1. Use the same CRC configuration as the  NRF2401/NRF2402/NRF24E1/NRF24E22

2. Set the PRIM_RX bit to 0

3. Set the Auto Retransmit Count to 0 to disable the auto retransmit functionality

4. Use the same address width as the  NRF2401/NRF2402/NRF24E1/NRF24E2uses

5. Use the same frequency channel as the NRF2401/NRF2402/NRF24E1/NRF24E2uses

6. Select data rate 1Mbps on both  NRF2401/NRF2402/NRF24E1/NRF24E2

7. Set PWR_UP high

8. Clock in a payload that has the same length as the  NRF2401/NRF2402/NRF24E1/NRF24E2 is

configured to receive

9. Pulse CE to transmit the packet
