NRF24L01P is a single chip 2.4ghz transceiver. This article enforces pinout, datasheet, features, applications, and other details about NRF24L01P.
NRF24L01P Transceiver: Datasheet, Pinout and Applications
Rf Transceiver Gfsk 3V 20-PIN QFN Ep T/r
182
Aug 13, 2021
Hilary Delia
NRF24L01P-R
8715In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $4.96749 | $4.97 |
| 10+ | $4.68631 | $46.86 |
| 100+ | $4.42104 | $442.1 |
| 500+ | $4.1708 | $2085.4 |
| 1000+ | $3.93471 | $3934.71 |
Unit Price:$4.96749
Subtotal: $4.97
Quick Links

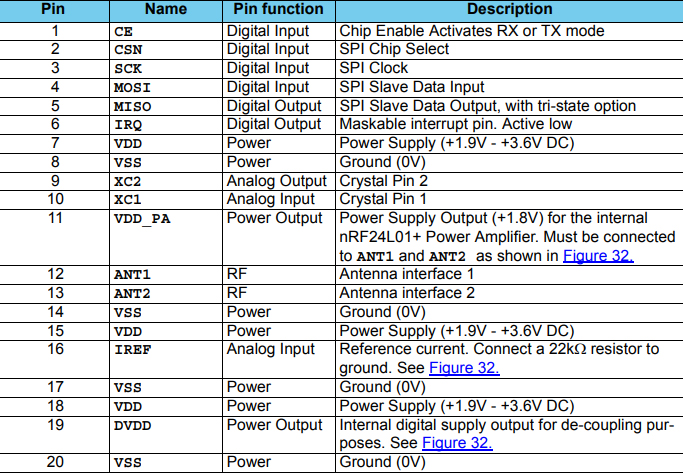

NRF24L01P Pinout
NRF24L01P CAD Model

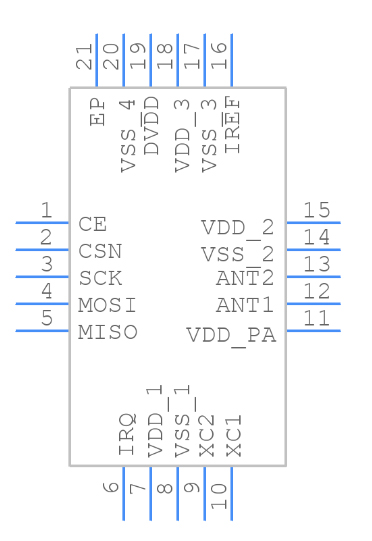

Symbol

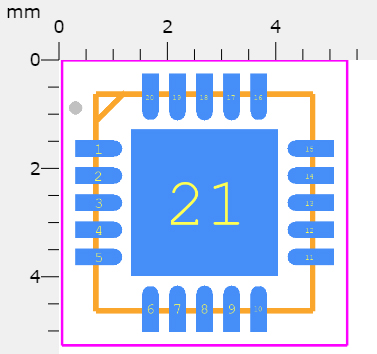

Footprint

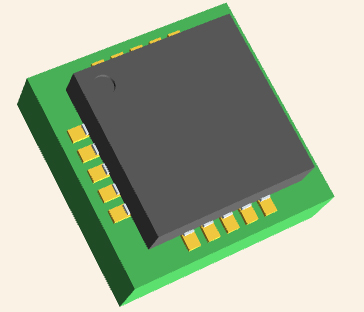

3D Model
NRF24L01P Description
The NRF24L01P is a single-chip 2.4GHz transceiver with an embedded baseband protocol engine (Enhanced ShockBurst™), suitable for ultra-low-power wireless applications. The nRF24L01+ is designed for operation in the worldwide ISM frequency band at 2.400 - 2.4835GHz.
Specifications
Nordic Semiconductor ASA NRF24L01P-R technical specifications, attributes, parameters and parts with similar specifications to Nordic Semiconductor ASA NRF24L01P-R.
NRF24L01P-R Tech Specifications
NRF24L01P-R Tech Specifications
Nordic Semiconductor ASA NRF24L01P-R technical specifications, attributes, parameters and parts with similar specifications to Nordic Semiconductor ASA NRF24L01P-R.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 20 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 20-VFQFN Exposed Pad | |
| Weight | 123.008581mg | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tape & Reel (TR) | |
| Published | 2005 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 20Terminations | |
| Type | TxRx Only |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Finish | Tin (Sn) | |
| HTS Code | 8542.39.00.01 | |
| Voltage - Supply | 1.9V~3.6V | |
| Terminal Position | QUAD | |
| Terminal Form | NO LEAD | |
| Supply Voltage | 3V | |
| Terminal Pitch | 0.5mm | |
| Depth | 4mm | |
| Frequency | 2.4GHz | |
| JESD-30 Code | S-PQCC-N20 | |
| Qualification Status | Not Qualified | |
| Operating Supply Voltage | 3V | |
| Power Supplies | 3V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Supply Current | 12.3mA | |
| Power - Output | 0dBm | |
| RF Family/Standard | General ISM > 1GHZ | |
| Data Rate (Max) | 2Mbps | |
| Serial Interfaces | SPI | |
| Current - Receiving | 12.6mA~13.5mA | |
| Current - Transmitting | 7mA~11.3mA | |
| Modulation | GFSK | |
| Sensitivity (dBm) | -94 dBm | |
| Length | 4mm | |
| RoHS Status | ROHS3 Compliant |

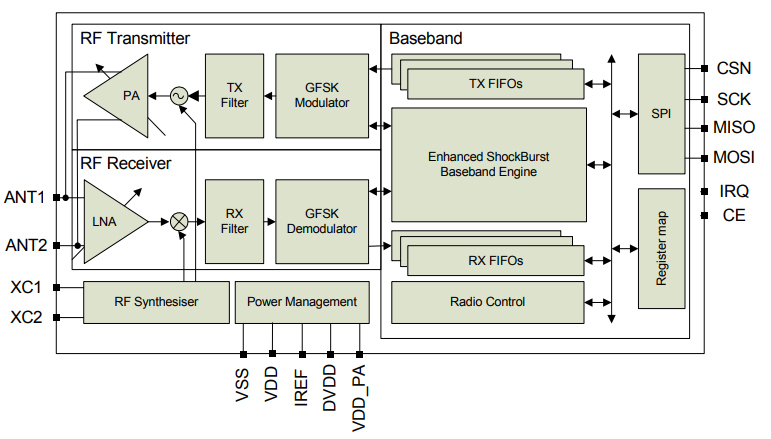

NRF24L01P Block Diagram
NRF24L01P Features
• Worldwide 2.4GHz ISM band operation
• 250kbps, 1Mbps, and 2Mbps on-air data rates
• Ultra low power operation
• 11.3mA TX at 0dBm output power
• 13.5mA RX at 2Mbps air data rate
• 900nA in power down
• 26µA in standby-I
• On-chip voltage regulator
• 1.9 to 3.6V supply range
• Enhanced ShockBurst™
• Automatic packet handling
• Auto packet transaction handling
• 6 data pipe MultiCeiver™
• Drop-in compatibility with nRF24L01
• On-air compatible in 250kbps and 1Mbps with nRF2401A, nRF2402, nRF24E1 and nRF24E2
• Low-cost BOM
• ±60ppm 16MHz crystal
• 5V tolerant inputs
• Compact 20-pin 4x4mm QFN package
NRF24L01P Applications
• Wireless PC Peripherals
• Mouse, keyboards, and remotes
• 3-in-1 desktop bundles
• Advanced Media center remote controls
• VoIP headsets
• Game controllers
• Sports watches and sensors
• RF remote controls for consumer electronics
• Home and commercial automation
• Ultra low power sensor networks
• Active RFID
• Asset tracking systems
• Toys
NRF24L01P Application Circuit

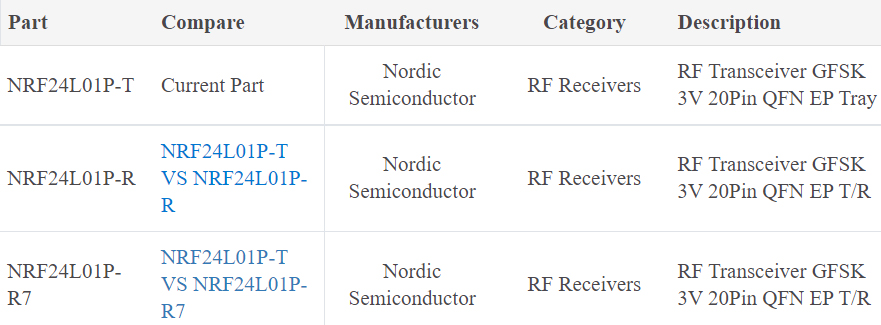

NRF24L01P Alternatives

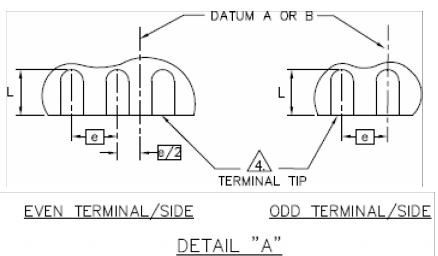

NRF24L01P Package
NRF24L01P Manufacturer
Nordic Semiconductor is a fabless semiconductor company specializing in short-range wireless and low-power cellular IoT. Nordic pioneered ultra-low-power wireless and helped develop Bluetooth Low Energy, a widely-adopted wireless technology. The company’s award-winning Bluetooth LE solutions have made it the market leader, and are complemented by ANT+, Thread, and Zigbee products. Nordic’s reputation is built on the supply of leading-edge wireless technologies and development tools that shield designers from RF complexity. This approach extends to Nordic’s latest technology, cellular IoT. Launched in 2018 after four years of development, this NB-IoT and LTE-M solution leverages cellular infrastructure to extend the IoT.
Datasheet PDF
Download datasheets and manufacturer documentation for Nordic Semiconductor ASA NRF24L01P-R.
NRF24L01P-R Documents
NRF24L01P-R Documents
Download datasheets and manufacturer documentation for NRF24L01P-R
Frequently Asked Questions
What is NRF24L01P?
NRF24L01P is basically a wireless transceiver, which is used to send and receive data by using radio waves. It is a single-chip transceiver module. It uses the SPI protocol for transmitting data. Its data transmission speed is up to 2Mbps. NRF24L01P is normally used in industrial devices and projects for data transmission.
How does NRF24L01P work?
The NRF24L01P transceiver module transmits and receives data on a certain frequency called Channel. This gives us 125 possible channels with 1MHz spacing. So, the module can use 125 different channels which gives a possibility to have a network of 125 independently working modems in one place.
What is NRF24L01P used for?
NRF24L01P is a wireless transceiver module (works on SPI Protocol), which is used for sending and receiving data at an operating radio frequency of 2.4 to 2.5 GHz ISM band.
What is NRF24L01P transceiver module?
The NRF24L01P is a highly integrated, ultra-low-power (ULP) 2Mbps RF transceiver IC for the 2.4GHz ISM (Industrial, Scientific, and Medical) band. They are transceivers which means that each module can transmit and receive data.
FAQ
What is NRF24L01P?
NRF24L01P is basically a wireless transceiver, which is used to send and receive data by using radio waves. It is a single-chip transceiver module. It uses the SPI protocol for transmitting data. Its data transmission speed is up to 2Mbps. NRF24L01P is normally used in industrial devices and projects for data transmission.
How does NRF24L01P work?
The NRF24L01P transceiver module transmits and receives data on a certain frequency called Channel. This gives us 125 possible channels with 1MHz spacing. So, the module can use 125 different channels which gives a possibility to have a network of 125 independently working modems in one place.
What is NRF24L01P used for?
NRF24L01P is a wireless transceiver module (works on SPI Protocol), which is used for sending and receiving data at an operating radio frequency of 2.4 to 2.5 GHz ISM band.
What is NRF24L01P transceiver module?
The NRF24L01P is a highly integrated, ultra-low-power (ULP) 2Mbps RF transceiver IC for the 2.4GHz ISM (Industrial, Scientific, and Medical) band. They are transceivers which means that each module can transmit and receive data.
