The nRF52810 is the third member of the nRF52 Series SoCs. This article will unlock more details about nRF52810.
nRF52810 Multiprotocol SoC : Datasheet, Pinout, Schematic
IC RF TXRX+MCU BLUETOOTH 32WFQFN The nRF52810 is the third member of the nRF52 Series SoCs. This article will unlock more details about nRF52810.
368
Sep 4, 2021
Matthew Longfellow
NRF52810-QCAA-T
7130In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $3.62204 | $3.62 |
| 10+ | $3.41702 | $34.17 |
| 100+ | $3.22361 | $322.36 |
| 500+ | $3.04114 | $1520.57 |
| 1000+ | $2.869 | $2869 |
Unit Price:$3.62204
Subtotal: $3.62
Quick Links
nRF52810 Pinout
nRF52810 CAD Model
Symbol
Symbol

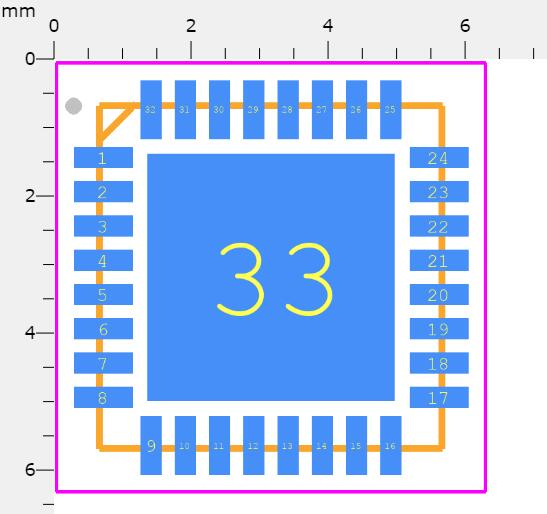

Footprint
Footprint

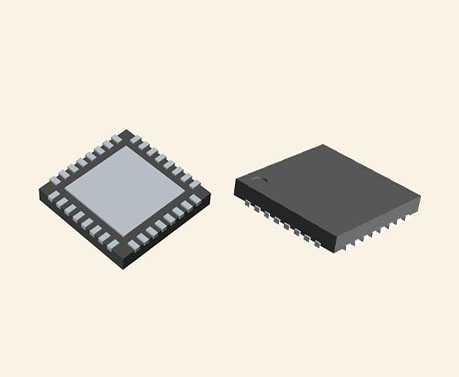

3D Model
3D Model
nRF52810 Description
The nRF52810 High-Performance Multiprotocol SoC are high-performance multiprotocol SoCs that support Bluetooth 5, ANT and 2.4GHz proprietary applications. The nRF52810 SoCs are designed with advanced features like Bluetooth 5 and an ARM Cortex-M4 CPU, making them ideal for low-cost Bluetooth low energy applications. The nRF52810 series offers a broad selection of features, memory variants and small-footprint package options.
Specifications
Nordic Semiconductor ASA NRF52810-QCAA-T technical specifications, attributes, parameters and parts with similar specifications to Nordic Semiconductor ASA NRF52810-QCAA-T.
NRF52810-QCAA-T Tech Specifications
NRF52810-QCAA-T Tech Specifications
Nordic Semiconductor ASA NRF52810-QCAA-T technical specifications, attributes, parameters and parts with similar specifications to Nordic Semiconductor ASA NRF52810-QCAA-T.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 20 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 32-VFQFN Exposed Pad | |
| Surface Mount | YES | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tray | |
| Published | 2017 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Number of Terminations | 32Terminations | |
| Type | TxRx + MCU |
| Product Attribute | Attribute Value | |
|---|---|---|
| HTS Code | 8542.31.00.01 | |
| Voltage - Supply | 1.7V~3.6V | |
| Terminal Position | QUAD | |
| Terminal Form | NO LEAD | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Supply Voltage | 3V | |
| Terminal Pitch | 0.5mm | |
| Frequency | 2.4GHz | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Protocol | Bluetooth v5.0 | |
| Power - Output | 4dBm |
| Product Attribute | Attribute Value | |
|---|---|---|
| RF Family/Standard | Bluetooth | |
| Sensitivity | -96dBm | |
| Data Rate (Max) | 2Mbps | |
| Serial Interfaces | I2C, UART | |
| Current - Receiving | 4.6mA | |
| Current - Transmitting | 4.6mA~25mA | |
| GPIO | 32 | |
| Length | 5mm | |
| Height Seated (Max) | 0.95mm | |
| Width | 5mm | |
| RoHS Status | Non-RoHS Compliant |
nRF52810 Features
• Bluetooth 5 ready multi-protocol radio
• Bluetooth 5 datarate support 2Mbps, 1Mbps
• Supports Bluetooth 5 Advertising Extensions
• ARM® Cortex-M4 @ 64MHz
• 192kB flash and 24kB RAM
• Software stacks available as download
• Programmable output power +4dBm to -20dBm
• -96dBm sensitivity for Bluetooth low energy (1Mbps)
• -93dBm sensitivity for Bluetooth 5 (2Mbps)
• On-air compatible with nRF52, nRF51 and nRF24 SoCs
• Supply voltage range
• Programmable Peripheral Interconnect - PPI
• Full range of interfaces SPI/2-wire/UARTE
• High speed SPI 8MHz
• Easy DMA for all digital interfaces
• 12 bit/200ksps ADC
• On-chip DC-DC buck converter
• Quadrature demodulator
• On-chip balun with 50Ω single-ended output
nRF52810 Block Diagram
RF52810 Application
• Network connectivity processor
• Smart RF remote controls
• PC peripherals
• Medical sensors
• Fitness sensors
• Toys
• Smart home sensors and actuators
• Logistics and tagging
• Airfuel wireless charging
nRF52810 Schematic
nrf52810 Schematic-QCAA QFN32 with internal LDO regulator setup
nrf52810 Schematic-QCAA QFN32 with DC/DC regulator setup
nRF52810 vs. Nrf52832
The main differences between the nRF52810 and the nRF52832 are the following:
-
NFC peripheral has been removed on the nRF52810
-
Flash reduced from 256kB to 192kB and RAM reduced from 32kB to 24kB
-
Number of SPI/TWI Master peripherals reduced from 3 to 2 ( 1 x SPI Master or Slave + 1 x TWI Master or Slave)
-
The number of PWM channels reduced from 12 to 4
-
Low Power Comparator has been removed
-
The number of 32-bit 16MHz Timers reduced from 5 to 3
-
The number of 32.768kHz RTCs reduced from 3 to 2
-
The number of GPIOTE channels reduced from 8 to 4
-
FPU (Floating Point Unit) removed.
-
Cache removed
nRF52810 Package
nRF52810 Manufacturer
Nordic Semiconductor is a Norwegian company listed on the Oslo stock exchange (OSX: NOD). Our headquarters are in Trondheim, Norway. Click below for share performance, reports, stock exchange notices, investor news and events.
Datasheet PDF
Download datasheets and manufacturer documentation for Nordic Semiconductor ASA NRF52810-QCAA-T.
NRF52810-QCAA-T Documents
NRF52810-QCAA-T Documents
Download datasheets and manufacturer documentation for NRF52810-QCAA-T
Frequently Asked Questions
What is nRF52810?
The nRF52810 is the third member of the nRF52 Series SoCs. It features a powerful CPU (ARM Cortex-M4), and together with the nRF52840 and nRF52832, it completes a lineup of Nordic’s Bluetooth 5 ready devices that together offer the full spectrum of possibilities when designing Bluetooth® 5 into your products.
What difference is between nRF52810 and nRF52832?
The main differences between the nRF52810 and the nRF52832 are the following
• NFC peripheral has been removed on the nRF52810
• Flash reduced from 256kB to 192kB and RAM reduced from 32kB to 24kB.
• Number of SPI/TWI Master peripherals reduced from 3 to 2 ( 1 x SPI Master or Slave + 1 x TWI Master or Slave)
• Number of PWM channels reduced from 12 to 4.
• I2S Peripheral has been removed.
• Low Power Comparator has been removed
• Number of 32-bit 16MHz Timers reduced from 5 to 3
• Number of 32.768kHz RTCs reduced from 3 to 2.
• The number of GPIOTE channels reduced from 8 to 4.
• FPU (Floating Point Unit) removed.
• Cache removed
What kind of package does the Nrf52810 have?
Its package is variants:
• QFN48 package, 6 x 6 mm
• QFN32 package, 5 x 5 mm
• WLCSP package, 2.482 x 2.464 mm
What is nRF52 Series SoCs?
Nordic Semiconductor nRF52 Series SoCs run at 64MHz with a 215 EEMBC Coremark® score, 90 Coremark®/mA, 39µA/MHz (flash) and 30µA/MHz (RAM). The nRF52 Series are built for speed to carry out increasingly complex tasks in the shortest possible time and return to sleep, conserving precious battery power. They have a Cortex-M4F processor and are the most capable Bluetooth Smart SoCs on the market.
FAQ
What is nRF52810?
The nRF52810 is the third member of the nRF52 Series SoCs. It features a powerful CPU (ARM Cortex-M4), and together with the nRF52840 and nRF52832, it completes a lineup of Nordic’s Bluetooth 5 ready devices that together offer the full spectrum of possibilities when designing Bluetooth® 5 into your products.
What difference is between nRF52810 and nRF52832?
The main differences between the nRF52810 and the nRF52832 are the following
• NFC peripheral has been removed on the nRF52810
• Flash reduced from 256kB to 192kB and RAM reduced from 32kB to 24kB.
• Number of SPI/TWI Master peripherals reduced from 3 to 2 ( 1 x SPI Master or Slave + 1 x TWI Master or Slave)
• Number of PWM channels reduced from 12 to 4.
• I2S Peripheral has been removed.
• Low Power Comparator has been removed
• Number of 32-bit 16MHz Timers reduced from 5 to 3
• Number of 32.768kHz RTCs reduced from 3 to 2.
• The number of GPIOTE channels reduced from 8 to 4.
• FPU (Floating Point Unit) removed.
• Cache removed
What kind of package does the Nrf52810 have?
Its package is variants:
• QFN48 package, 6 x 6 mm
• QFN32 package, 5 x 5 mm
• WLCSP package, 2.482 x 2.464 mm
What is nRF52 Series SoCs?
Nordic Semiconductor nRF52 Series SoCs run at 64MHz with a 215 EEMBC Coremark® score, 90 Coremark®/mA, 39µA/MHz (flash) and 30µA/MHz (RAM). The nRF52 Series are built for speed to carry out increasingly complex tasks in the shortest possible time and return to sleep, conserving precious battery power. They have a Cortex-M4F processor and are the most capable Bluetooth Smart SoCs on the market.
