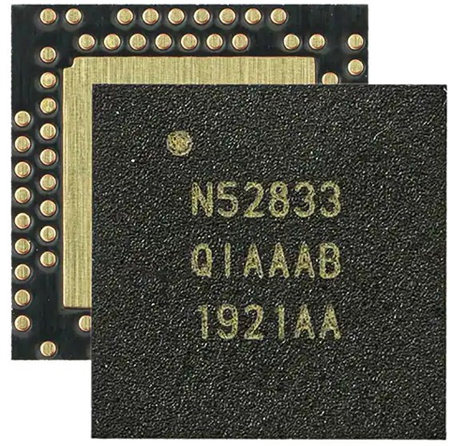

NRF52833 RF Transceiver Bluetooth 2.4GHz 73-VFQ: Datasheet, Pinout, and nRf52833 vs nRF52840

The nRF52833 is a low-power multiprotocol SoC with a Bluetooth 5.1 Direction Finding radio that can operate in a wide temperature range of -40°C to 105°C. It supports Bluetooth 5.1, Bluetooth mesh, 802.15.4, Thread, Zigbee, and proprietary 2.4 GHz protocols, as well as 802.15.4, Thread, Zigbee, and proprietary 2.4 GHz protocols.

The nRF52833 is the fifth member of the nRF52 Series SoC family, and it is based on a 64 MHz Arm Cortex-M4 with FPU, with 512 KB flash and 128 KB RAM memory for higher-value applications. The nRF52833 is a suitable device for a wide range of commercial and industrial applications, including professional lighting and asset monitoring, thanks to its expanded temperature range up to 105°C, a significant quantity of memory, and dynamic multiprotocol compatibility.  A 1:4 RAM to Flash ratio and +8 dBm output power make the nRF52833 suitable for advanced wearables or smart home applications where robust coverage is important.

• 64 MHz Arm® Cortex-M4 with FPU

• 512 KB Flash + 128 KB RAM

• Bluetooth 5.1 radio

  --Direction Finding

  --Long Range

  --Bluetooth mesh

  --+8 dBm TX power

  ---95 dBm sensitivity (1 Mbps)

  --4.8 mA in TX (0 dBm)

  --4.6 mA in RX (1 Mbps)

  --Integrated balun with single-ended output

• IEEE 802.15.4 radio support

  --Thread

  --Zigbee

• Extended temperature range: -40°C to 105°C

• 1.7-5.5 V supply voltage range

• Integrated DC-DC regulator

• Full-speed 12 Mbps USB

• NFC-A tag

• 128 bit AES/ECB/CCM/AAR accelerator

• 12-bit 200 ksps ADC

• High speed 32 MHz SPI

• Full range of digital interfaces with EasyDMA

NRF52833 Pinout

NRF52833 Block Diagram

Nordic Semiconductor ASA NRF52833-QIAA-R technical specifications, attributes, parameters and parts with similar specifications to Nordic Semiconductor ASA NRF52833-QIAA-R.

NRF52833 Absolute maximum ratings

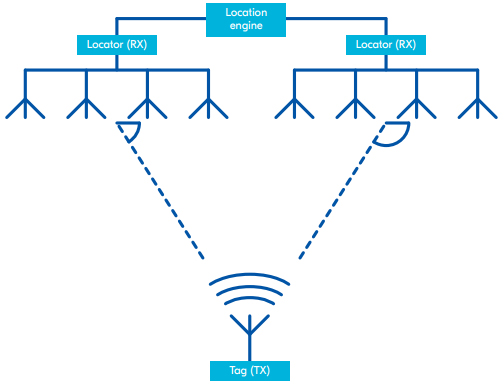

A radio capable of Bluetooth® Direction Finding is included in the nRF52833. With Direction Finding, positioning solutions can rely on not just the received signal strength indicator (RSSI), but also the signal's true direction. This enhances precision and expands the range of applications available in this market. The angle of arrival (AoA), which calculates the direction of the received signal, and angle of departure (AoD), which calculates the direction of the transmitted signal, are the two sorts of methods for detecting direction.

• Professional lighting

• Asset tracking

• Wayfinding

• Multiprotocol devices

• Mesh networks

• Advanced wearables

• Smart home

• HID/Gaming/VR

• Toys

• Sports and fitness

Nordic Semiconductor is a fabless semiconductor company specializing in short-range wireless and low-power cellular IoT. Nordic pioneered ultra-low-power wireless and helped develop Bluetooth Low Energy, a widely-adopted wireless technology. The company’s award-winning Bluetooth LE solutions have made it the market leader, and are complemented by ANT+, Thread, and Zigbee products. Nordic’s reputation is built on the supply of leading-edge wireless technologies and development tools that shield designers from RF complexity. This approach extends to Nordic’s latest technology, cellular IoT. Launched in 2018 after four years of development, this NB-IoT and LTE-M solution leverages cellular infrastructure to extend the IoT.
