NRF52840 Bluetooth? 5 Evaluation Board[Video]: Datasheet, Nrf52832 VS Nrf52840, and Applications

The nRF52840 is an advanced, highly flexible single-chip solution for today’s increasingly demanding ULP wireless applications for connected devices on our person, connected living environments, and the IoT at large. It is designed to be ready for the major feature advancements of Bluetooth® 5 and takes advantage of Bluetooth 5’s increased performance capabilities which include long-range and high throughput modes. Inherent industry-grade security is essential in today’s applications. The nRF52840 adds best-in-class security for CortexTM-M Series with an on-chip ARM® CryptoCell cryptographic accelerator.

The nRF52840 employs the same hardware and software architecture as existing nRF52 Series SoCs. At its core is an ARM Cortex-M4F processor allowing quicker and more efficient computation of complex functions for DSP and those requiring floating-point math.

• Bluetooth 5 ready multi-protocol radio

• Bluetooth 5 datarate support: 2Mbs, 1Mbs, 500kbs, 125kbs

• 32-bit ARM Cortex-M4F @ 64MHz

• High-speed 2Mbs data-rate

• Up to 111 dB link budget for Bluetooth long-range mode

• Full-speed 12Mbs USB controller

• NFC-A on-chip

• Software stacks available as downloads

• Application development independent of the protocol stack

• Programmable output power from +8dBm to -20dBm

• -96dBm Sensitivity for Bluetooth low energy

• On-air compatible with nRF51, nRF24L, and nRF24AP Series

• ARM Cryptocell CC310 cryptographic accelerator

• RSSI

• Wide supply voltage range +5.5v to 1.7v

• Full selection of interfaces SPI/UART/PWM

• Programmable Peripheral Interface - PPI

• High-speed SPI interface 32MHz

• Quad SPI interface 32MHz

• EasyDMA for all digital interfaces

• RAM mapped FIFO using EasyDMA

• 12bit/200K SPS ADC

• 128 bit AES/ECB/CCM/AAR co-processor

• Single-ended antenna output (on-chip balun)

• On-chip DC-DC buck converter

• Quadrature demodulator

• Regulated supply for external components up to 25mA

NRF52840 Drawings

NRF52840 Block Diagram

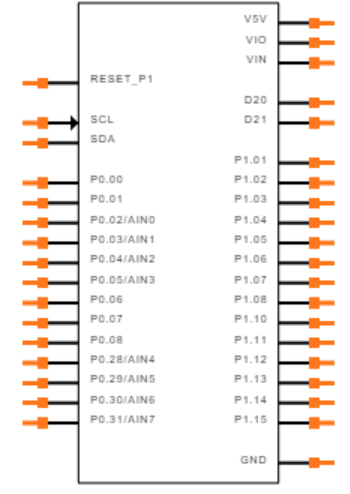

NRF52840 Symbol

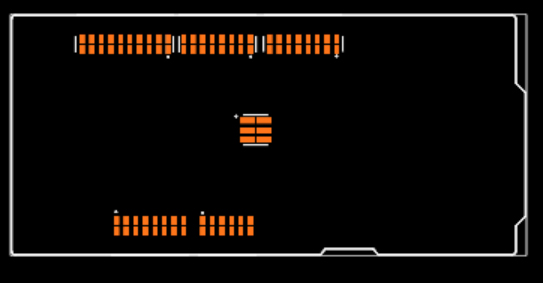

NRF52840 Footprint

• Advanced wearables

- Connected watches

- Advanced personal fitness devices

- Wearables with wireless payment

- Connected Health

- Virtual/Augmented Reality applications

• IoT

- Smart Home sensors and controllers

- Industrial IoT sensors and controllers

• Interactive entertainment devices

- Advanced remote controls

- Gaming controller

Nordic Semiconductor is a fabless semiconductor business that focuses on short-range wireless and low-power cellular IoT applications. Nordic developed Bluetooth Low Energy, a widely used wireless technology, and pioneered ultra-low-power wireless. The company's award-winning Bluetooth LE solutions have propelled it to the top of the industry, and ANT+, Thread, and Zigbee products round out the offering. Nordic's reputation is built on providing cutting-edge wireless technology and development tools that protect designers from the complexities of RF. This philosophy is carried over to Nordic's newest technology, cellular IoT. This NB-IoT and LTE-M solution, which was launched in 2018 after four years of research, uses cellular infrastructure to extend the IoT.
