Unbox and get your Nordic nRF9160 DK up and running
NORDIC SEMICONDUCTOR - NRF9160-DK - Development Kit, Nrf9160 Wireless Module. LTE-M, Bluetooth, IoT, 700MHz To 2.2GHz
The nRF9160 DK is a low-cost, pre-certified single-board development kit for the nRF9160 System-in-Package (SiP) for LTE-M and NB-IoT applications. This article is going to talk about the features, applications, and more detailed information about NRF9160.
NRF9160-DK
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $162.84487 | $162.84 |
| 10+ | $153.62724 | $1536.27 |
| 100+ | $144.93136 | $14493.14 |
| 500+ | $136.7277 | $68363.85 |
| 1000+ | $128.98839 | $128988.39 |
The nRF9160 DK is a low-cost, pre-certified single-board development kit for the nRF9160 System-in-Package (SiP) for LTE-M and NB-IoT applications. It also comes with an nRF52840 board controller, which can be used to build a Bluetooth® Low Energy (LE) gateway, for example. It has a dedicated LTE-M and NB-IoT antenna that can operate globally and supports a wide range of bands. The certification coverage of the nRF9160 DK is the same as that of the nRF9160 SiP.
To support both plug-in and soldered (e)SIMs, the nRF9160 DK features a nano/4FF SIM card slot as well as an MFF2 SIM footprint. It comes with an iBasis sim card with global coverage and 10 MB of data preloaded.

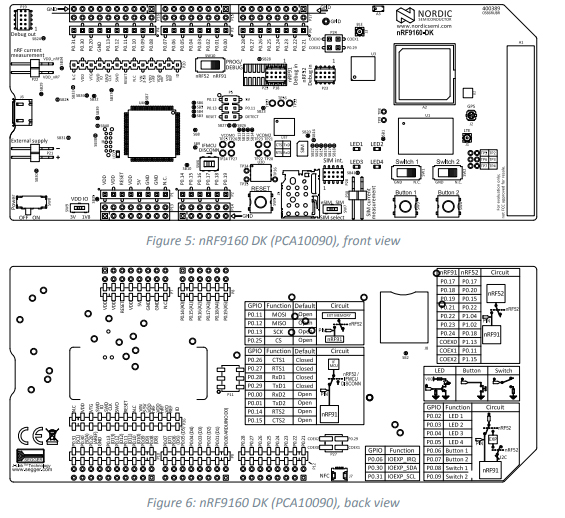

NRF9160 DK hardware drawings

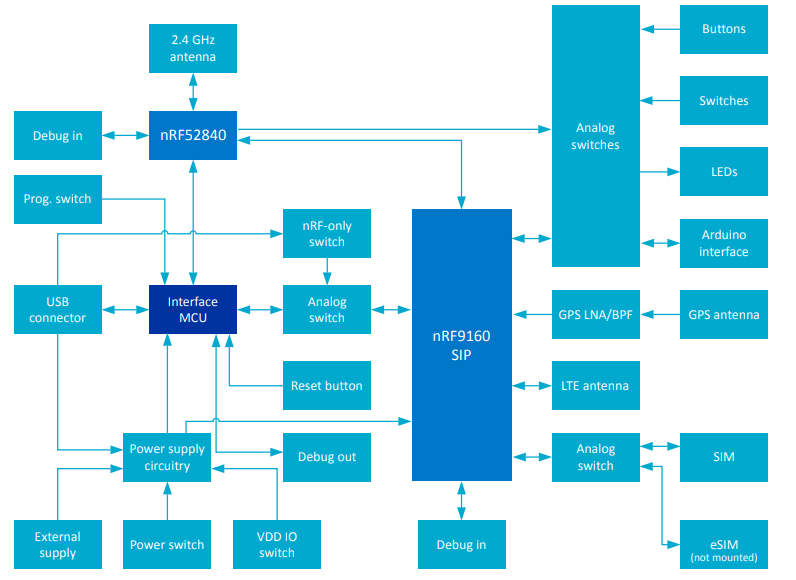

NRF9160 Block Diagram
Nordic Semiconductor ASA NRF9160-DK technical specifications, attributes, parameters and parts with similar specifications to Nordic Semiconductor ASA NRF9160-DK.
Nordic Semiconductor ASA NRF9160-DK technical specifications, attributes, parameters and parts with similar specifications to Nordic Semiconductor ASA NRF9160-DK.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 20 Weeks | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Type | Transceiver | |
| Frequency | 700MHz~2.2GHz | |
| Supplied Contents | Board(s) |
| Product Attribute | Attribute Value | |
|---|---|---|
| RoHS Status | ROHS3 Compliant |
The modem firmware includes the physical layer, LTE stack layers L1-L3, IPv4/IPv6, TCP/UDP, and TLS/DTLS. The application processor interfaces with the LTE modem via BSD secure sockets APIs, and it houses the application layer protocol, such as CoAP, MQTT, HTTP(S), or LWM2M, as well as the user application.
The nRF9160 LTE modem accepts both SIM and eSIM cards, and can be soldered or plugged in. It charges the SIM card and conducts all communication on its own.
| Interface | Controller | Driver/Component |
| ADC | on-chip | adc |
| CLOCK | on-chip | clock_control |
| FLASH | on-chip | flash |
| GPIO | on-chip | gpio |
| I2C(M) | on-chip | i2c |
| MPU | on-chip | arch/arm |
| NVIC | on-chip | arch/arm |
| PWM | on-chip | pwm |
| RTC | on-chip | system clock |
| RTT | Segger | console |
| SPI(M/S) | on-chip | spi |
| SPU | on-chip | system protection |
| UARTE | on-chip | serial |
| WDT | on-chip | watchdog |
Logistics and asset tracking
Smart city & smart agriculture
Predictive maintenance & industrial
Wearables & medical
Nordic Semiconductor is a fabless semiconductor business that focuses on short-range wireless and low-power cellular IoT applications. Nordic developed Bluetooth Low Energy, a widely used wireless technology, and pioneered ultra-low-power wireless. The company's award-winning Bluetooth LE solutions have propelled it to the top of the industry, and ANT+, Thread, and Zigbee products round out the offering. Nordic's reputation is built on providing cutting-edge wireless technology and development tools that protect designers from the complexities of RF. This philosophy is carried over to Nordic's newest technology, cellular IoT. This NB-IoT and LTE-M solution, which was launched in 2018 after four years of research, uses cellular infrastructure to extend the IoT.
Download datasheets and manufacturer documentation for NRF9160-DK
