NTE987 is a quad, low-power op-amp. This article mainly covers pinout, datasheet, applications, equivalents, and other details about NTE987. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and Ics in stock. Welcome RFQ!
215
Sep 8, 2021
Esther Ferguson
What is an op amp? Operational Amplifier tutorial & super spy microphone circuit
NTE987 is a quad, low-power op-amp. This article mainly covers pinout, datasheet, applications, equivalents, and other details about NTE987. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and Ics in stock. Welcome RFQ!
NTE987

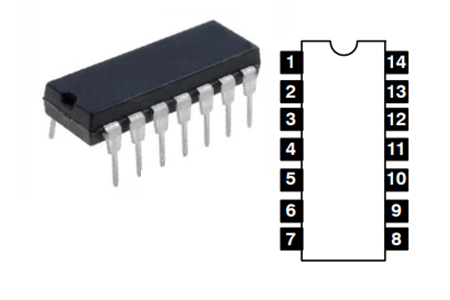

| Pin Number | Pin Name | Description |
| 1 | OUTPUT1 | The output of Op-Amp 1 |
| 2 | INPUT1- | Inverting Input of Op-Amp 1 |
| 3 | INPUT1+ | Non-Inverting Input of Op-Amp 1 |
| 4 | VCC | Positive Supply Voltage |
| 5 | INPUT2+ | Non-Inverting Input of Op-Amp 2 |
| 6 | INPUT2- | Inverting Input of Op-Amp 2 |
| 7 | OUTPUT2 | The output of Op-Amp 2 |
| 8 | OUTPUT3 | The output of Op-Amp 3 |
| 9 | INPUT3- | Inverting Input of Op-Amp 3 |
| 10 | INPUT3+ | Non-Inverting Input of Op-Amp 3 |
| 11 | VEE, GND | Ground or Negative Supply Voltage |
| 12 | INPUT4+ | Non-Inverting Input of Op-Amp 4 |
| 13 | INPUT4- | Inverting Input of Op-Amp 4 |
| 14 | OUTPUT4 | The output of Op-Amp 4 |
Footprint
The NTE987 is a cost quad operational amplifier with true differential inputs. These have several distinct advantages over standard operational amplifier types in single supply applications. The quad amplifier can operate at supply voltages as low as 3V or as high as 32V with quiescent currents about one-fifth of those associated with the NTE941 (on a per amplifier basis).
The common-mode input range includes the negative supply, thereby eliminating the necessity for external biasing components in many applications. The output voltage range also includes the negative power supply voltage.
NTE Electronics, Inc. NTE987 technical specifications, attributes, parameters and parts with similar specifications to NTE Electronics, Inc. NTE987.
NTE Electronics, Inc. NTE987 technical specifications, attributes, parameters and parts with similar specifications to NTE Electronics, Inc. NTE987.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Package / Case | DIP | |
| Number of Pins | 14Pins | |
| Weight | 72.574779g | |
| ECCN Code | EAR99 | |
| Max Operating Temperature | 70°C | |
| Min Operating Temperature | 0°C | |
| Terminal Position | DUAL | |
| Number of Functions | 4Functions | |
| Supply Voltage | 5V | |
| Pin Count | 14 | |
| Qualification Status | Not Qualified | |
| Temperature Grade | COMMERCIAL | |
| Max Supply Voltage | 32V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Min Supply Voltage | 3V | |
| Nominal Supply Current | 3mA | |
| Current - Output | 40mA | |
| Architecture | VOLTAGE-FEEDBACK | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Common Mode Rejection Ratio | 65 dB | |
| Current - Input Bias | -90nA | |
| Max Input Voltage | 28.3V | |
| Input Offset Voltage (Vos) | 2mV | |
| Average Bias Current-Max (IIB) | 0.5μA | |
| Power Supply Rejection Ratio (PSRR) | 65dB | |
| Low-Offset | NO | |
| Frequency Compensation | YES | |
| Max Dual Supply Voltage | 16V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Low-Bias | NO | |
| Micropower | YES | |
| Min Dual Supply Voltage | 1.5V | |
| Bias Current-Max (IIB) @25C | 0.25μA | |
| Programmable Power | NO | |
| Wideband | NO | |
| Voltage Gain-Min | 15000 | |
| Number of Amplifiers | 4Amplifiers | |
| Height | 12.7mm | |
| Length | 19.95mm | |
| Width | 76.2mm | |
| REACH SVHC | Unknown | |
| RoHS Status | RoHS Compliant |
Available in 14−Lead DIP (NTE987) and Surface Mount, SOIC−14 (NTE987SM)
Short Circuit Protected Outputs
True Differential Input Stage
Single Supply Operation: 3V to 32V
Four Amplifiers per Package
Internally Compensated
Common Mode Range Extends to Negative Supply
Industry Standard Pin−Outs
Transducer Amplifiers
Filter circuits, Voltage followers
Integrator, Differentiator, Summer, adder, Voltage follower, etc.
DC gain blocks
Comparators (Loop control & regulation)
