EMITTER IR 935NM 100MA TO-46
The OP130 is a hermetic infrared diode in a TO-46 package. This article enforces datasheet, features, specifications, and other details about OP132.
OP132 Hermetic Infrared Diode: Datasheet, Specifications and Applications
EMITTER IR 935NM 100MA TO-46 The OP130 is a hermetic infrared diode in a TO-46 package.
39
Jul 31, 2021
Tony Jack
OP132
10000In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.94542 | $2.95 |
| 10+ | $2.77869 | $27.79 |
| 100+ | $2.62141 | $262.14 |
| 500+ | $2.47303 | $1236.52 |
| 1000+ | $2.33305 | $2333.05 |
Unit Price:$2.94542
Subtotal: $2.95
Quick Links
OP132 Description
The OP130 is a 935 nm gallium arsenide (GaAs) infrared LED mounted in a hermetically sealed TO-46 package that provides an enhanced temperature range with a variety of power ranges. The TO-46 housing also offers high power dissipation and superior protection for hostile environments.
OP132 CAD Model

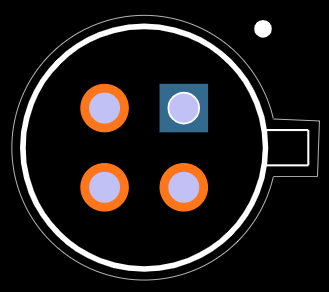

Footprint
OP132 Features
• TO-46 hermetically sealed package
• Focused and non-focused optical light pattern
• Enhanced temperature range
• Mechanically and spectrally matched to other OPTEK devices
• Choice of power ranges
• Choice of narrow or wide irradiance pattern
Specifications
TT Electronics/Optek Technology OP132 technical specifications, attributes, parameters and parts with similar specifications to TT Electronics/Optek Technology OP132.
OP132 Tech Specifications
OP132 Tech Specifications
TT Electronics/Optek Technology OP132 technical specifications, attributes, parameters and parts with similar specifications to TT Electronics/Optek Technology OP132.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 8 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-46-2 Lens Top Metal Can | |
| Number of Pins | 2Pins | |
| Operating Temperature | -65°C~125°C TA | |
| Packaging | Bulk | |
| Published | 1997 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Type | Infrared (IR) | |
| Max Operating Temperature | 125°C | |
| Min Operating Temperature | -65°C | |
| Power Rating | 200mW | |
| Orientation | Top View | |
| Power Dissipation | 200mW | |
| Voltage - Forward (Vf) (Typ) | 1.75V | |
| Viewing Angle | 18° | |
| Forward Current | 100mA | |
| Lens Style | Dome |
| Product Attribute | Attribute Value | |
|---|---|---|
| Rise Time | 1μs | |
| Forward Voltage | 1.75V | |
| Fall Time (Typ) | 500 ns | |
| Current - DC Forward (If) (Max) | 100mA | |
| Peak Wavelength | 935 nm | |
| Radiant Intensity (Ie) Min @ If | 4mW/cm2 @ 100mA | |
| REACH SVHC | No SVHC | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |
OP132 Applications
• Non-contact reflective object sensor
• Assembly line automation
• Machine automation
• Machine safety
• End of travel sensor

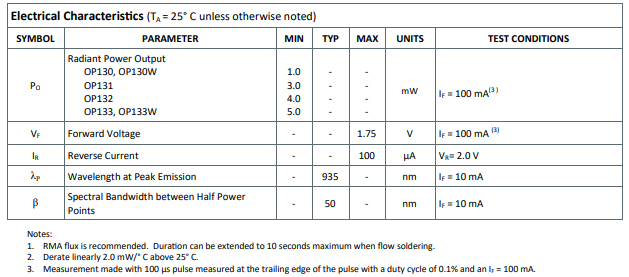

OP132 Electrical Characteristics

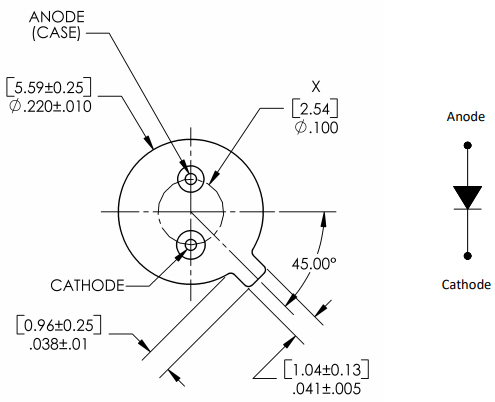

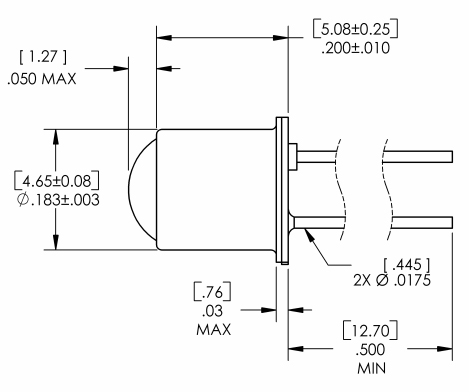

OP132 Dimension
OP132 Manufacturer
TT Electronics’ Optek brand designs and manufacturers innovative optoelectronic solutions for sensing and illumination applications. Our capabilities also include the design and manufacture of standard and application-specific lighting components and assemblies for applications in signage, entertainment, exterior and interior lighting, automotive and high-reliability applications. TT Electronics is a global provider of engineered electronics for performance-critical applications. With nearly 5,000 staff members operating from 29 key locations around the world, TT designs and manufactures a wide range of electronics for sensing, power management, and connectivity for application in the industrial, medical, aerospace, and defense, and transportation sectors.
Datasheet PDF
Download datasheets and manufacturer documentation for TT Electronics/Optek Technology OP132.
OP132 Documents
OP132 Documents
Download datasheets and manufacturer documentation for OP132
Frequently Asked Questions
What is the principle of operation of infrared diodes?
Electronic components called infrared diodes transform electrical signals into infrared light signals (a kind of invisible light). The infrared judge diode receives a set of encoded electrical signals, converts the fluctuating electrical signals into fluctuating infrared light signals (pulse signals), and transmits them; the infrared receiving diode receives this set of pulse signals, converts them into fluctuating infrared light signals (pulse signals), and transmits them.
What are OP132 infrared diodes used for?
OP132 infrared diodes are mainly used in color TV, video recorder, DVD player, audio device, air conditioner control panel, game console, coin machine, remote control, infrared camera, electronic instrument, electric meter, water meter, various security equipment, various infrared remote control product systems.
FAQ
What is the principle of operation of infrared diodes?
Electronic components called infrared diodes transform electrical signals into infrared light signals (a kind of invisible light). The infrared judge diode receives a set of encoded electrical signals, converts the fluctuating electrical signals into fluctuating infrared light signals (pulse signals), and transmits them; the infrared receiving diode receives this set of pulse signals, converts them into fluctuating infrared light signals (pulse signals), and transmits them.
What are OP132 infrared diodes used for?
OP132 infrared diodes are mainly used in color TV, video recorder, DVD player, audio device, air conditioner control panel, game console, coin machine, remote control, infrared camera, electronic instrument, electric meter, water meter, various security equipment, various infrared remote control product systems.
