OP249 Dual Op-Amp: Pinout, Applications and Datasheet

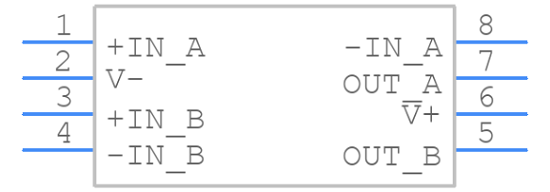

PCB Symbol

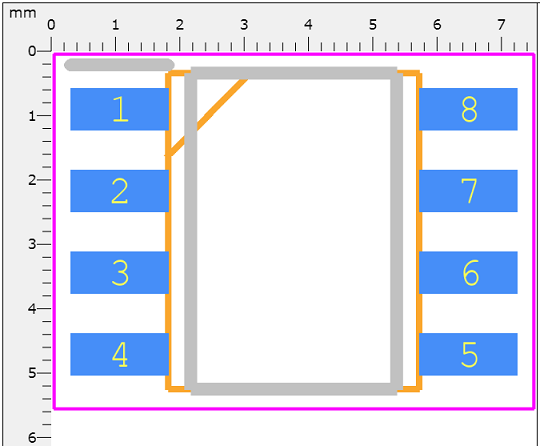

PCB Footprint

3D Model

The OP249 is a high speed, precision dual JFET op amp, similar to the popular single op amp. The OP249 outperforms available dual amplifiers by providing superior speed with excellent dc performance. Ultrahigh open-loop gain (1 kV/mV minimum), low offset voltage, and superb gain linearity makes the OP249 the industry's first true precision, dual high speed amplifier. With a slew rate of 22 V/µs typical and a fast settling time of less than 1.2 µs maximum to 0.01%, the OP249 is an ideal choice for high speed bipolar DAC and ADC applications. The excellent dc performance of the OP249 allows the full accuracy of high resolution CMOS DACs to be realized. Symmetrical slew rate, even when driving large load, such as, 600 Ω or 200 pF of capacitance and ultralow distortion, make the OP249 ideal for professional audio applications, active filters, high speed integrators, servo systems, and buffer amplifiers.

This article provides you with a basic overview of the OP249 Dual Op-Amp, including its pin descriptions, features and specifications, etc., to help you quickly understand what OP249 is.

● Slew rate: 22 V/µs typical

● Settling time (0.01%): 1.2 µs maximum

● Offset voltage: 200 µV typical

● Open-loop gain: 1000 V/mV minimum

● Total harmonic distortion: 0.002% typical

Analog Devices Inc. OP249GSZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. OP249GSZ.

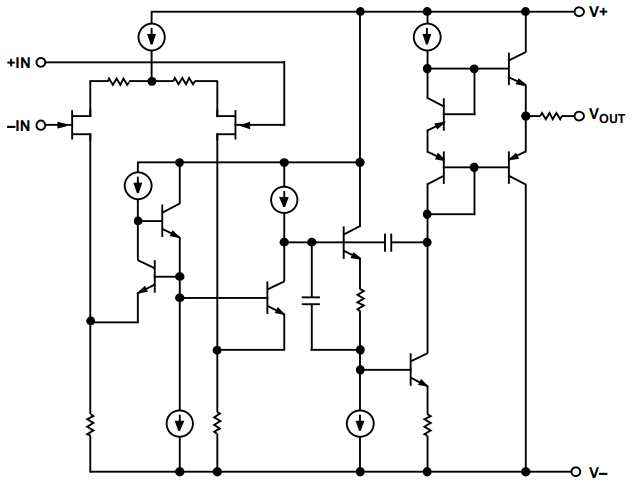

Simplified Schematic (1/2 OP249)

● Output amplifier for fast DACs

● Signal processing

● Instrumentation amplifiers

● Fast sample-and-holds

● Active filters

● Low distortion audio amplifiers

● Input buffer for ADCs

● Servo controllers

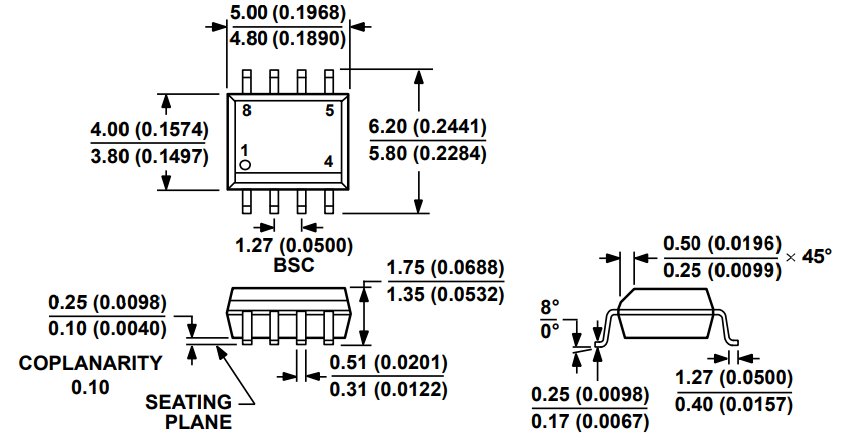

8-Lead Standard Small Outline Package

Analog Devices (NASDAQ: ADI) is a world leader in the design, manufacture, and marketing of a broad portfolio of high performance analog, mixed-signal, and digital signal processing (DSP) integrated circuits (ICs) used in virtually all types of electronic equipment. Since our inception in 1965, we have focused on solving the engineering challenges associated with signal processing in electronic equipment. Used by over 100,000 customers worldwide, our signal processing products play a fundamental role in converting, conditioning, and processing real-world phenomena such as temperature, pressure, sound, light, speed, and motion into electrical signals to be used in a wide array of electronic devices.
