IC OPAMP AUDIO 18MHZ RRO 8SOIC OPA1652 is an audio operational amplifier featuring low noise and distortion, general-purpose, fet-input. This article mainly covers pinout, datasheet, replacement,
248
Sep 12, 2021
Curitis Job
IC OPAMP AUDIO 18MHZ RRO 8SOIC
OPA1652 is an audio operational amplifier featuring low noise and distortion, general-purpose, fet-input. This article mainly covers pinout, datasheet, replacement, schematic, and more details about OPA1652 Amps. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and Ics in stock. Welcome RFQ!

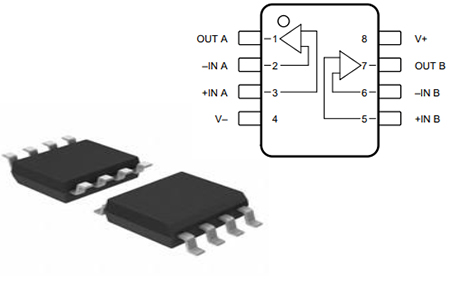

OPA1652AIDR

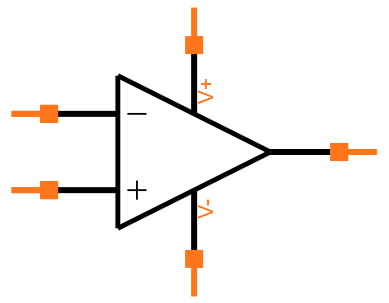

Symbol

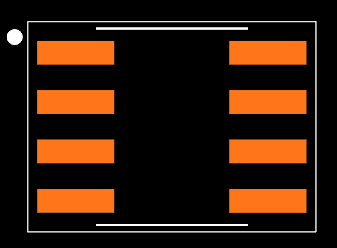

Footprint

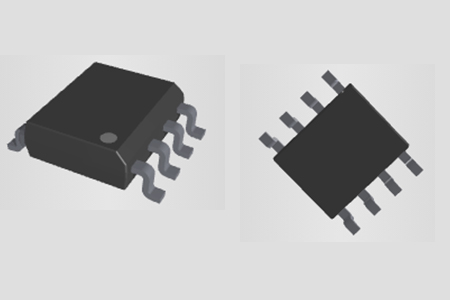

3D Model
Texas Instruments OPA1652AIDR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments OPA1652AIDR.
Texas Instruments OPA1652AIDR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments OPA1652AIDR.

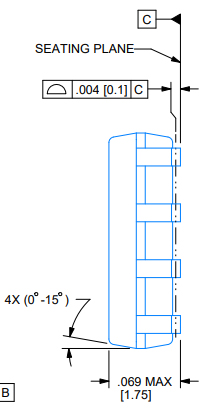

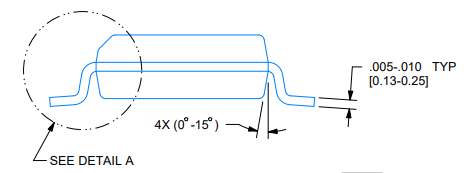

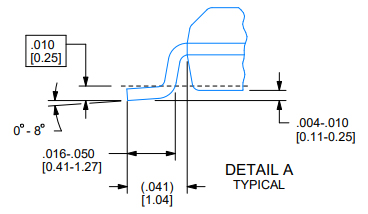

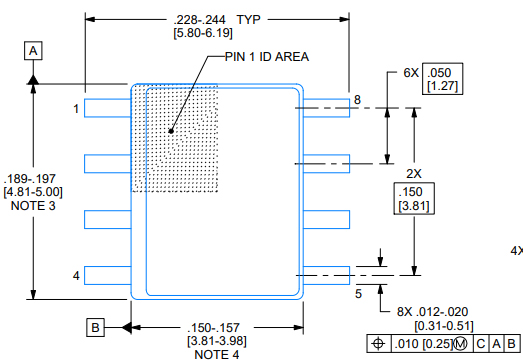

| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 1 day ago) | |
| Factory Lead Time | 8 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Surface Mount | YES | |
| Number of Pins | 8Pins | |
| Number of Elements | 2 Elements | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tape & Reel (TR) | |
| Series | SoundPlus™ | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Packing Method | TR | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING |
| Product Attribute | Attribute Value | |
|---|---|---|
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 2Functions | |
| Supply Voltage | 15V | |
| Base Part Number | OPA1652 | |
| Pin Count | 8 | |
| Output Type | Rail-to-Rail | |
| Operating Supply Voltage | 18V | |
| Operating Supply Current | 2mA | |
| Nominal Supply Current | 2mA | |
| Slew Rate | 10V/μs | |
| Architecture | VOLTAGE-FEEDBACK | |
| Amplifier Type | Audio | |
| Common Mode Rejection Ratio | 100 dB | |
| Current - Input Bias | 10pA | |
| Voltage - Supply, Single/Dual (±) | 4.5V~36V ±2.25V~18V | |
| Output Current per Channel | 30mA | |
| Input Offset Voltage (Vos) | 1.5mV | |
| Bandwidth | 18MHz | |
| Neg Supply Voltage-Nom (Vsup) | -15V | |
| Unity Gain BW-Nom | 18000 kHz |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage Gain | 114dB | |
| Average Bias Current-Max (IIB) | 0.0001μA | |
| Power Supply Rejection Ratio (PSRR) | 110.46dB | |
| Low-Offset | NO | |
| Frequency Compensation | YES | |
| Voltage - Input Offset | 500μV | |
| Low-Bias | YES | |
| Micropower | NO | |
| Bias Current-Max (IIB) @25C | 0.0001μA | |
| Programmable Power | NO | |
| Nominal Gain Bandwidth Product | 18MHz | |
| Max I/O Voltage | 1.5mV | |
| Input Offset Current-Max (IIO) | 0.0001μA | |
| Height | 1.75mm | |
| Length | 4.9mm | |
| Width | 3.91mm | |
| Thickness | 1.58mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Low Noise: 4.5 nV/√Hz at 1 kHz
3.8 nV/√Hz at 10 kHz
Low Distortion: 0.00005% at 1 kHz
Low Quiescent Current: 2 mA per Channel
Low Input Bias Current: 10 pA
Slew Rate: 10 V/μs
Wide Gain Bandwidth: 18 MHz (G = 1)
Unity-Gain Stable
Rail-to-Rail Output
Wide Supply Range: ±2.25 V to ±18 V, or 4.5 V to 36 V
Dual and Quad Versions Available
Small Package Sizes: Dual: SO-8 and MSOP-8
Quad: SO-14 and TSSOP-14

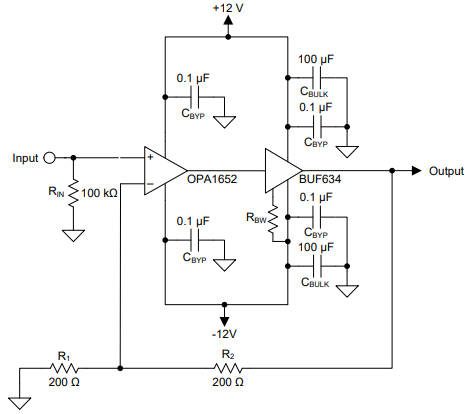

Analog and Digital Mixers
Audio Effects Processors
Musical Instruments
A/V Receivers
DVD and Blu-Ray™ Players
Car Audio Systems
