Which OpAmp is Better for 20W Class A Amplifier - OPA2604 vs NE5532?
IC OPAMP GP 2 CIRCUIT 8DIP

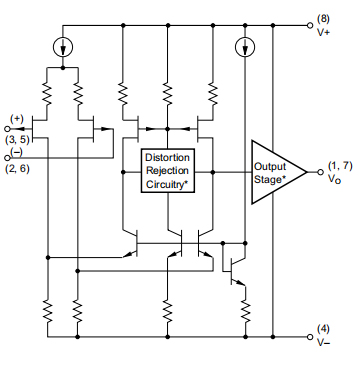

Hello, everyone.This is Rose. Today we will have a discussion about OPA2604, which is a dual FET-input, low-distortion operational amplifier.This article mainly introduce schematic, replacement, datasheet and other detailed information about Texas Instruments OPA2604.
OPA2604AP
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $7.60596 | $7.61 |
| 10+ | $7.17543 | $71.75 |
| 100+ | $6.76928 | $676.93 |
| 500+ | $6.38611 | $3193.06 |
| 1000+ | $6.02463 | $6024.63 |

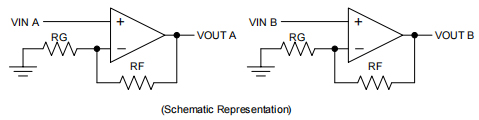

The OPA2604 is a dual, FET-input operational amplifier designed for enhanced AC performance. Low distortion, low noise, and wide bandwidth provide superior performance in high quality audio and other applications requiring dynamic performance.
New circuit techniques and special laser-trimming of dynamic circuit performance yield low harmonic distortion. The result is an operational amplifier with exceptional sound quality. The low-noise FET input of the OPA2604 provides wide dynamic range, even 2 Applications with high source impedance.
Offset voltage is laser-trimmed to minimize the need for interstage coupling capacitors. The OPA2604 is available in 8-pin plastic mini-DIP and 8-Pin SOIC surface-mount packages, specified for the –25°C to 85°C temperature range.

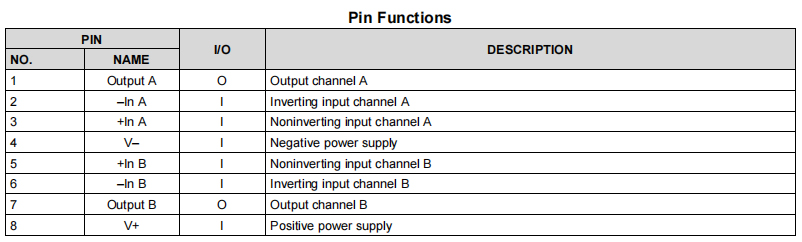

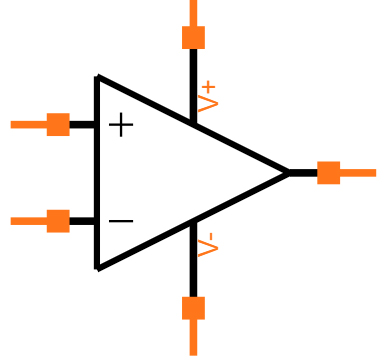

Symbol

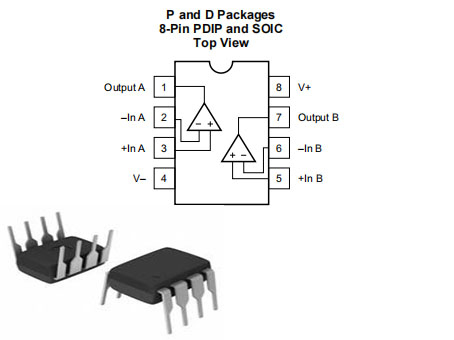

Footprint

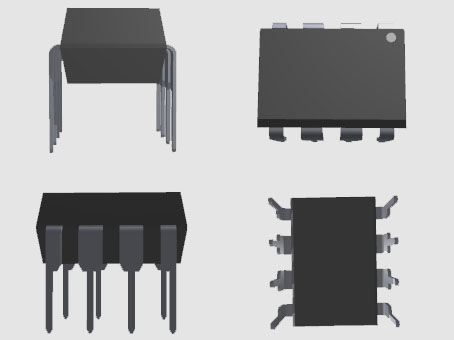

3D Model
●Low Distortion: 0.0003% at 1 kHz
●Low Noise: 10 nV/√Hz
●High Slew Rate: 25 V/µs
●Wide Gain-Bandwidth: 20 MHz
●Unity-Gain Stable
●Wide Supply Range: VS = ±4.5 to ±24 V
●Drives 600-Ω Loads
Texas Instruments OPA2604AP technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments OPA2604AP.
Texas Instruments OPA2604AP technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments OPA2604AP.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP (0.300, 7.62mm) | |
| Surface Mount | NO | |
| Number of Pins | 8Pins | |
| Operating Temperature | -25°C~85°C | |
| Packaging | Tube | |
| JESD-609 Code | e4 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Position | DUAL | |
| Number of Functions | 2Functions | |
| Supply Voltage | 15V | |
| Base Part Number | OPA2604 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Pin Count | 8 | |
| Number of Channels | 2Channels | |
| Operating Supply Current | 10.5mA | |
| Nominal Supply Current | 12mA | |
| Max Supply Current | 12mA | |
| Slew Rate | 25V/μs | |
| Architecture | VOLTAGE-FEEDBACK | |
| Amplifier Type | General Purpose | |
| Common Mode Rejection Ratio | 80 dB | |
| Current - Input Bias | 100pA | |
| Voltage - Supply, Single/Dual (±) | 9V~48V ±4.5V~24V | |
| Output Current per Channel | 35mA | |
| Input Offset Voltage (Vos) | 5mV | |
| Bandwidth | 20MHz | |
| Neg Supply Voltage-Nom (Vsup) | -15V | |
| Unity Gain BW-Nom | 20000 kHz |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage Gain | 100dB | |
| Average Bias Current-Max (IIB) | 0.0001μA | |
| Power Supply Rejection Ratio (PSRR) | 70dB | |
| Low-Offset | NO | |
| Frequency Compensation | YES | |
| Voltage - Input Offset | 1mV | |
| Low-Bias | YES | |
| Dual Supply Voltage | 9V | |
| Nominal Gain Bandwidth Product | 20MHz | |
| Height | 4.57mm | |
| Length | 9.81mm | |
| Width | 6.35mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
●Professional Audio Equipment
●PCM DAC I/V Converters
●Spectral Analysis Equipment
●Active Filters
●Transducer Amplifiers
●Data Acquisition
As a global semiconductor company operating in 35 countries, Texas Instruments (TI) is first and foremost a reflection of its people. From the TIer who unveiled the first working integrated circuit in 1958 to the more than 30,000 TIers around the world today who design, manufacture and sell analog and embedded processing chips, we are problem-solvers collaborating to change the world through technology.
Download datasheets and manufacturer documentation for Texas Instruments OPA2604AP.
Download datasheets and manufacturer documentation for OPA2604AP
