Adjustable Voltage and Current Power Supply Using OPA548
IC OPAMP POWER 1 CIRCUIT TO220-7
OPA548 is an operational amplifier. This article mainly introduce its pinout, application, datasheet PDF and other detailed information about Texas Instruments OPA548.
OPA548T
The OPA548 device is a low-cost, high-voltage and 1 high-current operational amplifier that's ideal for driving a wide variety of loads. A laser-trimmed monolithic integrated circuit provides excellent lowlevel signal accuracy and high-output voltage and current. The OPA548 device operates from either single or dual supplies for design flexibility. In single-supply operation, the input common-mode range extends below ground. The OPA548 device is internally protected against over-temperature conditions and current overloads. In addition, the OPA548 device was designed to provide an accurate, user-selected current limit. Unlike other designs, which use a power resistor in series with the output current path, the OPA548 device senses the load indirectly. This allows the current limit to be adjusted from 0 A to 5 A with a resistor andpotentiometer or controlled digitally with a voltage-out or current-out DAC.
Symbol
Footprint
3D Model
● Wide range of supply
– Single power supply: 8 V to 60 V
– Dual power supply: ±4 V to ±30 V
● High output current:
– 3-A continuous
– 5-A peak
● Wide output voltage swing
● Fully protected: underground.
– Thermal shutdown
– Adjustable current limit
● Output disable control～
● Thermal shutdown indicator
● High conversion rate: 10 V
●Low quiescent current
●Package:
– 7 leads TO-220, zipper and straight leads
– 7-pin DDPAK surface mount
Texas Instruments OPA548T technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments OPA548T.
Texas Instruments OPA548T technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments OPA548T.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 2 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Tin | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-7 (Formed Leads) | |
| Surface Mount | NO | |
| Number of Pins | 7Pins | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 7Terminations | |
| ECCN Code | EAR99 | |
| Terminal Position | ZIG-ZAG | |
| Number of Functions | 1Function | |
| Supply Voltage | 30V | |
| Base Part Number | OPA548 | |
| Pin Count | 3 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Operating Supply Voltage | 30V | |
| Power Supplies | +-4/+-30/8/60V | |
| Number of Channels | 1Channel | |
| Operating Supply Current | 17mA | |
| Nominal Supply Current | 20mA | |
| Output Current | 3A | |
| Slew Rate | 10V/μs | |
| Architecture | VOLTAGE-FEEDBACK | |
| Amplifier Type | Power | |
| Common Mode Rejection Ratio | 80 dB | |
| Current - Input Bias | 100nA | |
| Voltage - Supply, Single/Dual (±) | 8V~60V ±4V~30V | |
| Output Current per Channel | 5A | |
| Input Offset Voltage (Vos) | 2mV | |
| Bandwidth | 1MHz | |
| Neg Supply Voltage-Nom (Vsup) | -30V | |
| Unity Gain BW-Nom | 1000 kHz | |
| Voltage Gain | 98dB | |
| Average Bias Current-Max (IIB) | 0.5μA | |
| Low-Offset | NO |
| Product Attribute | Attribute Value | |
|---|---|---|
| Frequency Compensation | YES | |
| Settling Time | 15 μs | |
| Low-Bias | NO | |
| Micropower | NO | |
| Bias Current-Max (IIB) @25C | 0.5μA | |
| Programmable Power | YES | |
| Dual Supply Voltage | 9V | |
| Nominal Gain Bandwidth Product | 1MHz | |
| Max I/O Voltage | 10mV | |
| Power | YES | |
| Height | 4.7mm | |
| Length | 10.16mm | |
| Width | 8.34mm | |
| Thickness | 4.6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
● Valve, Actuator Drivers OPA548
●SYNCHRO, SERVO Drivers
● Power Supplies
● Test Equipment
● Transducer Excitation
● Audio Amplifiers
Thermal Shutdown Status With a Single- Figure

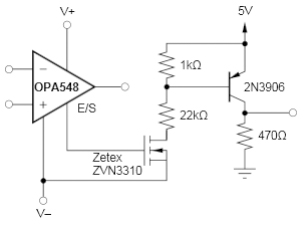

Thermal Shutdown Status With Dual Supplies
Basic Circuit Connections

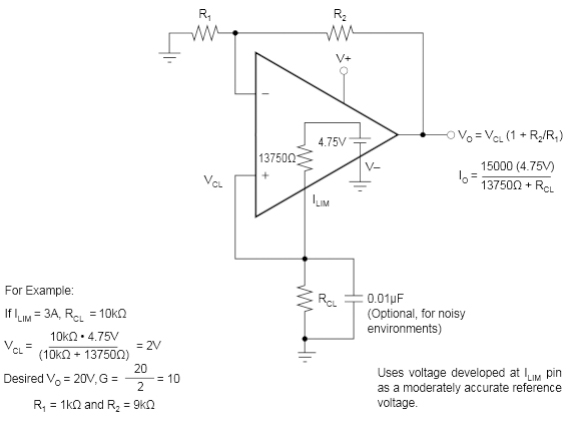

Voltage source schematic
Package KC(R-PSFM-T7)
Package KVT(R-PZFM-T7)
Package KTW (R-PSFM-G7)
