OPT3001DNPT: Light Sensor, Pinout, Circuit

The OPT3001DNPT is a visible light sensor that measures the intensity of light. The sensor's spectrum response closely mimics the photopic response of the human eye and contains strong infrared rejection.

Symbol

Footprint

3D Model

• Precision Optical Filtering to Match Human Eye:

– Rejects > 99% (typ) of IR

• Automatic Full-Scale Setting Feature Simplifies

Software and Ensures Proper Configuration

• Measurements: 0.01 lux to 83 k lux

• 23-Bit Effective Dynamic Range With

Automatic Gain Ranging

• 12 Binary-Weighted Full-Scale Range Settings:

< 0.2% (typ) Matching Between Ranges

• Low Operating Current: 1.8 µA (typ)

• Operating Temperature Range: –40°C to +85°C

• Wide Power-Supply Range: 1.6 V to 3.6 V

• 5.5-V Tolerant I/O

• Flexible Interrupt System

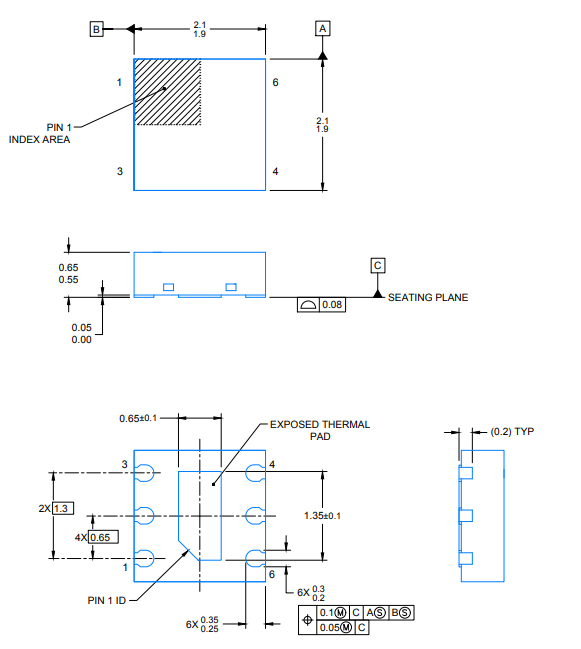

• Small-Form Factor: 2.0 mm × 2.0 mm × 0.65 mm

• Display Backlight Controls

• Lighting Control Systems

• Tablet and Notebook Computers

• Thermostats and Home Automation Appliances

• Point-of-Sale Terminals

• Outdoor Traffic and Street Lights

• Cameras
