Transistors - FETs, MOSFETs - Single MOSFET N-CH 30V 90A TO-220
P90NF03L application-specific Power Mosfet is the third generation of STMicroelectronics unique “Single Feature Size™” strip-based process. This article will unlock more details about P90NF03L MOSFET, including its pinout, datasheet, and more about P90NF03L! Welcome your RFQ!
STP90NF03L
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.33745 | $1.34 |
| 10+ | $1.26175 | $12.62 |
| 100+ | $1.19033 | $119.03 |
| 500+ | $1.12295 | $561.47 |
| 1000+ | $1.05938 | $1059.38 |

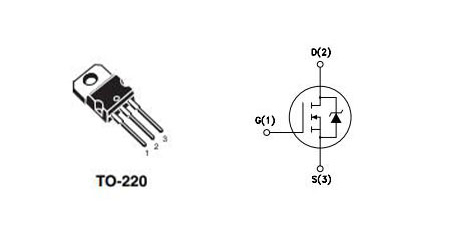

P90NF03L MOSFET Symbol
P90NF03L MOSFET Footprint
P90NF03L MOSFET 3D Model
STP90NF03L/P90NF03L application-specific Power Mosfet is the third generation of STMicroelectronics unique“Single Feature Size™”strip-based process. The resulting transistor shows the best trade-off between on-resistance and gate charge. When used as a high and low side in buck regulators, it gives the best performance in terms of both conduction and switching losses. This is extremely important for motherboards where fast switching and high efficiency are of paramount importance.
Optimal RDS(on) x Qg trade-off
Conduction losses reduced
Switching losses reduced
Switching application
The test circuit of P90NF03L MOSFET is shown in the below figures:
P90NF03L MOSFET-Switching times test circuit for resistive load

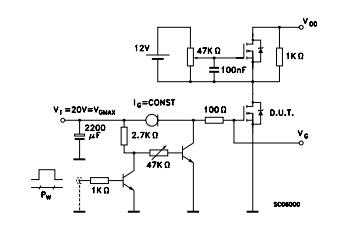

P90NF03L MOSFET-Gate charge test circuit
STMicroelectronics STP90NF03L technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STP90NF03L.
STMicroelectronics STP90NF03L technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics STP90NF03L.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | NRND (Last Updated: 8 months ago) | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Transistor Element Material | SILICON | |
| Current - Continuous Drain (Id) @ 25℃ | 90A Tc | |
| Drive Voltage (Max Rds On, Min Rds On) | 5V 10V | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 150W Tc | |
| Turn Off Delay Time | 50 ns | |
| Operating Temperature | -65°C~175°C TJ | |
| Packaging | Tube | |
| Series | STripFET™ | |
| JESD-609 Code | e3 | |
| Part Status | Not For New Designs |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Voltage - Rated DC | 30V | |
| Current Rating | 90A | |
| Base Part Number | STP90N | |
| Pin Count | 3 | |
| JESD-30 Code | R-PSFM-T3 | |
| Element Configuration | Single | |
| Operating Mode | ENHANCEMENT MODE | |
| Power Dissipation | 150W | |
| Turn On Delay Time | 30 ns | |
| FET Type | N-Channel | |
| Transistor Application | SWITCHING | |
| Rds On (Max) @ Id, Vgs | 6.5m Ω @ 45A, 10V | |
| Vgs(th) (Max) @ Id | 2.5V @ 250μA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Input Capacitance (Ciss) (Max) @ Vds | 2700pF @ 25V | |
| Gate Charge (Qg) (Max) @ Vgs | 47nC @ 5V | |
| Rise Time | 200ns | |
| Vgs (Max) | ±20V | |
| Fall Time (Typ) | 105 ns | |
| Continuous Drain Current (ID) | 90A | |
| JEDEC-95 Code | TO-220AB | |
| Gate to Source Voltage (Vgs) | 20V | |
| Drain-source On Resistance-Max | 0.0065Ohm | |
| Drain to Source Breakdown Voltage | 30V | |
| Pulsed Drain Current-Max (IDM) | 360A | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

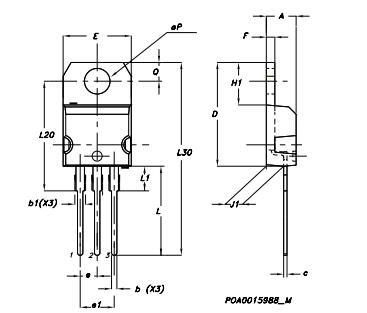

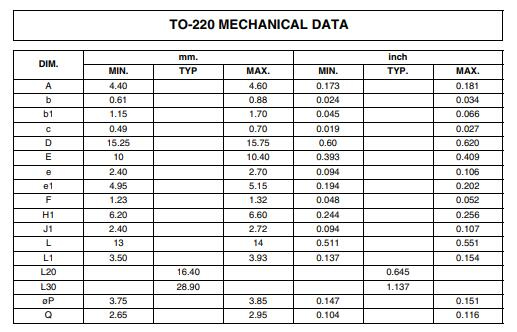

P90NF03L MOSFET Package
