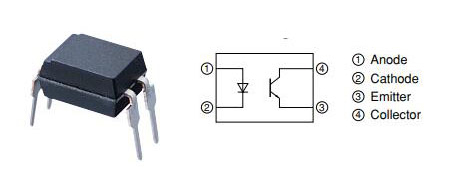

OPTOISOLATR 5KV TRANSISTOR 4-DIP The PC123 comes from PC123 Series which contains an IRED optically coupled to a phototransistor.This post covers its pinout, datasheet and other detailed information.
3024
Sep 17, 2021
Natividad Ralph
LED flasher Using Optocoupler PC123 or PC817 | Easy With circuit Diagram
OPTOISOLATR 5KV TRANSISTOR 4-DIP
The PC123 comes from PC123 Series which contains an IRED optically coupled to a phototransistor.This post covers its pinout, datasheet and other detailed information. And more, Huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ.
PC123
The PC123 comes from PC123 Series which contains an IRED optically coupled to a phototransistor.

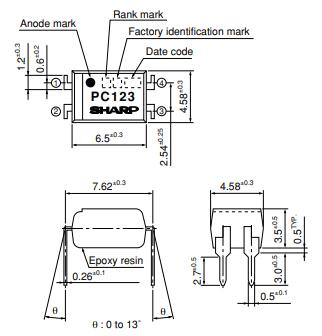

It is packaged in a 4-pin DIP, available in wide-lead spacing option and SMT gullwing lead-form option.
Input-output isolation voltage(rms) is 5.0kV.
CTR is 50% to 400% at an input current of 5mA.

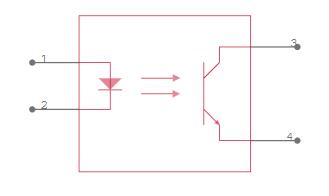

PC123 Symbol

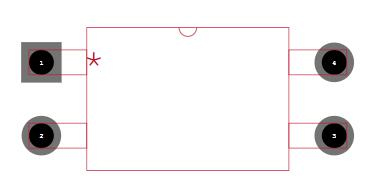

PC123 Footprint

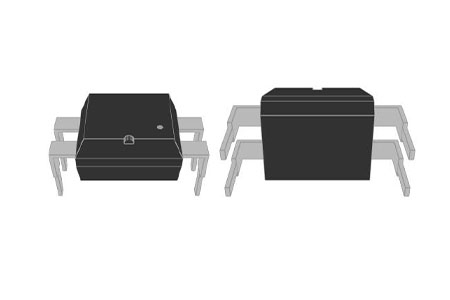

PC123 3D Model
Sharp Microelectronics PC123 technical specifications, attributes, parameters and parts with similar specifications to Sharp Microelectronics PC123.
Sharp Microelectronics PC123 technical specifications, attributes, parameters and parts with similar specifications to Sharp Microelectronics PC123.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 4-DIP (0.300, 7.62mm) | |
| Current Transfer Ratio-Min | 50% @ 5mA | |
| Number of Elements | 1 Element | |
| Operating Temperature | -30°C~100°C | |
| Published | 1996 | |
| Packaging | Tube | |
| JESD-609 Code | e0 | |
| Part Status | Obsolete |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Additional Feature | UL RECOGNIZED | |
| Reach Compliance Code | unknown | |
| Voltage - Isolation | 5000Vrms | |
| Output Voltage | 70V | |
| Output Type | Transistor | |
| Configuration | SINGLE | |
| Number of Channels | 1Channel | |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Input Type | DC | |
| Output Current per Channel | 50mA | |
| Collector Emitter Voltage (VCEO) | 200mV | |
| Rise / Fall Time (Typ) | 4μs 3μs | |
| Forward Current-Max | 0.05A | |
| Current Transfer Ratio (Max) | 600% @ 5mA | |
| RoHS Status | Non-RoHS Compliant | |
| Lead Free | Contains Lead |
1. 4-pin DIP package
2. Double transfer mould package (Ideal for Flow Soldering)
3. Current transfer ratio (CTR: MIN. 50% at IF=5 mA, VCE=5V)
4. Several CTR ranks are available
5. Reinforced insulation type (Isolation distance: MIN. 0.4mm)
6. Long creepage distance type (wide lead-form type only: MIN. 8mm)
7. High isolation voltage between input and output (Viso(RMS) : 5.0 kV)
1. I/O isolation for MCUs (Micro Controller Units)
2. Noise suppression in switching circuits
3. Signal transmission between circuits of different potentials and impedances
4. Overvoltage detection
The equivalents for PC123: PC816, PC817, TLP621, TLP321, TLP421, PC17K1, H11A817, SFH615A, PS2501-1, PS2561-1, PS2571-1, LTV-816, LTV-817(-V), LTV123, LTV-610 K1010, K817P, SFH615A.
| Part Number | PC817 | PC123 |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | Obsolete |
| Package Description | DIP-4 | O-LALF-W2 |
| Reach Compliance Code | unknown | unknown |
| Additional Feature | UL RECOGNIZED | HIGH Q |
| Coll-Emtr Bkdn Voltage-Min | 35 V | |
| Configuration | SINGLE | SINGLE |
| Current Transfer Ratio-Nom | 0.5 | |
| Dark Current-Max | 100 nA | |
| Forward Current-Max | 0.05 A | |
| Isolation Voltage-Max | 5000 V | |
| JESD-609 Code | e0 | e0 |
| Number of Elements | 1 | 1 |
| Operating Temperature-Max | 100 C | 150 C |
| Operating Temperature-Min | 30 C | 65 C |
| Optoelectronic Device Type | TRANSISTOR OUTPUT OPTOCOUPLER | |
| Terminal Finish | Tin/Lead (Sn/Pb) | TIN LEAD |
Sharp Microelectronics of the Americas (SMA), in Camas, Washington, is the division of Sharp Electronics Corporation (a subsidiary of Sharp Corporation) to sell and market microelectronics. It ranks as a leading manufacturer providing an extensive portfolio of electronic components including innovative LCD, optoelectronics, memory, imager, and RF components. SMA provides products, expertise, and support for globally leading manufacturers of consumer and business technologies to realize their visions.
Download datasheets and manufacturer documentation for Sharp Microelectronics PC123.
