PESD2CAN TVS Diode: SOT-23, CAN Bus, Datasheet and Pinout

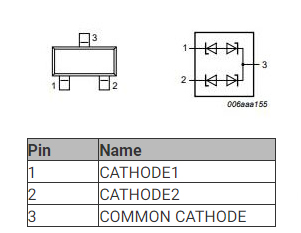

PESD2CAN Symbol

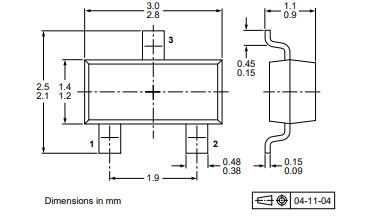

PESD2CAN Footprint

PESD2CAN 3D Model

PESD2CAN in a small SOT23 Surface-Mounted Device  (SMD) plastic package designed to protect two automotive Controller Area Network (CAN) bus lines from the damage caused by  ElectroStatic Discharge  (ESD) and other transients.

• Max. peak pulse power: PPP = 230 W at tp = 8/20ms

• Low clamping voltage: VCL = 41 V at IPP =5A

• Ultra low leakage current: IRM < 1 nA

• ESD protection up to 30 kV

• IEC  61000-4-2 , level 4 (ESD)

• IEC  61000-4-5  (surge); IPP = 5 A at tp = 8/20 ms

• AEC-Q101 qualified

• CAN bus protection

• Automotive applications

The PESD2CAN  is designed for the protection of two automotive CAN bus lines from the damage caused by ESD and surge pulses. The PESD2CAN  can be used for both, high-speed CAN bus and fault-tolerant CAN bus protection. The PESD2CAN  provides a surge capability of up to 230 W per line for an 8/20 ms waveform. The following figure shows the typical circuit of PESD2CAN below.

PESD2CAN Typical Application Circuit

Circuit board layout and protection device placement:
Circuit board layout is critical for the suppression of ESD, Electrical Fast Transient (EFT)
and surge transients. The following guidelines are recommended:
1. Place the PESD2CAN  as close to the input terminal or connector as possible.
2. Minimize the path length between the PESD2CAN  and the protected line.
3. Keep parallel signal paths to a minimum.
4. Avoid running protection conductors in parallel with unprotected conductors.
5. Minimize all  Printed-Circuit Board  (PCB) conductive loops including power and
ground loops.
6. Minimize the length of the transient return path to the ground.
7. Avoid using shared transient return paths to a common ground point.
8. Use ground planes whenever possible. For multilayer PCBs, use ground vias.

Nexperia USA Inc. PESD2CAN,215 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. PESD2CAN,215.

Nexperia is a dedicated global leader in Discretes, Logic and MOSFETs devices. This new company became independent at the beginning of 2017. Focused on efficiency, Nexperia produces consistently reliable semiconductor components at a high volume: 85 billion annually. The company’s extensive portfolio meets the stringent standards set by the Automotive industry. And industry-leading small packages, produced in their own manufacturing facilities, combine power and thermal efficiency with best-in-class quality levels. Built on over half a century of expertise, Nexperia has 11,000  employees. across  Asia,  Europe and the  U.S.  supporting customers globally.

The more hit parts  from Nexperia are following

• PESD5V0S1BB, 115

• PESD3V3X4UHMYL

• PESD24VF1BLYL

• PESD5V0F1BL, 315

• PESD5V0S1BL, 315

• PESD3V3S2UT, 215

• PESD2CAN, 215

• PESD5VOU1UB, 115

Download datasheets and manufacturer documentation for Nexperia USA Inc. PESD2CAN,215.
