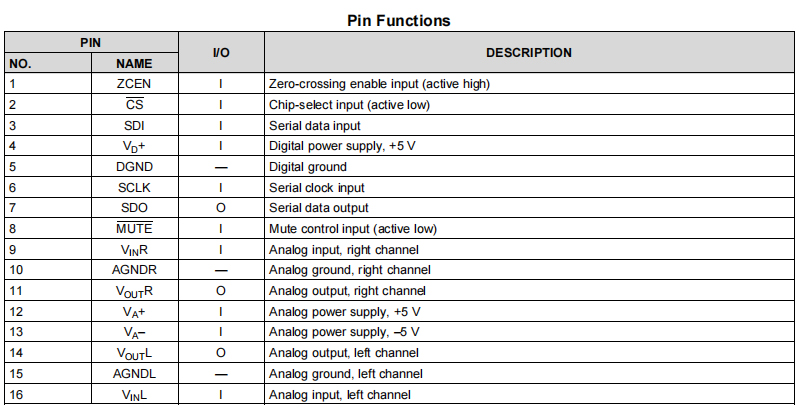

PGA2311 Volume Control: Alternative, Package and Pinout

The PGA2311 device is a high-performance, stereo audio volume control designed for professional and high-end consumer audio systems.

The PGA2311 uses an internal high-performance operational amplifier to yield low noise and distortion. The PGA2311 also provides the capability to drive 660-Ω loads directly without buffering.

The 3-wire serial control interface allows for connection to a wide variety of host controllers, in addition to support for daisy-chaining of multiple PGA2311 devices.

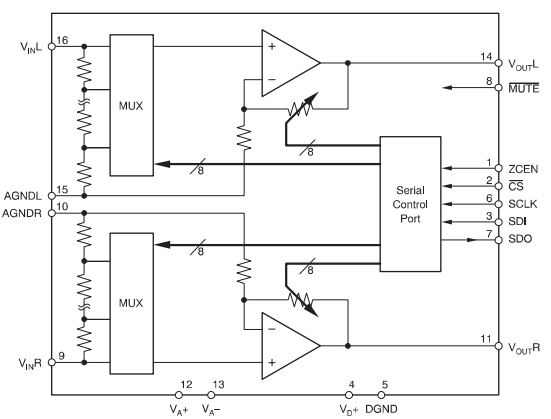

The heart of the PGA2311 is a resistor network, an analog switch array, and a high-performance op amp stage. The switches are used to select taps in the resistor network that, in turn, determine the gain of the amplifier stage.

Switch selections are programmed using a serial control port. The PGA2311 includes a zero crossing detection function that can provide for noise-free level transitions.

The concept is to change gain settings on a zero crossing of the input signal, thus minimizing audible glitches .The zero crossing detection takes effect with a change in gain setting for a corresponding channel.

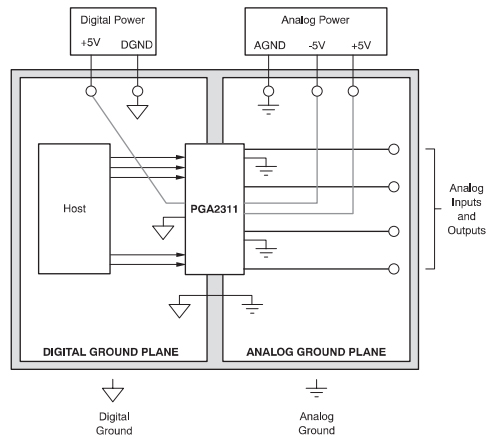

The new gain setting will not be implemented until either positive slope zero crossing is detected or a time-out period of 16ms has elapsed. In the case of a time-out, the new gain setting takes effect with no attempt to minimize audible artifacts. This board features a fully independent signal and power ground .

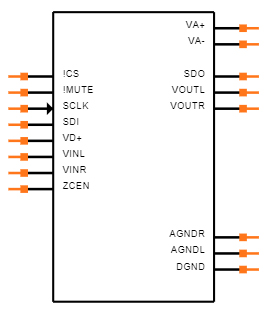

Symbol

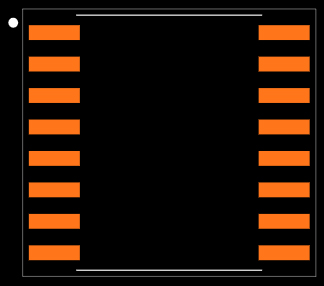

Footprint

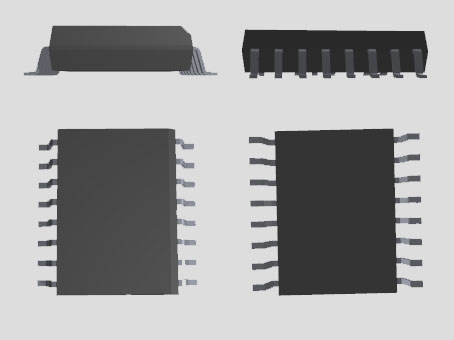

3D Model

• Digitally-Controlled Analog Volume Control:

– Two Independent Audio Channels

– Serial Control Interface

– Zero Crossing Detection

– Mute Function

• Wide Gain and Attenuation Range:

+31.5 dB to −95.5 dB with 0.5-dB Steps

• Low Noise and Distortion:

– 120-dB Dynamic Range

– 0.0004% THD+N at 1 kHz (U-Grade)

– 0.0002% THD+N at 1 kHz (A-Grade)

• Noise-Free Level Transitions

• Low Interchannel Crosstalk: −130 dBFS

• Power Supplies: ±5-V Analog, +5-V Digital

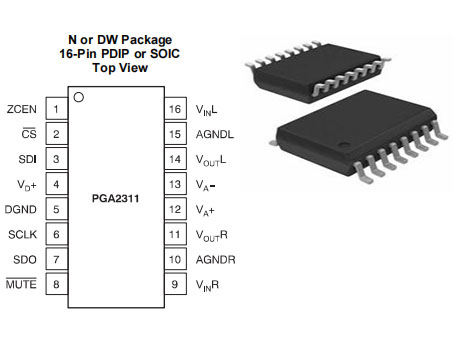

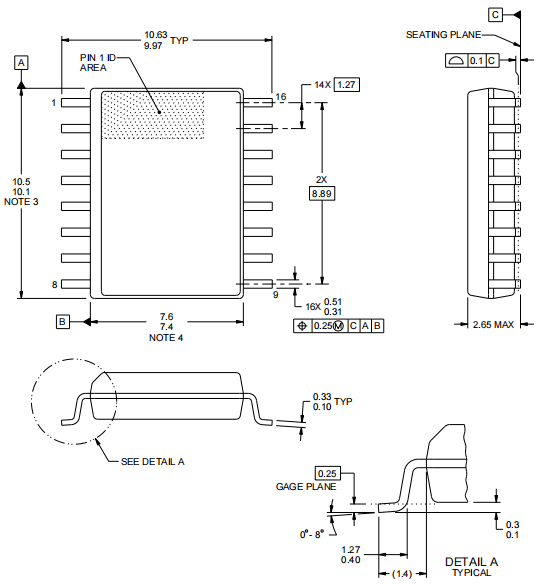

• Available in PDIP-16 and SOIC-16 Packages

• Pin- and Software-Compatible With the Crystal CS3310

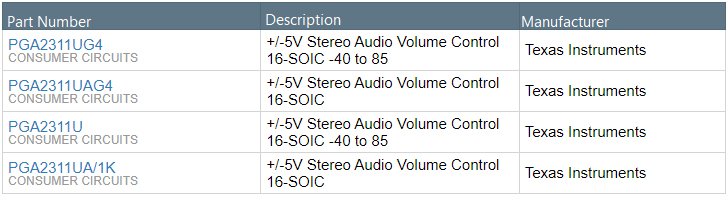

Texas Instruments PGA2311UA/1K technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments PGA2311UA/1K.

• Used in Audio Amplifiers

• Used in Mixing Consoles

• Used in Multi-Track Recorders

• Used in Broadcast Studio Equipment

• Used in Musical Instruments

• Used in Effects Processors

• Used in A/V Receivers

• Used in Car Audio Systems
