Pic16f84a Powerful FLASH/EEPROM 8-Bit Microcontroller:Pinout，Features，Package

This document contains device specific information for the operation of the PIC16F84A device. Additional information may be found in the PIC® Mid-Range Reference Manual, (DS33023), which may be downloaded from the Microchip website. The Reference Manual should be considered a complementary document to this datasheet, and is a highly recommended reading for a better understanding of the device architecture and operation of the peripheral modules.

The PIC16F84A belongs to the mid-range family of the PIC® microcontroller devices. A block diagram of the device is shown in Figure 1-1. The program memory contains 1K words, which translates to 1024 instructions, since each 14-bit program memory word is the same width as each device instruction. The data memory (RAM) contains 68 bytes. Data EEPROM is 64 bytes.

There are also 13 I/O pins that are user-configured on a pin-to-pin basis. Some pins are multiplexed with other device functions.

These functions include:

• External interrupt

• Change on PORTB interrupt

• Timer0 clock input

Pic16f84a Symbol

Pic16f84a Footprint

Pic16f84a 3D Model

• Only 35 single word instructions to learn

• All instructions single-cycle except for program branches which are two-cycle

• Operating speed: DC - 20 MHz clock input DC - 200 ns instruction cycle

• 1024 words of program memory

• 68 bytes of Data RAM

• 64 bytes of Data EEPROM

• 14-bit wide instruction words

• 8-bit wide data bytes

• 15 Special Function Hardware registers

• Eight-level deep hardware stack

• Direct, indirect and relative addressing modes

• Four interrupt sources:

  - External RB0/INT pin

  - TMR0 timer overflow

  - PORTB<7:4> interrupt-on-change

  - Data EEPROM write complete

Microchip Technology PIC16F84A-04/P technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology PIC16F84A-04/P.

PIC16F84A Package

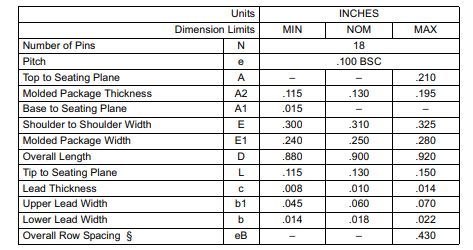

PIC16F84A Dimension
