PIC18F14K50 Microcontroller: Features, Pinout, and Datasheet

The PIC18F14K50 is a 20-Pin USB Flash Microcontroller with nanoWatt XLP Technology. The PIC18F14K50 brings advanced features and exceptional value to the embedded USB market. This low-cost PIC® Microcontroller features a full-speed USB 2.0 compliant interface that can automatically change clock sources and power levels upon connection to a host, making it an exceptional device for battery-powered applications.

The addition of mTouch(TM) touch sensing compatibility, a 10-bit ADC, motor control PWMs, and a host of serial interfaces make the PIC18F14K50 the perfect device to "Just add USB" to any application. USB Application Design Center Debug Support. A debug header is required for this device, part Numbers are AC244023 (F) / AC244024 (LF). Debug and programming support is available via MPLAB® REAL ICE, PICkit™ 3, and MPLAB® ICD 3.

Symbol

Footprint

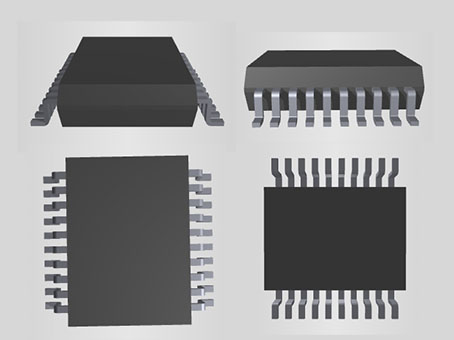

3D Model

• C Compiler optimized architecture

• Self-programmable under software control

• Support for Interrupt Priority Levels

• 8x8 Single-Cycle Hardware Multiplier

• Enhanced Watchdog Timer with a programmable period

• USB v2.0 compliant interface

• Supports both Low Speed and Full Speed operation

• Supports Control, Interrupt, Isochronous and Bulk transfer

• Up to 16 Endpoints (or up to 8 bidirectional)

• Automatic detection of physical connection to USB host

• 256-byte Dual Access RAM

• Can be internally clocked up to 48MHz

• Supplies frequencies from 31KHz to 16MHz

• Can be user-adjusted for frequency drift

• Can be used with External or Internal Oscillators

• Allows for safe shutdown during oscillator failure

• Up to 5 PWM Outputs

• Programmable dead time, auto shutdown/restart

• Supports all modes of 3-wire SPI

• I2C™Compatible Master and Slave modes with address masking

• Supports RS-485, RS-232, and LIN 2.0

• Can acquire & convert samples automatically

• Can operate in sleep mode

• Rail to Rail operation

• Independent input multiplexing

• Robust GPIO with 25mA sink/source current

• Can be used with Comparators or ADC

• 1.8 to 5.6V Operating Range

• Software Programmable Brown-out Reset feature

• Four power-managed operating modes

• Two-speed clock startup option

Microchip Technology PIC18F14K50-I/SS technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology PIC18F14K50-I/SS.

1. New Core Features

(1) NanoWatt XLP TECHNOLOGY

• Alternate Run Modes

• Multiple Idle Modes

• On-the-fly Mode Switching

• Low Consumption in Key Modules

(2) Multiple Oscillator Options And Features

• Fail-Safe Clock Monitor

• Two-Speed Start-up

2. Other Special Features

• Memory Endurance

• Self-programmability

• Extended Instruction Set

• Enhanced CCP module

• Enhanced Addressable USART

• 10-bit A/D Converter

• Extended Watchdog Timer (WDT)
