8-bit Microcontrollers - MCU 32KB FL 4KBRM 16MIPS 12bit ADC CTMU
The PIC18F25K80 microcontroller is a high-performance 8-bit MCU with Integrated ECAN™ featuring eXtreme Low Power consumption. This article mainly introduces features, pinout, datasheet and other detailed information about Microchip Technology PIC18F25K80.
PIC18F25K80-I/SS
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $3.38016 | $3.38 |
| 10+ | $3.18883 | $31.89 |
| 100+ | $3.00833 | $300.83 |
| 500+ | $2.83804 | $1419.02 |
| 1000+ | $2.6774 | $2677.4 |
PIC18F25K80 is a high-performance 8-bit MCU with Integrated ECAN™ featuring eXtreme Low Power consumption. New features in PIC18F25K80 include low sleep current for low power application, 1.8V to 5.5V operating voltage for automotive, building control, elevator control and industrial application, Timers/Enhanced Compare/Capture/PWMs for precision timing control, 12-bit ADC for advance analog interface and Charge Time Measurement Unit for the easy capacitive touch user interface. The PIC18F25K80 family is ideal for applications requiring cost-effective, low-power CAN solutions with high performance and robust peripheral sets in a small package.
Symbol

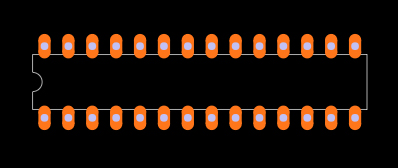

Footprint
3D Model
• Operating Voltage Range: 1.8V to 5.5V
• On-Chip 3.3V Regulator
• Operating Speed up to 64 MHz
• Up to 64 Kbytes On-Chip Flash Program Memory:
- 10,000 erase/write cycle, typical
- 20 years minimum retention, typical
• 1,024 Bytes of Data EEPROM:
- 100,000 Erase/write cycle data EEPROM memory, typical
• 3.6 Kbytes of General Purpose Registers (SRAM)
• Three Internal Oscillators: LF-INTOSC (31 KHz), MF-INTOSC (500 kHz) and HF-INTOSC (16 MHz)
• Self-Programmable under Software Control
• Priority Levels for Interrupts
• 8 x 8 Single-Cycle Hardware Multiplier
• Extended Watchdog Timer (WDT):
- Programmable period from 4 ms to 4,194s
• In-Circuit Serial Programming™ (ICSP™) via Two Pins
• In-Circuit Debug via Two Pins
• Programmable BOR
• Programmable LVD
Microchip Technology PIC18F25K80-I/SS technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology PIC18F25K80-I/SS.
Microchip Technology PIC18F25K80-I/SS technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology PIC18F25K80-I/SS.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 8 Weeks | |
| Contact Plating | Tin | |
| Mounting Type | Surface Mount | |
| Package / Case | 28-SSOP (0.209, 5.30mm Width) | |
| Surface Mount | YES | |
| Number of Pins | 28Pins | |
| Data Converters | A/D 8x12b | |
| Number of I/Os | 24I/Os | |
| Watchdog Timers | Yes | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tube | |
| Series | PIC® XLP™ 18K | |
| Published | 2010 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 28Terminations | |
| Max Power Dissipation | 1W |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Supply Voltage | 3.3V | |
| Frequency | 64MHz | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | PIC18F25K80 | |
| Pin Count | 28 | |
| Supply Voltage-Min (Vsup) | 3V | |
| Interface | CAN, I2C, LIN, SPI, UART, USART | |
| Memory Size | 32kB | |
| Oscillator Type | Internal | |
| RAM Size | 3.6K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 1.8V~5.5V | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER | |
| Core Processor | PIC | |
| Peripherals | Brown-out Detect/Reset, LVD, POR, PWM, WDT | |
| Program Memory Type | FLASH | |
| Core Size | 8-Bit |
| Product Attribute | Attribute Value | |
|---|---|---|
| Program Memory Size | 32KB 16K x 16 | |
| Connectivity | ECANbus, I2C, LINbus, SPI, UART/USART | |
| Bit Size | 8 | |
| Has ADC | YES | |
| DMA Channels | NO | |
| Data Bus Width | 8b | |
| EEPROM Size | 1K x 8 | |
| CPU Family | PIC | |
| Number of A/D Converters | 1A/D Converter | |
| Number of UART Channels | 2UART Channels | |
| Number of ADC Channels | 8ADC Channels | |
| Number of PWM Channels | 5PWM Channels | |
| Height | 1.8542mm | |
| Length | 10.4902mm | |
| Width | 5.588mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
| Part Number | Description | Manufacturer |
| PIC18F25K80-I/SOVAOMICROCONTROLLERS AND PROCESSORS | Microcontroller, 8-Bit, FLASH, 64MHz, CMOS, PDSO28 | Microchip Technology Inc |
| PIC18F25K80T-E/SOVAOMICROCONTROLLERS AND PROCESSORS | Microcontroller, 8-Bit, FLASH, 64MHz, CMOS, PDSO28 | Microchip Technology Inc |
| PIC18F25K80-E/SOVAOMICROCONTROLLERS AND PROCESSORS | Microcontroller, 8-Bit, FLASH, 64MHz, CMOS, PDSO28 | Microchip Technology Inc |
● Low Sleep Current for Low Power Application
● 1.8V to 5.5V Operating Voltage for Automotive
● Building Control
● Elevator Control
● Industrial Application
● Timers
● Featuring nanoWatt XLP Technology Ideal for Battery Applications
Microchip Technology Inc. is an American manufacturer of microcontrollers, memory and analog semiconductors. Its products include microcontrollers (PIC microcontrollers, dsPIC / PIC24, PIC32), serial EEPROM, serial SRAM, KEELOQ components, radio frequency (RF) components, thermal components, power and battery management analog components, and linear, Interface and mixed-signal components. There are also some interface components including USB, ZigBee/MiWi, CANbus and Ethernet.
The company is headquartered in Chandler, Arizona, and its wafer fabs are located in Tempe, Arizona and Gresham, Oregon.
The company is dedicated to offering low-risk product development, reducing total system cost and accelerating time to market. They mainly serve different fields of customers applications around the world. To provide prominent technical support along with reliable delivery and quality is their goal.
Download datasheets and manufacturer documentation for Microchip Technology PIC18F25K80-I/SS.
Download datasheets and manufacturer documentation for PIC18F25K80-I/SS
