PIC18F4620 Enhanced Flash Microcontrollers:Pinout, Features, and Datasheet

PIC18F4620 offers the advantages of all PIC18 microcontrollers – namely, high computational performance at an economical price – with the addition of high-endurance, Enhanced Flash program memory. On top of these features, the PIC18F2525/2620/4525/ 4620 family introduces design enhancements that make these microcontrollers a logical choice for many high-performance, power sensitive applications.

PIC18F4620 Symbol

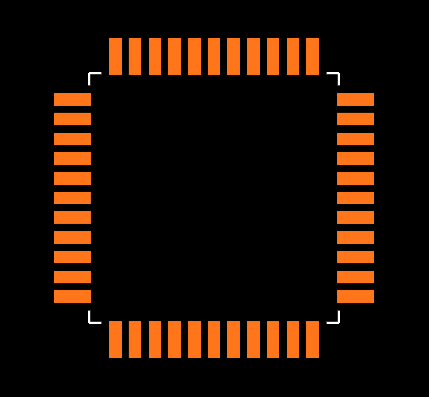

PIC18F4620 Footprint

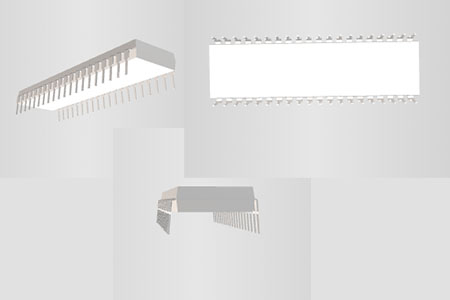

PIC18F4620 CAD Model

• Run: CPU on, Peripherals on

• Idle: CPU off, Peripherals on

• Sleep: CPU off, Peripherals off

• Ultra-Low 50nA Input Leakage

• Run mode Currents Down to 11 μA Typical

• Idle mode Currents Down to 2.5 μA Typical

• Sleep mode Current Down to 100 nA Typical

• Timer1 Oscillator: 900 nA, 32 kHz, 2V

• Watchdog Timer: 1.4 μA, 2V Typical

• Two-Speed Oscillator Start-up

Flexible Oscillator Structure:

• Four Crystal modes, up to 40 MHz

• 4x Phase Lock Loop (PLL) – Available for Crystal and Internal Oscillators

• Two External RC modes, up to 4 MHz

• Two External Clock modes, up to 40 MHz

• Internal Oscillator Block:

- Fast wake from Sleep and Idle, 1 μs typical

- 8 use-selectable frequencies, from 31 kHz to 8 MHz

- Provides a complete range of clock speeds from 31 kHz to 32 MHz when used with PLL

- User-tunable to compensate for frequency drift

• Secondary Oscillator using Timer1 @ 32 kHz

• Fail-Safe Clock Monitor:

- Allows for safe shutdown if peripheral clock stops

Peripheral Highlights:

• High-Current Sink/Source 25 mA/25 mA

• Three Programmable External Interrupts

• Four Input Change Interrupts

• Up to 2 Capture/Compare/PWM (CCP) modules, one with Auto-Shutdown (28-pin devices)

• Enhanced Capture/Compare/PWM (ECCP) module (40/44-pin devices only): - One, two or four PWM outputs

- Selectable polarity

- Programmable dead time

- Auto-shutdown and auto-restart

Peripheral Highlights (Continued):

• Master Synchronous Serial Port (MSSP) module Supporting 3-Wire SPI (all 4 modes) and I2C™ Master and Slave modes

• Enhanced Addressable USART module:

- Supports RS-485, RS-232 and LIN/J2602

- RS-232 operation using internal oscillator block (no external crystal required)

- Auto-wake-up on Start bit

- Auto-Baud Detect

• 10-Bit, up to 13-Channel Analog-to-Digital (A/D) Converter module:

- Auto-acquisition capability

- Conversion available during Sleep

• Dual Analog Comparators with Input Multiplexing

• Programmable 16-Level High/Low-Voltage Detection (HLVD) module:

- Supports interrupt on High/Low-Voltage Detection

Special Microcontroller Features:

• C Compiler Optimized Architecture:

- Optional extended instruction set designed to optimize re-entrant code • 100,000 Erase/Write Cycle Enhanced Flash Program Memory Typical

• 1,000,000 Erase/Write Cycle Data EEPROM Memory Typical

• Flash/Data EEPROM Retention: 100 Years Typical

• Self-Programmable under Software Control

• Priority Levels for Interrupts

• 8 x 8 Single-Cycle Hardware Multiplier

• Extended Watchdog Timer (WDT):

- Programmable period from 4 ms to 131s

• Single-Supply 5V In-Circuit Serial Programming™ (ICSP™) via Two Pins • In-Circuit Debug (ICD) via Two Pins

• Wide Operating Voltage Range: 2.0V to 5.5V

• Programmable Brown-out Reset (BOR) with Software Enable Option

Microchip Technology PIC18F4620-E/P technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology PIC18F4620-E/P.

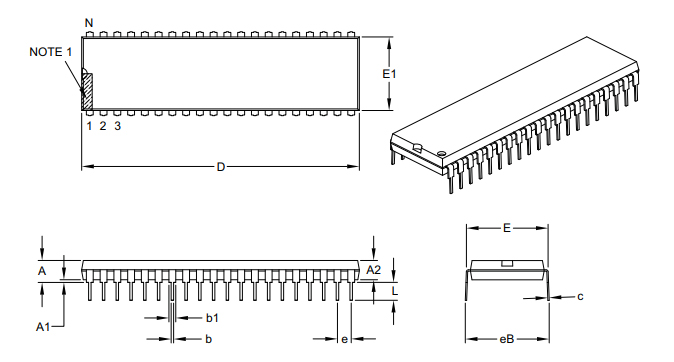

PIC18F4620 Package

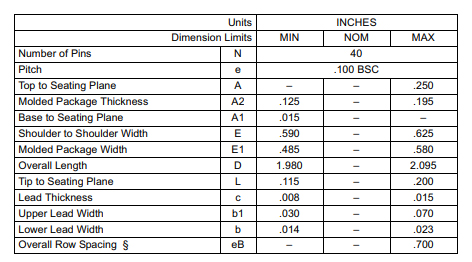

PIC18F4620 Dimensions
