Clock Buffer 4 Output CMOS Buffer The PL133-47 is an advanced fanout buffer design for high performance, low-power, small form factor applications. The PL133-47 accepts a reference clock input from DC to 150MHz and provides 4 outputs of the same frequency.
131
Apr 11, 2022
Rex Grant
Engineer It- How to measure additive jitter in fanout buffer
Clock Buffer 4 Output CMOS Buffer
The PL133-47 is an advanced fanout buffer design for high performance, low-power, small form factor applications. The PL133-47 accepts a reference clock input from DC to 150MHz and provides 4 outputs of the same frequency. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
PL133-47SI
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.73451 | $1.73 |
| 10+ | $1.63633 | $16.36 |
| 100+ | $1.54371 | $154.37 |
| 500+ | $1.45633 | $728.17 |
| 1000+ | $1.3739 | $1373.9 |

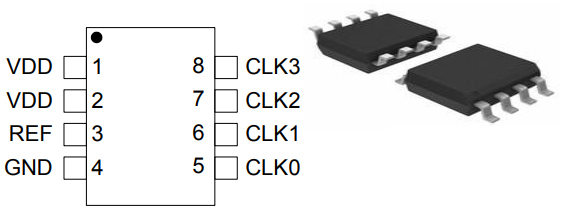

The following figure is the diagram of PL133-47 Pinout.
Pinout

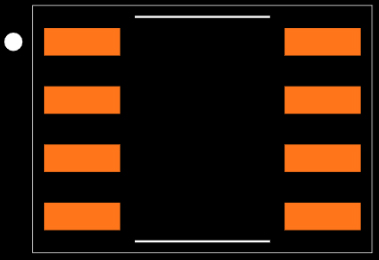

The following figure is the diagram of PL133-47 Footprint.
Footprint
The PL133-47 is an advanced fanout buffer design for high performance, low-power, small form factor applications. The PL133-47 accepts a reference clock input from DC to 150MHz and provides 4 outputs of the same frequency. The PL133-47 is offered in a SOP-8L package and it offers the best phase noise, additive jitter performance, and lowest power consumption of any comparable IC.
This article provides you with a basic overview of the PL133-47 Fanout Buffer IC, including its pin descriptions, features and specifications, etc., to help you quickly understand what PL133-47 is.
● 1:4 LVCMOS output fanout buffer for DC to150MHz
● Low Additive Phase Jitter of 60fs RMS
● 8mA Output Drive Strength
● Low power consumption for portable applications
● Low input-output delay
● Output-Output skew less than 250ps
● 2.5V to 3.3V, ±10% operation
● Operating temperature range from -40°C to 85°C
● Available in 8-Pin SOP GREEN/RoHS package
Microchip Technology PL133-47SI technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology PL133-47SI.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 6 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Frequency(Max) | 150MHz | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tube | |
| Published | 2012 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 8Terminations | |
| Type | Fanout Buffer (Distribution) | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Voltage - Supply | 2.25V~3.63V | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Number of Functions | 1Function | |
| Supply Voltage | 2.5V | |
| Base Part Number | PL133 | |
| JESD-30 Code | R-PDSO-G8 | |
| Supply Voltage-Max (Vsup) | 3.63V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Supply Voltage-Min (Vsup) | 2.25V | |
| Number of Circuits | 1Circuit | |
| Input | LVCMOS | |
| Ratio - Input:Output | 1:4 | |
| Differential - Input:Output | No/No | |
| Propagation Delay (tpd) | 9.2 ns | |
| Same Edge Skew-Max (tskwd) | 0.25 ns | |
| Number of True Outputs | 4True Outputs | |
| Length | 4.9mm | |
| Width | 3.9mm | |
| RoHS Status | ROHS3 Compliant |

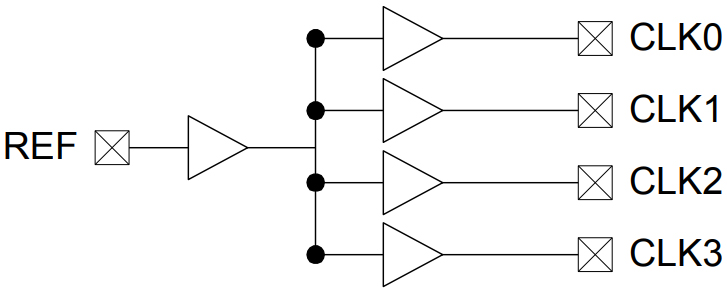

The following is the Block Diagram of PL133-47.
Block Diagram
The following diagram shows the PL133-47 Test Circuit.
Test Circuit
| Model number | Manufacturer | Description |
| PL133-47SC-R | Microchip Technology Inc | PL133 SERIES, LOW SKEW CLOCK DRIVER, 4 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), PDSO8 |
| 2305NZT-1DCGI8 | Integrated Device Technology Inc | Low Skew Clock Driver, PDSO8 |
| 2305NZT-1DCG8 | Integrated Device Technology Inc | SOIC-8, Reel |
| 2305NZT-1DCG | Integrated Device Technology Inc | SOIC-8, Tube |
| PL133-47SC | Microchip Technology Inc | PL133 SERIES, LOW SKEW CLOCK DRIVER, 4 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), PDSO8 |
| 2305NZT-1DCGI | Integrated Device Technology Inc | Low Skew Clock Driver, PDSO8 |

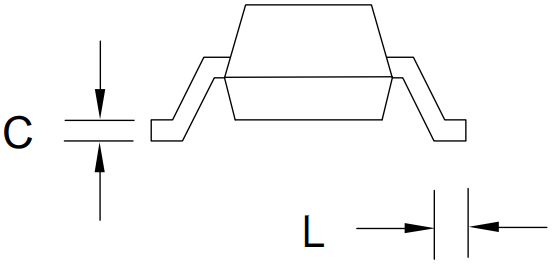

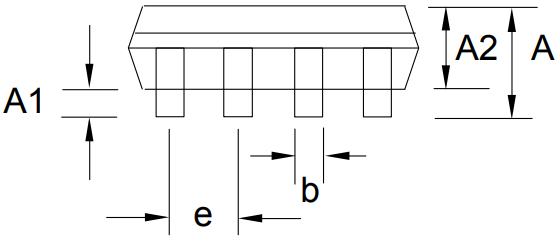

The following diagrams show the PL133-47 Package.
View A
View B
View C
Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.
Download datasheets and manufacturer documentation for PL133-47SI
