PL602-21 HCSL Compatible Clock Generator: Pinout, Equivalent and Datasheet

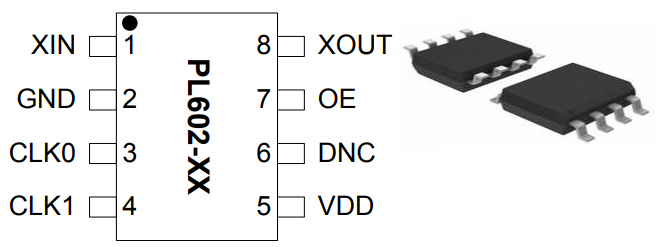

The following figure is the diagram of PL602-21 pinout.

Pinout

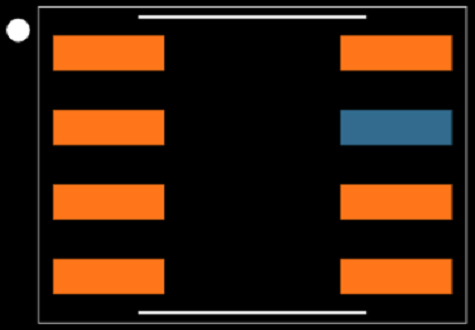

The following is PL602-21 Footprint.

Footprint

The PL602-21 is the smallest, high performance, lowest power differential output clock IC available for HCSL timing applications. PL602-21 offers -130dBc at 10kHz offset at 100MHz, with a very low jitter (2 ps TIE RMS), making it ideal for HCSL applications requiring small size and low power.

This article provides you with a basic overview of the PL602-21 HCSL Compatible Clock Generator, including its pin descriptions, features and specifications, etc., to help you quickly understand what PL602-21 is.

● Input Frequency: Fundamental Crystal or Reference Input: 25MHz

● Output Frequency: 100MHz differential outputs.

● Very low Jitter: 28ps Pk-Pk typ.

● Very low Phase Noise: -130 dBc at 10kHz offset at 100MHz

● No external loop filter is required

● Power supply range: 2.25V to 3.63V

● Operating temperature range from -40 ℃ to 85 ℃

● Available in 8-pin SOP Green/RoHS compliant package.

Microchip Technology PL602-21SC-R technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology PL602-21SC-R.

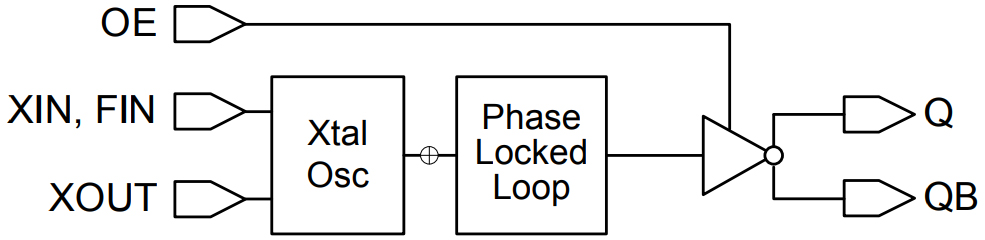

The following is the Block Diagram of PL602-21.

Block Diagram

The following diagrams show the PL602-21 package.

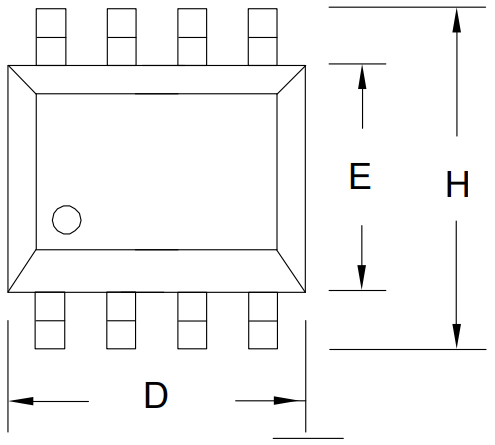

Top View

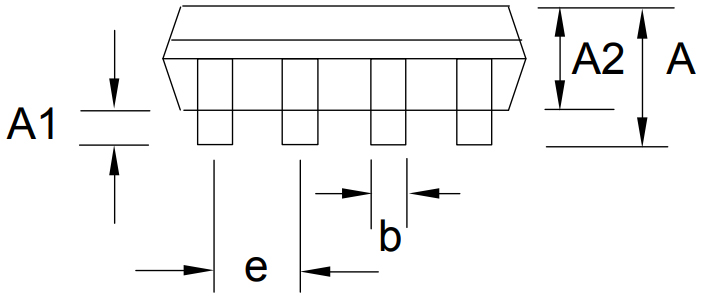

Side View

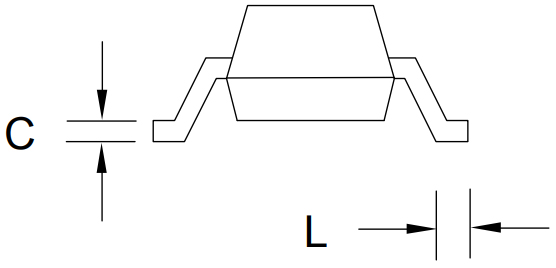

End View

Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.

Download datasheets and manufacturer documentation for Microchip Technology PL602-21SC-R.
