PL602-21TI-R Clock Generator: Pinout, Equivalent and Datasheet

Clock Generators & Support Products HCSL Compatible Clock Generator for PCI Express The PL602-21 is the smallest, high performance, lowest power differential output clock IC available for HCSL timing applications.

Feb 11, 2022

Arlen Onions

What is CLOCK GENERATOR? What does CLOCK GENERATOR mean? CLOCK GENERATOR meaning & explanation

Clock Generators & Support Products HCSL Compatible Clock Generator for PCI Express

The PL602-21 is the smallest, high performance, lowest power differential output clock IC available for HCSL timing applications. PL602-21 offers -130dBc at 10kHz offset at 100MHz, with a very low jitter (2 ps TIE RMS), making it ideal for HCSL applications requiring small size and low power. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.

PL602-21TI-R

40In Stock

Min.: 1 Mult.: 1

Quantity	Unit Price	Ext. Price
1+	$5.71272	$5.71
10+	$5.38936	$53.89
100+	$5.0843	$508.43
500+	$4.79651	$2398.25
1000+	$4.52501	$4525.01

Unit Price:$5.71272

Subtotal: $5.71

Quick Links

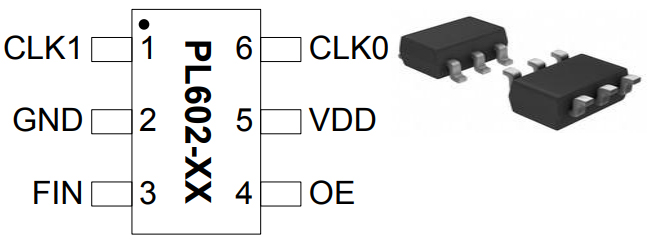

PL602-21TI-R Pinout

The following figure is the diagram of PL602-21TI-R Pinout.

Pinout

PL602-21TI-R CAD Model

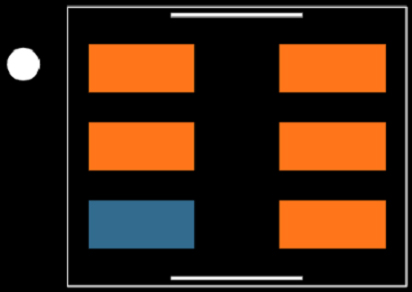

The following is the Footprint of PL602-21TI-R.

Footprint

PL602-21TI-R Overview

The PL602-21 is the smallest, high performance, lowest power differential output clock IC available for HCSL timing applications. PL602-21 offers -130dBc at 10kHz offset at 100MHz, with a very low jitter (2 ps TIE RMS), making it ideal for HCSL applications requiring small size and low power.

This article provides you with a basic overview of the PL602-21TI-R Clock Generator, including its pin descriptions, features and specifications, etc., to help you quickly understand what PL602-21TI-R is.

PL602-21TI-R Features

● Input Frequency:

◆ Fundamental Crystal or Reference Input: 25MHz

● Output Frequency: 100MHz differential outputs.

● Very low Jitter: 28ps Pk-Pk typ.

● Very low Phase Noise:

◆ -130 dBc at 10kHz offset at 100MHz

● No external loop filter is required

● Power supply range: 2.25V to 3.63V

● Operating temperature range from -40 ℃ to 85 ℃

● Available in 6-pin SOT Green/RoHS compliant package.

Specifications

Microchip Technology PL602-21TI-R technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology PL602-21TI-R.

PL602-21TI-R Tech Specifications

Microchip Technology PL602-21TI-R technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology PL602-21TI-R.

Product Attribute	Attribute Value
Factory Lead Time	6 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOT-23-6
Number of Pins	6Pins
Frequency(Max)	100MHz
Usage Level	Industrial grade
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Published	2006
JESD-609 Code	e3
Part Status	Active

Product Attribute	Attribute Value
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6Terminations
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn) - annealed
Voltage - Supply	2.25V~3.63V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	2.5V
Terminal Pitch	0.95mm
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PL602

Product Attribute	Attribute Value
Output	LVCMOS
Number of Circuits	1Circuit
uPs/uCs/Peripheral ICs Type	CLOCK GENERATOR, PROCESSOR SPECIFIC
Input	HCSL, Crystal
Ratio - Input:Output	1:1
Primary Clock/Crystal Frequency-Nom	25MHz
PLL	Yes
Differential - Input:Output	No/Yes
Divider/Multiplier	No/No
Length	2.9mm
RoHS Status	ROHS3 Compliant

View Similar

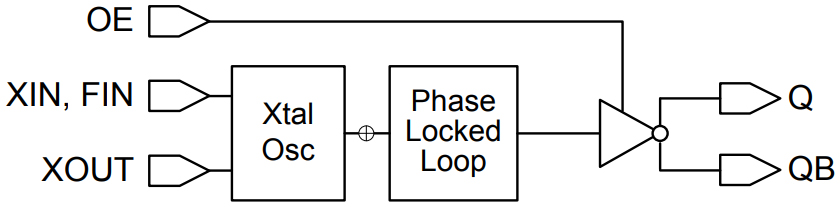

PL602-21TI-R Functional Block Diagram

The following is the Block Diagram of PL602-21TI-R.

Block Diagram

PL602-21TI-R Equivalent

Model number	Manufacturer	Description
PL602-21TC-R	PhaseLink Corporation	Clock Generator
841N4830BKILF	Integrated Device Technology Inc	VFQFPN-32, Tray
PI6C557-10LEX	Pericom Semiconductor Corporation	Clock Generator, 100MHz, CMOS, PDSO16, 0.173 INCH, GREEN, MO-153F/AB, TSSOP-16
PI6C49015LIE	Diodes Incorporated	Clock Generator, 100MHz, CMOS, PDSO28, 0.173 INCH, GREEN, MO-153F/AE, TSSOP-28
5V41064NLGI8	Integrated Device Technology Inc	VFQFPN-16, Reel
841N4830BKILFT	Integrated Device Technology Inc	VFQFPN-16, Reel
844S2416CKILFT	Integrated Device Technology Inc	VFQFPN-16, Reel
CY2XL11ZXIT	Cypress Semiconductor	Clock Generator, 100MHz, CMOS, PDSO8, TSSOP-8
PL602-21TI	Microchip Technology Inc	100MHz, PROC SPECIFIC CLOCK GENERATOR, PDSO6
PL602-21SI	PhaseLink Corporation	Clock Generator

PL602-21TI-R Package

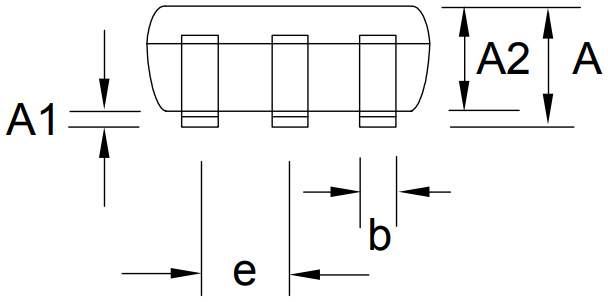

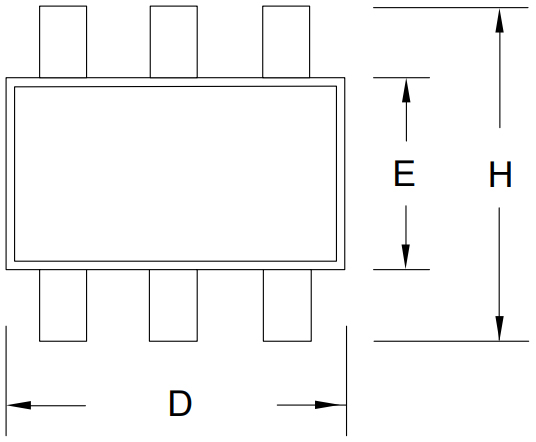

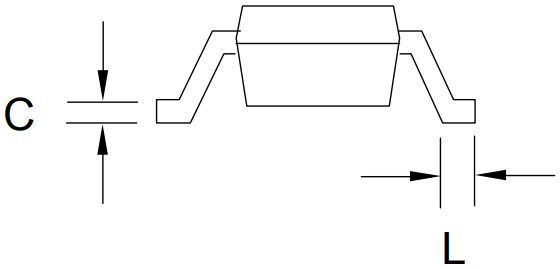

The following diagrams show the PL602-21TI-R Package.

View A

View B

View C

PL602-21TI-R Manufacturer

Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.

Datasheet PDF

Download datasheets and manufacturer documentation for Microchip Technology PL602-21TI-R.

PL602-21TI-R Documents

Download datasheets and manufacturer documentation for PL602-21TI-R

Datasheets

PL602-xx

PL602-21TI-R-Microchip-datasheet-28504800.pdf

PCN Packaging

Packing Changes 10/Oct/2016

ConflictMineralStatement

Microchip-company-68.pdf

Frequently Asked Questions

How many pins of PL602-21TI-R?

6 Pins.

What’s the operating temperature of PL602-21TI-R?

-40°C~85°C.

What is the essential property of the PL602-21?

The PL602-21 is the smallest, high performance, lowest power differential output clock IC available for HCSL timing applications.

FAQ
