Transistors - Bipolar (BJT) - Single TRANS NPN 300V 0.1A SOT23
PMBTA42 is an NPN high-voltage transistor. This article will unlock its pinout, datasheet, feature and more details about PMBTA42.
PMBTA42 Transistor: NPN High-Voltage, SOT23, Datasheet, Pinout
Transistors - Bipolar (BJT) - Single TRANS NPN 300V 0.1A SOT23 PMBTA42 is an NPN high-voltage transistor. This article will unlock its pinout, datasheet, feature and more details about PMBTA42.
108
Dec 14, 2021
Audrey Dunlop
PMBTA42,215
15000In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.17968 | $0.18 |
| 10+ | $0.1695 | $1.7 |
| 100+ | $0.15991 | $15.99 |
| 500+ | $0.15086 | $75.43 |
| 1000+ | $0.14232 | $142.32 |
Unit Price:$0.17968
Subtotal: $0.18
Quick Links
PMBTA42 Pinout
PMBTA42 CAD Model
PMBTA42 Symbol
PMBTA42 Footprint
PMBTA42 3D Model
PMBTA42 Description
PMBTA42 is an NPN high-voltage transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.
PNP complement: PMBTA92.
PMBTA42 Feature
High voltage (max. 300 V)
PMBTA42 Application
Telephony and professional communication equipment
Specifications
Nexperia USA Inc. PMBTA42,215 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. PMBTA42,215.
PMBTA42,215 Tech Specifications
PMBTA42,215 Tech Specifications
Nexperia USA Inc. PMBTA42,215 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. PMBTA42,215.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 4 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Surface Mount | YES | |
| Number of Pins | 3Pins | |
| Transistor Element Material | SILICON | |
| Current-Collector (Ic) (Max) | 100mA | |
| Number of Elements | 1 Element | |
| Operating Temperature | 150°C TJ | |
| Packaging | Tape & Reel (TR) | |
| Series | Automotive, AEC-Q101 | |
| Published | 2008 |
| Product Attribute | Attribute Value | |
|---|---|---|
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin (Sn) | |
| HTS Code | 8541.21.00.95 | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Base Part Number | PMBTA42 | |
| Pin Count | 3 | |
| Configuration | SINGLE |
| Product Attribute | Attribute Value | |
|---|---|---|
| Power - Max | 250mW | |
| Polarity/Channel Type | NPN | |
| Transistor Type | NPN | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 30mA 10V | |
| Current - Collector Cutoff (Max) | 100nA ICBO | |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 2mA, 20mA | |
| Voltage - Collector Emitter Breakdown (Max) | 300V | |
| Transition Frequency | 50MHz | |
| Frequency - Transition | 50MHz | |
| RoHS Status | ROHS3 Compliant |

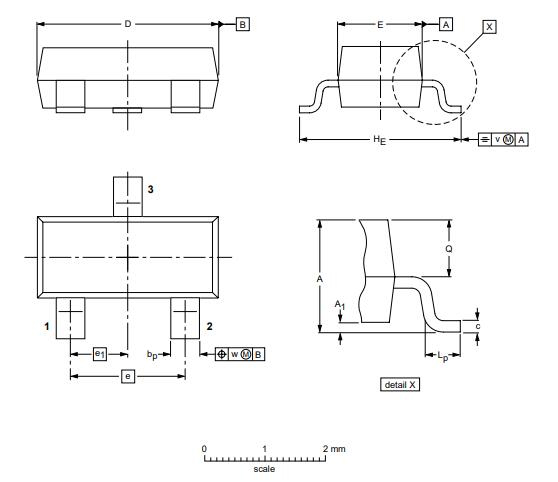

PMBTA42 Package
PMBTA42 Manufacturer
Nexperia is a dedicated global leader in Discretes, Logic and MOSFETs devices. This new company became independent at the beginning of 2017. Focused on efficiency, Nexperia produces consistently reliable semiconductor components at a high volume: 85 billion annually. The company’s extensive portfolio meets the stringent standards set by the Automotive industry. And industry-leading small packages, produced in their own manufacturing facilities, combine power and thermal efficiency with best-in-class quality levels. Built on over half a century of expertise, Nexperia has 11,000 employees across Asia, Europe and the U.S. supporting customers globally.
Datasheet PDF
PMBTA42,215 Documents
PMBTA42,215 Documents
Download datasheets and manufacturer documentation for PMBTA42,215
Datasheets
PMBTA42
PCN Design/Specification
SOT23 Package Assembly Material Update 11/Sep/2014
Resin Hardener 02/Jul/2013
RohsStatement
NXP-Semiconductors-company-12.pdf
Frequently Asked Questions
What is a high voltage transistor?
They can switch high-power electronics on and off extremely quickly, and they're an integral part of electric vehicles.
What is NPN vs PNP?
PNP sensors produce a positive output to your industrial controls input, while NPN sensors produce a negative signal during an “on” state. ... NPN, or “sinking” output sensors, work in the opposite way, sinking ground voltage to input when it's on.
What is the PNP complement of PMBTA42?
PMBTA92.
What is the voltage of NPN transistor?
An NPN Transistor has a DC base bias voltage, Vb of 10v and an input base resistor, Rb of 100kΩ. What will be the value of the base current into the transistor? Therefore, Ib = 93µA. The Common Emitter Configuration.
FAQ
What is a high voltage transistor?
They can switch high-power electronics on and off extremely quickly, and they're an integral part of electric vehicles.
What is NPN vs PNP?
PNP sensors produce a positive output to your industrial controls input, while NPN sensors produce a negative signal during an “on” state. ... NPN, or “sinking” output sensors, work in the opposite way, sinking ground voltage to input when it's on.
What is the PNP complement of PMBTA42?
PMBTA92.
What is the voltage of NPN transistor?
An NPN Transistor has a DC base bias voltage, Vb of 10v and an input base resistor, Rb of 100kΩ. What will be the value of the base current into the transistor? Therefore, Ib = 93µA. The Common Emitter Configuration.
