PMEG10010ELRX Schottky Barrier Rectifier: 100V, 1A, Datasheet

PMEG10010ELRX Pinout

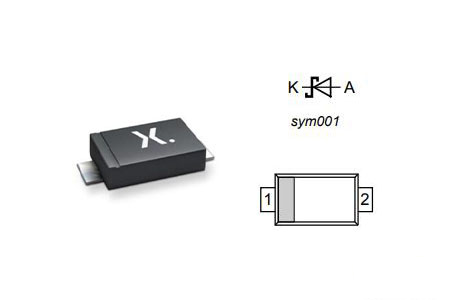

PMEG10010ELRX is a Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD123W small and flat lead Surface-Mounted Device  (SMD) plastic package.

• Average forward current: IF(AV)≤ 1  A
• Reverse voltage: VR ≤ 100 V
• Low forward voltage: VF  = 710  mV
• High power capability  due to clip-bonding technology
• Extremely low leakage current IR = 40  nA
• High-temperature Tj≤ 175 °C
• AEC-Q101 qualified
• Capable for reflow and wave soldering

• Low voltage rectification

• High-efficiency DC-to-DC conversion

• Switch mode power supply

• Reverse polarity protection

• Low power consumption applications

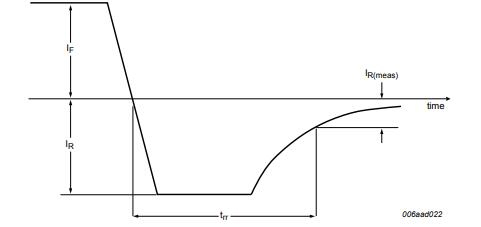

Reverse recovery definition

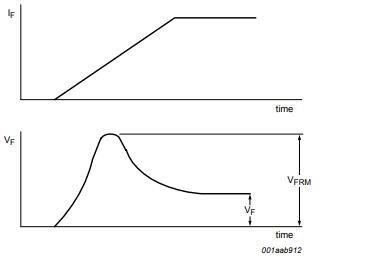

Forward recovery definition

Duty cycle definition

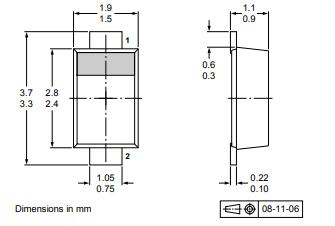

PMEG10010ELRX Pacakge
