NEXPERIA - PMEG3050EP,115 - DIODE, SCHOTTKY, 5A, 30V, SOD-128-2
PMEG3050EP is a 5 A low VF MEGA Schottky barrier rectifier. This article will unlock its datasheet, pinout, feature and more details about PMEG3050EP.
PMEG3050EP Schottky Barrier Rectifier: 30V, 5A, Datasheet PDF
NEXPERIA - PMEG3050EP,115 - DIODE, SCHOTTKY, 5A, 30V, SOD-128-2 PMEG3050EP is a 5 A low VF MEGA Schottky barrier rectifier. This article will unlock its datasheet, pinout, feature and more details about PMEG3050EP.
294
Jan 22, 2022
Max Job
PMEG3050EP,115
10000In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.70831 | $0.71 |
| 10+ | $0.66822 | $6.68 |
| 100+ | $0.6304 | $63.04 |
| 500+ | $0.59471 | $297.35 |
| 1000+ | $0.56105 | $561.05 |
Unit Price:$0.70831
Subtotal: $0.71
Quick Links

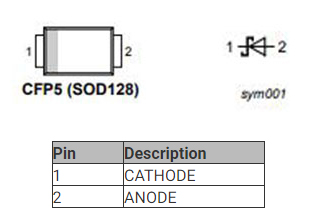

PMEG3050EP Pinout

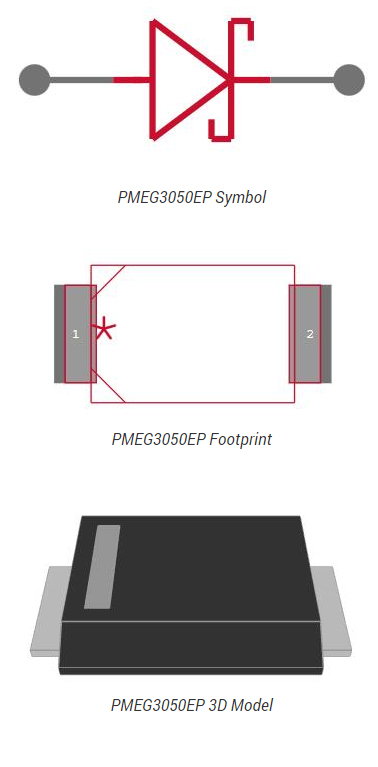

PMEG3050EP CAD Model
PMEG3050EP Description
PMEG3050EP is a Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD128 small and flat lead SurfaceMounted Device (SMD) plastic package.
PMEG3050EP Feature
• Average forward current: IF(AV) ≤ 5 A
• Reverse voltage: VR ≤ 30 V
• Low forward voltage
• High power capability due to clip-bond technology
• AEC-Q101 qualified
• Small and flat lead SMD plastic package
• Capable for reflow and wave soldering
PMEG3050EP Application
• Low voltage rectification
• High-efficiency DC-to-DC conversion
• Switch Mode Power Supply (SMPS)
• Reverse polarity protection
• Low power consumption applications
PMEG3050EP Test Circuit
The following figure shows the test circuit of PMEG3050EP
Specifications
Nexperia USA Inc. PMEG3050EP,115 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. PMEG3050EP,115.
PMEG3050EP,115 Tech Specifications
PMEG3050EP,115 Tech Specifications
Nexperia USA Inc. PMEG3050EP,115 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. PMEG3050EP,115.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 4 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | SOD-128 | |
| Number of Pins | 2Pins | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Packaging | Tape & Reel (TR) | |
| Published | 2009 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| Terminal Finish | Tin (Sn) | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -55°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Applications | EFFICIENCY | |
| Max Power Dissipation | 625mW | |
| Terminal Position | DUAL | |
| Terminal Form | FLAT | |
| Base Part Number | PMEG3050 | |
| Pin Count | 2 | |
| Element Configuration | Single | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Diode Type | Schottky | |
| Current - Reverse Leakage @ Vr | 8mA @ 30V | |
| Voltage - Forward (Vf) (Max) @ If | 360mV @ 5A | |
| Forward Current | 5A | |
| Operating Temperature - Junction | 150°C Max | |
| Output Current-Max | 5A | |
| Forward Voltage | 360mV | |
| Max Reverse Voltage (DC) | 30V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Average Rectified Current | 5A | |
| Number of Phases | 1Phase | |
| Peak Reverse Current | 8mA | |
| Max Repetitive Reverse Voltage (Vrrm) | 30V | |
| Capacitance @ Vr, F | 800pF @ 1V 1MHz | |
| Peak Non-Repetitive Surge Current | 70A | |
| Reverse Voltage | 30V | |
| Max Forward Surge Current (Ifsm) | 70A | |
| Max Junction Temperature (Tj) | 150°C | |
| Ambient Temperature Range High | 150°C | |
| Height | 1.1mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

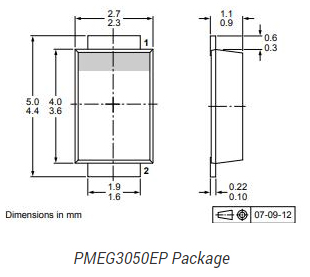

PMEG3050EP Package
PMEG3050EP Manufacturer
Nexperia is a dedicated global leader in Discretes, Logic and MOSFETs devices. This new company became independent at the beginning of 2017. Focused on efficiency, Nexperia produces consistently reliable semiconductor components at a high volume: 85 billion annually. The company’s extensive portfolio meets the stringent standards set by the Automotive industry. And industry-leading small packages, produced in their own manufacturing facilities, combine power and thermal efficiency with best-in-class quality levels. Built on over half a century of expertise, Nexperia has 11,000 employees across Asia, Europe and the U.S. supporting customers globally.
The more similar parts from Nexperia such as PMEG045V100EPDAZ, PMEG100V080ELPDZ, PMEG3002AEL, 315,
PMEG3002AELD,315, PMEG3005EI,D,315, PMEG2005BELD, 315, PMEG4005EGWX and etc.
Datasheet PDF
PMEG3050EP,115 Documents
PMEG3050EP,115 Documents
Download datasheets and manufacturer documentation for PMEG3050EP,115
Datasheets
PMEG3050EP
RohsStatement
NXP-Semiconductors-company-12.pdf
Frequently Asked Questions
What type of plastic package is PMEG3050EP encapsulated in?
SOD128.
What is the reverse voltage of PMEG3050EP?
VR ≤ 30 V.
What is the small and flat lead SMD plastic package capable of?
Reflow and wave soldering.
What is the use of Schottky barrier diode?
Schottky diodes are used for their low turn-on voltage, fast recovery time and low-loss energy at higher frequencies. These characteristics make Schottky diodes capable of rectifying a current by facilitating a quick transition from conducting to blocking state.
FAQ
What type of plastic package is PMEG3050EP encapsulated in?
SOD128.
What is the reverse voltage of PMEG3050EP?
VR ≤ 30 V.
What is the small and flat lead SMD plastic package capable of?
Reflow and wave soldering.
What is the use of Schottky barrier diode?
Schottky diodes are used for their low turn-on voltage, fast recovery time and low-loss energy at higher frequencies. These characteristics make Schottky diodes capable of rectifying a current by facilitating a quick transition from conducting to blocking state.
