NEXPERIA - PMEG4010BEA,115 - Schottky-Gleichrichterdiode, 40 V, 1 A, Einfach, SOD-323, 2 Pin(s), 640 mV

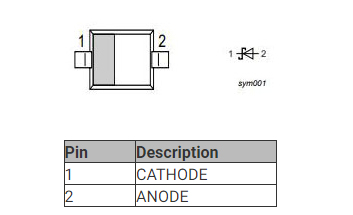

PMEG4010BEA is a 1 A very low VF MEGA Schottky barrier rectifier. This article will cover its pinout, datasheet, feature, and more details about PMEG4010BEA.
PMEG4010BEA,115
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.212 | $0.21 |
| 10+ | $0.2 | $2 |
| 100+ | $0.18868 | $18.87 |
| 500+ | $0.178 | $89 |
| 1000+ | $0.16792 | $167.92 |
PMEG4010BEA is a Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a very small SOD323 (SC-76) and ultra-small SOT666 SMD plastic package.
• Forward current: 1 A
• Reverse voltages: 20 V, 30 V, 40 V
• Very low forward voltage
• Ultra-small and very small plastic SMD package
• Power dissipation comparable to SOT23.
• High-efficiency DC-to-DC conversion
• Voltage clamping
• Protection circuits
• Low voltage rectification
• Blocking diodes
• Low power consumption applications
The alternative for PMEG4010BEA
PMEG4010BEA,135
PMEG4010BEA,115
Nexperia USA Inc. PMEG4010BEA,115 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. PMEG4010BEA,115.
Nexperia USA Inc. PMEG4010BEA,115 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. PMEG4010BEA,115.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 4 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-76, SOD-323 | |
| Surface Mount | YES | |
| Number of Pins | 2Pins | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Operating Temperature (Max.) | 150°C | |
| Packaging | Tape & Reel (TR) | |
| Published | 2007 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 2Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin (Sn) | |
| HTS Code | 8541.10.00.50 | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | PMEG4010 | |
| Pin Count | 2 | |
| Qualification Status | Not Qualified | |
| Configuration | SINGLE | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Diode Type | Schottky | |
| Current - Reverse Leakage @ Vr | 100μA @ 40V | |
| Voltage - Forward (Vf) (Max) @ If | 640mV @ 1A | |
| Forward Current | 1A | |
| Operating Temperature - Junction | 150°C Max | |
| Output Current-Max | 1A | |
| Voltage - DC Reverse (Vr) (Max) | 40V | |
| Current - Average Rectified (Io) | 1A DC | |
| Forward Voltage | 640mV | |
| Capacitance @ Vr, F | 50pF @ 1V 1MHz | |
| RoHS Status | ROHS3 Compliant |
Nexperia is a dedicated global leader in Discretes, Logic and MOSFETs devices. This new company became independent at the beginning of 2017. Focused on efficiency, Nexperia produces consistently reliable semiconductor components at a high volume: 85 billion annually. The company’s extensive portfolio meets the stringent standards set by the Automotive industry. And industry-leading small packages, produced in their own manufacturing facilities, combine power and thermal efficiency with best-in-class quality levels. Built on over half a century of expertise, Nexperia has 11,000 employees across Asia, Europe and the U.S. supporting customers globally.

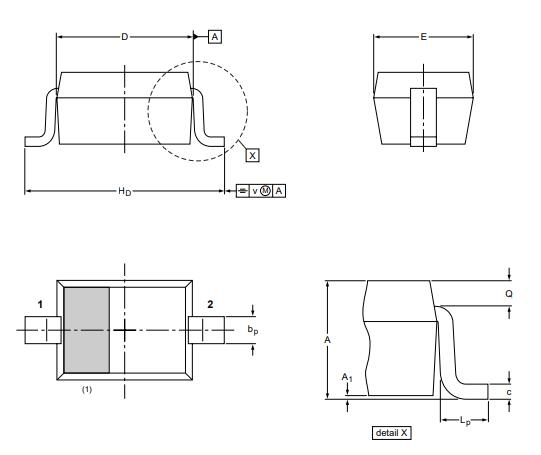

PMEG4010BEA Package
Download datasheets and manufacturer documentation for PMEG4010BEA,115
