PMEG6010CEH Schottky Diode: PMEG6010CEH Datasheet, SOD123, 9A

Schottky diode Configuration: Single Housing type: SOD-123F Peak conducting-state current: 9 A PMEG6010CEH is a 1 A very low VF MEGA Schottky barrier rectifier. This article will unlock its pinout, datasheet, feature and more about PMEG6010CEH.

147

Feb 4, 2022

Steward Hudson

Schottky diode Configuration: Single Housing type: SOD-123F Peak conducting-state current: 9 A

PMEG6010CEH is a 1 A very low VF MEGA Schottky barrier rectifier. This article will unlock its pinout, datasheet, feature and more about PMEG6010CEH.

PMEG6010CEH,115

60000In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $0.42629$0.43
10+ $0.40216$4.02
100+ $0.3794$37.94
500+ $0.35792$178.96
1000+ $0.33766$337.66
Unit Price:$0.42629
Subtotal: $0.43
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

PMEG6010CEH Pinout

PMEG6010CEH Pinout

PMEG6010CEH CAD Model

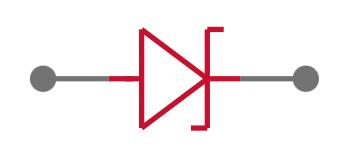

Symbol

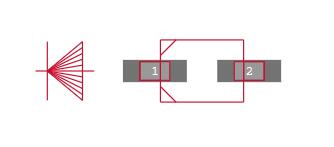

Footprint



3D Model

PMEG6010CEH Description

PMEG6010CEH is a Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in small and flat lead Surface-Mounted Device (SMD) plastic packages.

PMEG6010CEH Feature

■ Forward current: IF ≤ 1 A
■ Reverse voltage: VR ≤ 60 V
■ Very low forward voltage
■ Small and flat lead SMD plastic packages

PMEG6010CEH Application

■ Low voltage rectification
■ High-efficiency DC-to-DC conversion
■ Switch-mode power supply
■ Reverse polarity protection
■ Low power consumption applications

PMEG6010CEH Test Information

PMEG6010CEH Test Circuit-Duty cycle definition

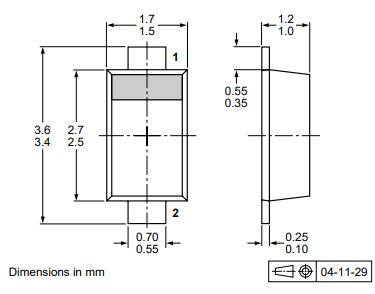

PMEG6010CEH Package

PMEG6010CEH Package

PMEG6010CEH Manufacturer

Nexperia is a dedicated global leader in Discretes, Logic and MOSFETs devices. This new company became independent at the beginning of 2017. Focused on efficiency, Nexperia produces consistently reliable semiconductor components at a high volume: 85 billion annually. The company’s extensive portfolio meets the stringent standards set by the Automotive industry. And industry-leading small packages, produced in their own manufacturing facilities, combine power and thermal efficiency with best-in-class quality levels. Built on over half a century of expertise, Nexperia has 11,000  employees across Asia, Europe and the U.S. supporting.

Specifications

Nexperia USA Inc. PMEG6010CEH,115 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. PMEG6010CEH,115.

PMEG6010CEH,115 Tech Specifications

Nexperia USA Inc. PMEG6010CEH,115 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. PMEG6010CEH,115.

Product Attribute Attribute Value
Factory Lead Time4 Weeks
Mounting TypeSurface Mount
Package / CaseSOD-123F
Surface MountYES
Number of Pins2Pins
Diode Element MaterialSILICON
Number of Elements1 Element
PackagingTape & Reel (TR)
Published2007
JESD-609 Codee3
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations2Terminations
ECCN CodeEAR99
Product Attribute Attribute Value
Terminal FinishTin (Sn)
HTS Code8541.10.00.80
Terminal PositionDUAL
Terminal FormFLAT
Peak Reflow Temperature (Cel)260
Time@Peak Reflow Temperature-Max (s)40
Base Part NumberPMEG6010
Pin Count2
Qualification StatusNot Qualified
ConfigurationSINGLE
SpeedFast Recovery =< 500ns, > 200mA (Io)
Diode TypeSchottky
Current - Reverse Leakage @ Vr50μA @ 60V
Voltage - Forward (Vf) (Max) @ If660mV @ 1A
Product Attribute Attribute Value
Forward Current1A
Operating Temperature - Junction150°C Max
Output Current-Max1A
Current - Average Rectified (Io)1A DC
Forward Voltage660mV
Peak Reverse Current11μA
Capacitance @ Vr, F68pF @ 1V 1MHz
Reverse Voltage60V
Max Forward Surge Current (Ifsm)9A
Max Junction Temperature (Tj)150°C
Ambient Temperature Range High150°C
Height1.2mm
RoHS StatusROHS3 Compliant
0 Products View Similar

Datasheet PDF

Download datasheets and manufacturer documentation for Nexperia USA Inc. PMEG6010CEH,115.

PMEG6010CEH,115 Documents

Download datasheets and manufacturer documentation for PMEG6010CEH,115

Frequently Asked Questions

What is a Planar Maximum Efficiency General Application?
PMEG6010CEH.
What is a Schottky barrier rectifier?
The Schottky diode or Schottky Barrier Rectifier is named after the German physicist “Walter H. Schottky”, which is a semiconductor diode designed with metal by the semiconductor junction. It has a low-forward voltage drop and a very rapid switching act. ... Actually, it is one of the oldest semiconductor devices in reality.
What is the use of Schottky barrier diode?
Schottky diodes are used for their low turn-on voltage, fast recovery time and low-loss energy at higher frequencies. These characteristics make Schottky diodes capable of rectifying a current by facilitating a quick transition from conducting to blocking state.
FAQ
What is a Planar Maximum Efficiency General Application?
PMEG6010CEH.
What is a Schottky barrier rectifier?
The Schottky diode or Schottky Barrier Rectifier is named after the German physicist “Walter H. Schottky”, which is a semiconductor diode designed with metal by the semiconductor junction. It has a low-forward voltage drop and a very rapid switching act. ... Actually, it is one of the oldest semiconductor devices in reality.
What is the use of Schottky barrier diode?
Schottky diodes are used for their low turn-on voltage, fast recovery time and low-loss energy at higher frequencies. These characteristics make Schottky diodes capable of rectifying a current by facilitating a quick transition from conducting to blocking state.
