Diodes - Rectifiers - Single PMEG6010CEJ Series 60 V 1 A Low VF MEGA Schottky Barrier Rectifier - SOD-323F
PMEG6010CEJ Schottky Diode belongs to 1 A very low VF MEGA Schottky barrier rectifiers. This article unlocks its pinout, datasheet, application, alternatives and more details about PMEG6010CEJ.
PMEG6010CEJ,115
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.87236 | $0.87 |
| 10+ | $0.82298 | $8.23 |
| 100+ | $0.77639 | $77.64 |
| 500+ | $0.73245 | $366.23 |
| 1000+ | $0.69099 | $690.99 |

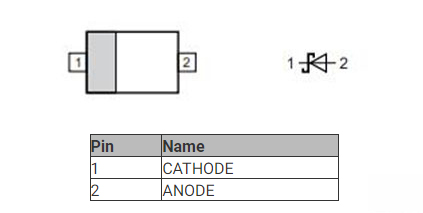

PMEG6010CEJ Symbol

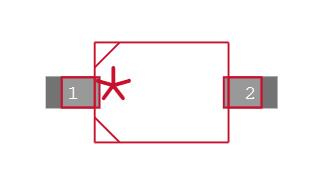

PMEG6010CEJ Footprint
PMEG6010CEJ 3D Model
PMEG6010CEJ belongs to Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection, encapsulated in small and flat lead Surface-Mounted Device (SMD) plastic packages.
■ Forward current: IF ≤ 1 A
■ Reverse voltage: VR ≤ 60 V
■ Very low forward voltage
■ Small and flat lead SMD plastic packages
■ Low voltage rectification
■ High-efficiency DC-to-DC conversion
■ Switch-mode power supply
■ Reverse polarity protection
■ Low power consumption applications
The alternatives for PMEG6010CEJ
PMEG6010CEJ,115
PMEG6010CEH
PMEG6010CEH,115
The test circuit of PMEG6010CEJ is shown below
PMEG6010CEJ Test Circuit
Nexperia USA Inc. PMEG6010CEJ,115 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. PMEG6010CEJ,115.
Nexperia USA Inc. PMEG6010CEJ,115 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. PMEG6010CEJ,115.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 4 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-90, SOD-323F | |
| Surface Mount | YES | |
| Number of Pins | 2Pins | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 0.35W | |
| Packaging | Tape & Reel (TR) | |
| Published | 2007 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Finish | Tin (Sn) | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -65°C | |
| HTS Code | 8541.10.00.50 | |
| Terminal Position | DUAL | |
| Terminal Form | FLAT | |
| Peak Reflow Temperature (Cel) | 260 | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | PMEG6010 | |
| Pin Count | 2 | |
| Qualification Status | Not Qualified | |
| Configuration | SINGLE | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Diode Type | Schottky | |
| Current - Reverse Leakage @ Vr | 50μA @ 60V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Forward (Vf) (Max) @ If | 660mV @ 1A | |
| Forward Current | 1A | |
| Operating Temperature - Junction | 150°C Max | |
| Output Current-Max | 1A | |
| Voltage - DC Reverse (Vr) (Max) | 60V | |
| Current - Average Rectified (Io) | 1A DC | |
| Peak Reverse Current | 50μA | |
| Capacitance @ Vr, F | 68pF @ 1V 1MHz | |
| Reverse Voltage | 60mV | |
| Max Forward Surge Current (Ifsm) | 10A | |
| Max Junction Temperature (Tj) | 150°C | |
| Ambient Temperature Range High | 150°C | |
| Height | 800μm | |
| RoHS Status | ROHS3 Compliant |
