PMLL4148L Series 100 V 200 mA Surface Mount Switching Diode - SOD-80C PMLL4148L is a Single high-speed switching diode. This post will cover its pinout, feature, application and more details about PMLL4148L.
117
Jan 26, 2022
Tess Lawson
Diodes Explained - The basics how diodes work working principle pn junction
PMLL4148L Series 100 V 200 mA Surface Mount Switching Diode - SOD-80C
PMLL4148L is a Single high-speed switching diode. This post will cover its pinout, feature, application and more details about PMLL4148L.

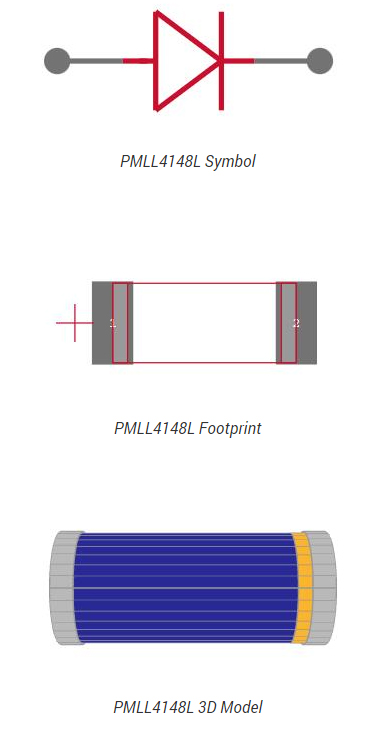

PMLL4148L,135
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.09704 | $0.1 |
| 500+ | $0.07135 | $35.67 |
| 1000+ | $0.05946 | $59.46 |
| 2000+ | $0.05455 | $109.1 |
| 5000+ | $0.05098 | $254.9 |
| 10000+ | $0.04742 | $474.2 |
| 15000+ | $0.04586 | $687.9 |
| 50000+ | $0.0451 | $2255 |

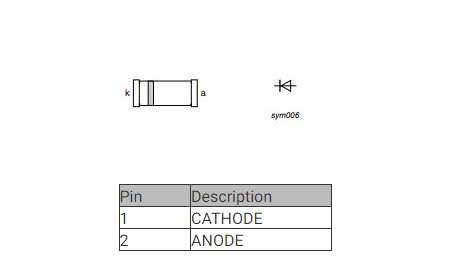

PMLL4148L is Single high-speed switching diodes, fabricated in planar technology and encapsulated in small hermetically sealed glass SOD80C Surface -Mounted Device (SMD) packages.
High switching speed: trr ≤ 4 ns
Reverse voltage: VR ≤ 75 V
Repetitive peak reverse voltage: VRRM ≤ 100 V
Repetitive peak forward current: IFRM ≤ 450 mA
Small hermetically sealed glass SMD package
High-speed switching
Reverse polarity protection
The alternative for PMLL4148L:
PMLL4148L,135
PMLL4448,135
PMLL4448L,115

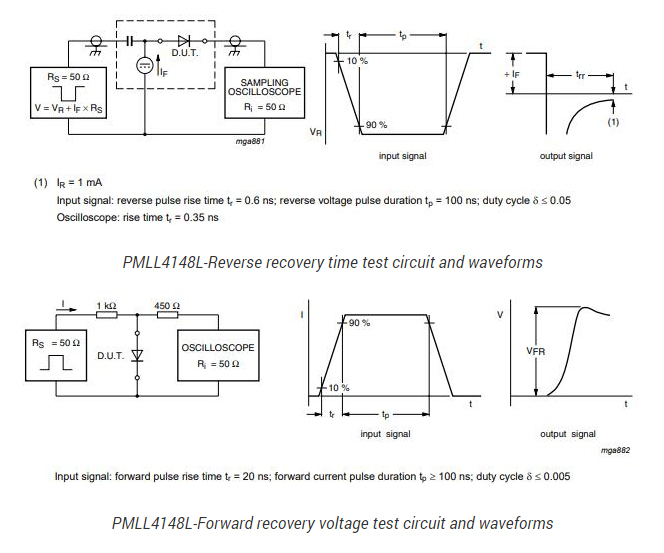

The following circuit shows the PMLL4448L test circuit
Nexperia USA Inc. PMLL4148L,135 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. PMLL4148L,135.
Nexperia USA Inc. PMLL4148L,135 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. PMLL4148L,135.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 6 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 | |
| Surface Mount | YES | |
| Number of Pins | 2Pins | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 0.5W | |
| Packaging | Tape & Reel (TR) | |
| Published | 2011 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 2Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin (Sn) | |
| HTS Code | 8541.10.00.70 | |
| Terminal Position | END | |
| Terminal Form | WRAP AROUND | |
| Peak Reflow Temperature (Cel) | 260 | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | LL4148 | |
| Pin Count | 2 | |
| Reference Standard | IEC-60134 | |
| Configuration | SINGLE | |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Product Attribute | Attribute Value | |
|---|---|---|
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 25nA @ 20V | |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 50mA | |
| Case Connection | ISOLATED | |
| Operating Temperature - Junction | 200°C Max | |
| Voltage - DC Reverse (Vr) (Max) | 75V | |
| Current - Average Rectified (Io) | 200mA DC | |
| Reverse Recovery Time | 4ns | |
| Rep Pk Reverse Voltage-Max | 100V | |
| Capacitance @ Vr, F | 4pF @ 0V 1MHz | |
| RoHS Status | ROHS3 Compliant |

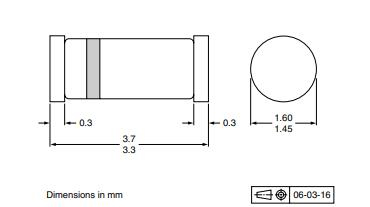

PMLL4148L Package Outline
Nexperia is a dedicated global leader in Discretes, Logic and MOSFETs devices. This new company became independent at the beginning of 2017. Focused on efficiency, Nexperia produces consistently reliable semiconductor components at a high volume: 85 billion annually. The company’s extensive portfolio meets the stringent standards set by the Automotive industry. And industry-leading small packages, produced in their own manufacturing facilities, combine power and thermal efficiency with best-in-class quality levels. Built on over half a century of expertise, Nexperia has 11,000 employees across Asia, Europe and the U.S. supporting customers globally.
Download datasheets and manufacturer documentation for Nexperia USA Inc. PMLL4148L,135.
Download datasheets and manufacturer documentation for PMLL4148L,135
