Transistors - FETs, MOSFETs - Single MOSFET P-CH 20V 2.8A TO236AB PMV65XP is a 20 V, single P-channel Trench MOSFET. This article mainly covers its datasheet, alternatives, pinout and more details about PMV65XP.
94
Dec 13, 2021
Burke Bryan
Introduction to Field-Effect Transistors (FETs)
Transistors - FETs, MOSFETs - Single MOSFET P-CH 20V 2.8A TO236AB
PMV65XP is a 20 V, single P-channel Trench MOSFET. This article mainly covers its datasheet, alternatives, pinout and more details about PMV65XP.
PMV65XPVL
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.48371 | $0.48 |
| 10+ | $0.45633 | $4.56 |
| 100+ | $0.4305 | $43.05 |
| 500+ | $0.40613 | $203.07 |
| 1000+ | $0.38314 | $383.14 |

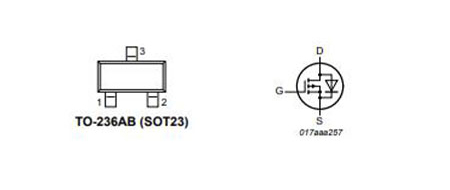

PMV65XP Symbol

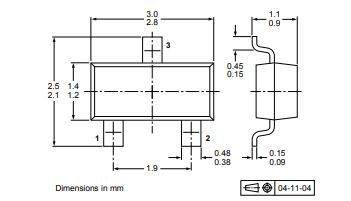

PMV65XP Footprint
PMV65XP 3D Model
PMV65XP is a P-channel enhancement mode Field-Effect Transistor (FET) in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
• Low threshold voltage
• Low on-state resistance
• Trench MOSFET technology
• Low power DC-to-DC converters
• Load switching
• Battery management
• Battery-powered portable equipment
The alternatives for PMV65XP:
PMV65XPVL
PMV65XP,215
Nexperia USA Inc. PMV65XPVL technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. PMV65XPVL.
Nexperia USA Inc. PMV65XPVL technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. PMV65XPVL.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 4 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Surface Mount | YES | |
| Transistor Element Material | SILICON | |
| Current - Continuous Drain (Id) @ 25℃ | 2.8A Ta | |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V 4.5V | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 480mW Ta | |
| Operating Temperature | -55°C~150°C TJ | |
| Packaging | Tape & Reel (TR) | |
| Published | 2013 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Active | |
| Number of Terminations | 3Terminations | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Pin Count | 3 | |
| Reference Standard | IEC-60134 | |
| JESD-30 Code | R-PDSO-G3 | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| Operating Mode | ENHANCEMENT MODE | |
| FET Type | P-Channel | |
| Transistor Application | SWITCHING | |
| Rds On (Max) @ Id, Vgs | 74m Ω @ 2.8A, 4.5V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Vgs(th) (Max) @ Id | 900mV @ 250μA | |
| Input Capacitance (Ciss) (Max) @ Vds | 744pF @ 20V | |
| Gate Charge (Qg) (Max) @ Vgs | 7.7nC @ 4V | |
| Drain to Source Voltage (Vdss) | 20V | |
| Vgs (Max) | ±12V | |
| JEDEC-95 Code | TO-236AB | |
| Drain Current-Max (Abs) (ID) | 2.8A | |
| Drain-source On Resistance-Max | 0.074Ohm | |
| DS Breakdown Voltage-Min | 20V | |
| RoHS Status | ROHS3 Compliant |
