SSR RELAY SPST-NO 1A 0-400V
The PS1201 is a 1A 0-400V AC Solid State Switch in 8-SIP, 4 Leads package. This article mainly covers its pinout, application, datasheet and more details about PS1201.
PS1201 AC Power Switch：Pinout, Application and Datasheet
SSR RELAY SPST-NO 1A 0-400V The PS1201 is a 1A 0-400V AC Solid State Switch in 8-SIP, 4 Leads package.
61
Aug 1, 2021
Cyril Robbins
PS1201
6531In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $4.94147 | $4.94 |
| 10+ | $4.66176 | $46.62 |
| 100+ | $4.39789 | $439.79 |
| 500+ | $4.14895 | $2074.48 |
| 1000+ | $3.91411 | $3914.11 |
Unit Price:$4.94147
Subtotal: $4.94
Quick Links

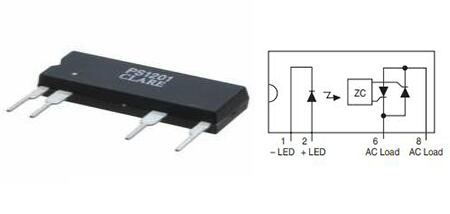

PS1201 Pinout
PS1201 CAD Model

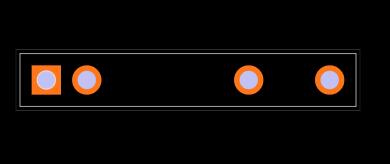

Footprint
PS1201 Description
The PS1201 is an AC Solid State Switch using optical coupling with dual power SCR outputs to produce an alternative to optocoupler and Triac circuits.
PS1201 Features
• Load Current up to 1Arms (3Arms with heat sink)
• Blocking Voltages up to 400VP
• 5mA Sensitivity
• Zero-Crossing Detection
• DC Control, AC Output
• Optically Isolated
• TTL and CMOS Compatible
• Low EMI and RFI Generation
• High Noise Immunity
• VDE compatible
• Machine Insertable, Wave Solderable
Specifications
IXYS Integrated Circuits Division PS1201 technical specifications, attributes, parameters and parts with similar specifications to IXYS Integrated Circuits Division PS1201.
PS1201 Tech Specifications
PS1201 Tech Specifications
IXYS Integrated Circuits Division PS1201 technical specifications, attributes, parameters and parts with similar specifications to IXYS Integrated Circuits Division PS1201.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 8 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 8-SIP, 4 Leads | |
| Number of Pins | 4Pins | |
| Supplier Device Package | 4-SIP | |
| Packaging | Tube | |
| Series | PS | |
| Published | 2011 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Termination | PC Pin |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Operating Temperature | 85°C | |
| Min Operating Temperature | -40°C | |
| Termination Style | PC Pin | |
| Output Voltage | 400V | |
| Output Type | AC, Zero Cross | |
| Operating Supply Voltage | 120V | |
| Circuit | SPST-NO (1 Form A) | |
| Number of Channels | 1Channel | |
| Max Supply Voltage | 120V | |
| Min Supply Voltage | 20V | |
| Throw Configuration | SPST | |
| Forward Current | 5mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Output Voltage | 400V | |
| Relay Type | Relay | |
| Voltage - Load | 0V~400V | |
| Max Input Current | 100mA | |
| Input Current | 100mA | |
| Load Current | 1A | |
| Isolation Voltage | 3.75kV | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
PS1201 Application
• Programmable Control
• Process Control
• Power Control Panels
• Remote Switching
• Gas Pump Electronics
• Contactors
• Large Relays
• Solenoids
• Motors
• Heaters
Where to use PS1201
The PS1201 uses optical coupling with dual power SCR outputs to produce an alternative to optocoupler and Triac circuits. And its input and output circuits are optically coupled to provide 3750Vrms of isolation and noise immunity between control and load circuits. Therefore, the PS1201 is suited for industrial environments where electromagnetic interference would disrupt the operation of electromechanical relays.
Advantage of PS1201
-
Powerfully built to provide a blocking voltage of up to 400VP and a max surge current rating of 20A.
-
Tightly controlled zero-cross circuitry ensures the switching of AC loads without the generation of transients.
-
Input and output circuits are optically coupled to provide 3750Vrms of isolation and noise immunity between control and load circuits.
PS1201 Package
PS1201 Manufacturer
IXYS Integrated Circuits Division/Littelfuse, formerly Clare, Inc., an IXYS/Littelfuse Company, designs, manufactures, and markets high-voltage integrated circuits (ICs) and optically isolated Solid State Relays (OptoMOS?) for the communication, industrial, power, and consumer markets. As a pioneer in the development of Solid State Relays (SSRs), they have become a leading supplier to the telecommunications, security, utility metering, and industrial control industries.
Datasheet PDF
Download datasheets and manufacturer documentation for IXYS Integrated Circuits Division PS1201.
PS1201 Documents
PS1201 Documents
Download datasheets and manufacturer documentation for PS1201
Frequently Asked Questions
What is PS1201?
The PS1201 is an AC Solid State Switch using optical coupling with dual power SCR outputs to produce an alternative to optocoupler and Triac circuits.
What package is PS1201?
4-Pin (8-Pin Body) SIP Package (25/Tube).
What is the operational temperature of PS1201?
-40 to +85 ºC.
What about the AC operating Voltage?
120 Vrms.
Where is AC power switch?
Many outdoor AC units have a shut-off switch. These switches are typically located near the unit and are inside a metal box mounted to the exterior of your home. They are sometimes labelled as an emergency shut-off.
FAQ
What is PS1201?
The PS1201 is an AC Solid State Switch using optical coupling with dual power SCR outputs to produce an alternative to optocoupler and Triac circuits.
What package is PS1201?
4-Pin (8-Pin Body) SIP Package (25/Tube).
What is the operational temperature of PS1201?
-40 to +85 ºC.
What about the AC operating Voltage?
120 Vrms.
Where is AC power switch?
Many outdoor AC units have a shut-off switch. These switches are typically located near the unit and are inside a metal box mounted to the exterior of your home. They are sometimes labelled as an emergency shut-off.
