Transistor Digital BJT NPN/PNP 50 Volt 100mA Automotive 6-Pin TSSOP
PUMD3 is NPN/PNP resistor-equipped transistor. This post covers its pinout, datasheet, schematic and more details about PUMD3
PUMD3 Transistor：BJT, PUMD3 Datasheet, Pinout, Schematic
Transistor Digital BJT NPN/PNP 50 Volt 100mA Automotive 6-Pin TSSOP PUMD3 is NPN/PNP resistor-equipped transistor. This post covers its pinout, datasheet, schematic and more details about PUMD3
127
Feb 2, 2022
Arno Jennings
PUMD3
24000In Stock
Min.: 1 Mult.: 1
Quick Links
PUMD3 Pinout
PUMD3 Pinout
PUMD3 CAD Model
PUMD3 Description
PUMD3 is an NPN /PNP Resistor-Equipped Transistor (RET) in Surface-Mounted Device (SMD) plastic packages.
PUMD3 Feature
100 mA output current capability
Reduces component count
Built-in bias resistors
Reduces pick and place costs
Simplifies circuit design
AEC -Q101 qualified
PUMD3 Application
The low current peripheral driver
Control of IC inputs
Replaces general-purpose transistors in digital applications
PUMD3 Schematic
PUMD3 Schematic is shown below.
PUMD3 Schematic

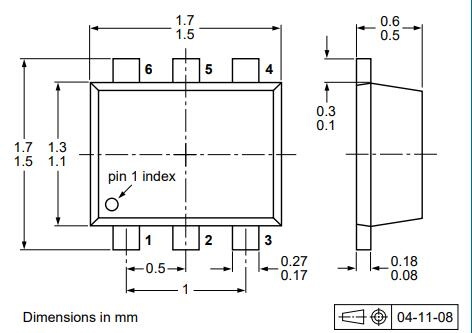

PUMD3 Package
PUMD3 Package
PUMD3 Manufacturer
Nexperia is a dedicated global leader in Discretes, Logic and MOSFETs devices. This new company became independent at the beginning of 2017. Focused on efficiency, Nexperia produces consistently reliable semiconductor components at a high volume: 85 billion annually. The company’s extensive portfolio meets the stringent standards set by the Automotive industry. And industry-leading small packages, produced in their own manufacturing facilities, combine power and thermal efficiency with best-in-class quality levels. Built on over half a century of expertise, Nexperia has 11,000 employees across Asia, Europe and the U.S. supporting
Datasheet PDF
PUMD3 Documents
PUMD3 Documents
Download datasheets and manufacturer documentation for PUMD3
Specifications
Nexperia USA Inc. PUMD3,115 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. PUMD3,115.
PUMD3 Tech Specifications
PUMD3 Tech Specifications
PHILIPS SEMICONDUCTORS PUMD3 technical specifications, attributes, parameters and parts with similar specifications to PHILIPS SEMICONDUCTORS PUMD3.
| Product Attribute | Attribute Value | |
|---|---|---|
| Surface Mount | YES | |
| Transistor Element Material | SILICON | |
| Number of Elements | 2 Elements | |
| JESD-609 Code | e3 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Finish | Matte Tin (Sn) | |
| Polarity/Channel Type | NPN/PNP | |
| Power Dissipation-Max (Abs) | 0.2W | |
| Collector Current-Max (IC) | 0.1A |
| Product Attribute | Attribute Value | |
|---|---|---|
| DC Current Gain-Min (hFE) | 30 | |
| RoHS Status | RoHS Compliant |
Frequently Asked Questions
What are Resistor-Equipped Transistors (RETs)?
A RET is a bipolar transistor that has a built-in biasing network that consists of a series base resistor and base-emitter resistor.
FAQ
What are Resistor-Equipped Transistors (RETs)?
A RET is a bipolar transistor that has a built-in biasing network that consists of a series base resistor and base-emitter resistor.
