DIODE SCHOTTKY 40V 120MA SOD523 RB751S40 Single Diode comes from RB751 Series, Planar Schottky barrier single diodes. This article will unlock its pinout, datasheet, feature, application and more details about RB751S40.

Jan 25, 2022

Mick Dillon

DIODE SCHOTTKY 40V 120MA SOD523

RB751S40 Single Diode comes from RB751 Series, Planar Schottky barrier single diodes. This article will unlock its pinout, datasheet, feature, application and more details about RB751S40.

RB751S40,115

3198000In Stock

Min.: 1 Mult.: 1

Quantity	Unit Price	Ext. Price
1+	$0.29944	$0.3
10+	$0.28249	$2.82
100+	$0.2665	$26.65
500+	$0.25141	$125.71
1000+	$0.23718	$237.18

Unit Price:$0.29944

Subtotal: $0.3

Quick Links

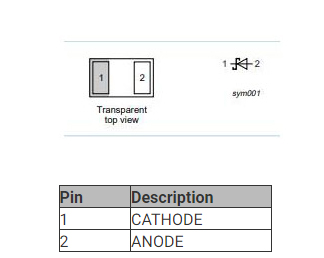

RB751S40 Pinout

RB751S40 Description

RB751S40 Single Diode comes from RB751 Series, Planar Schottky barrier single diodes with an integrated guard ring for stress protection, encapsulated in small Surface-Mounted Device (SMD) plastic packages.

RB751S40 Feature

■ Low forward voltage

■ Low capacitance

RB751S40 Application

■ Ultra high-speed switching

■ Voltage clamping

■ Line termination

■ Reverse polarity protection

RB751S40 Alternative

The alternative for RB751S40：

RB751S40,115
RB751S40
RB751V40

Specifications

Nexperia USA Inc. RB751S40,115 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. RB751S40,115.

RB751S40,115 Tech Specifications

Nexperia USA Inc. RB751S40,115 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. RB751S40,115.

Product Attribute	Attribute Value
Factory Lead Time	4 Weeks
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523
Surface Mount	YES
Diode Element Material	SILICON
Number of Elements	1 Element
Operating Temperature (Max.)	150°C
Power Dissipation (Max)	0.28W
Packaging	Tape & Reel (TR)
Published	2007
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Product Attribute	Attribute Value
Number of Terminations	2Terminations
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
HTS Code	8541.10.00.70
Terminal Position	DUAL
Terminal Form	FLAT
Peak Reflow Temperature (Cel)	260
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	RB751S40
Pin Count	2
Reference Standard	IEC-60134
JESD-30 Code	R-PDSO-F2
Configuration	SINGLE

Product Attribute	Attribute Value
Speed	Small Signal =< 200mA (Io), Any Speed
Diode Type	Schottky
Current - Reverse Leakage @ Vr	500nA @ 30V
Voltage - Forward (Vf) (Max) @ If	370mV @ 1mA
Forward Current	120mA
Operating Temperature - Junction	150°C Max
Output Current-Max	0.12A
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	120mA DC
Rep Pk Reverse Voltage-Max	40V
Capacitance @ Vr, F	2pF @ 1V 1MHz
RoHS Status	ROHS3 Compliant

View Similar

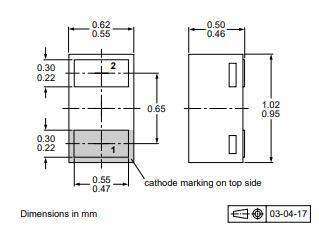

RB751S40 Package

RB751S40 Manufacturer

Nexperia is a dedicated global leader in Discretes, Logic and MOSFETs devices. This new company became independent at the beginning of 2017. Focused on efficiency, Nexperia produces consistently reliable semiconductor components at a high volume: 85 billion annually. The company’s extensive portfolio meets the stringent standards set by the Automotive industry. And industry-leading small packages, produced in their own manufacturing facilities, combine power and thermal efficiency with best-in-class quality levels. Built on over half a century of expertise, Nexperia has 11,000 employees across Asia, Europe and the U.S. supporting customers globally.
