IC REG SWTCHD CAP 3V 30MA SOT23

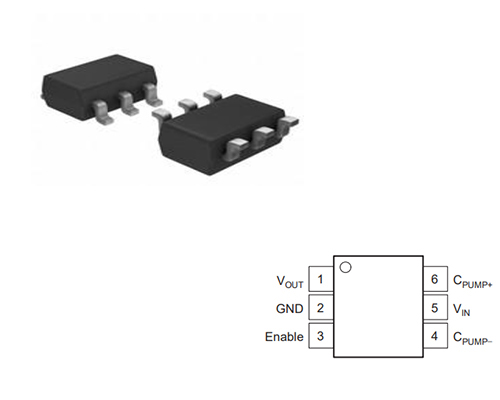

The REG710NA-3/250 is a switched capacitor voltage converter that converts an unregulated input voltage to a regulated, low-ripple output voltage. The following article will introduce its features, pinout, datasheet, and other details.
REG710NA-3/250
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $3.63396 | $3.63 |
| 10+ | $3.42827 | $34.28 |
| 100+ | $3.23422 | $323.42 |
| 500+ | $3.05115 | $1525.57 |
| 1000+ | $2.87844 | $2878.44 |
The REG710NA-3/250 is a switched capacitor voltage converter that converts an unregulated input voltage to a regulated, low-ripple output voltage. The REG710NA-3/250 is suited for a variety of battery sources, including single cell Li-Ion, two and three cell nickel- or alkaline-based chemistries, thanks to its wide input supply voltage range of 1.8V to 5.5V.
The output voltage will stay balanced even if the input voltage varies above or below the output voltage. It provides low EMI DC/DC conversion and can be used for step-up or step-down applications without the use of an inductor. Because of the high switching frequency, compact surface-mount capacitors can be used, saving board space and money. Thermally protected and current limited, the REG710NA-3/250 protects both the load and the regulator under fault situations. With no load, the typical ground pin current (quiescent current) is 65A, and in shutdown mode, it is less than 1A. The REG710NA-3/250 is offered in a tiny TSOT23-6 package with a 5.5V version. All of the other versions come in a tiny SOT23-6 box.

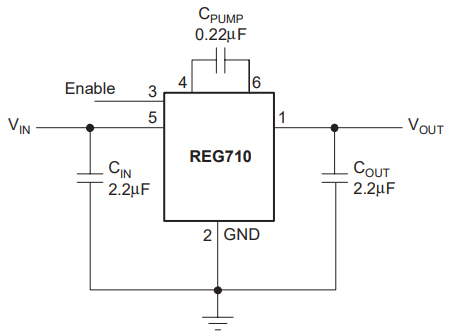

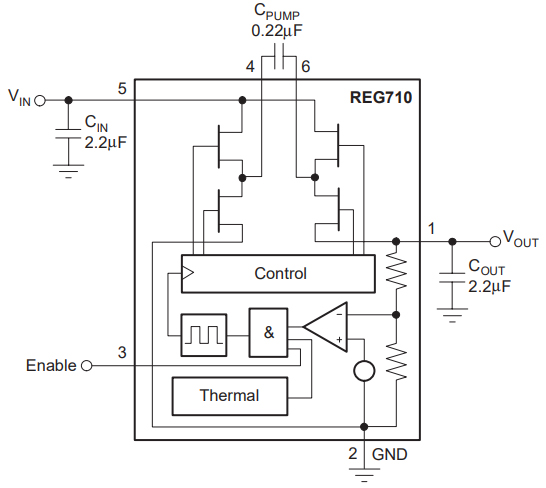

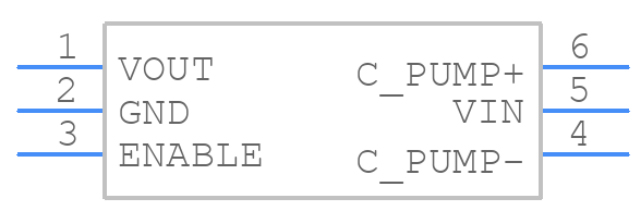

Symbol

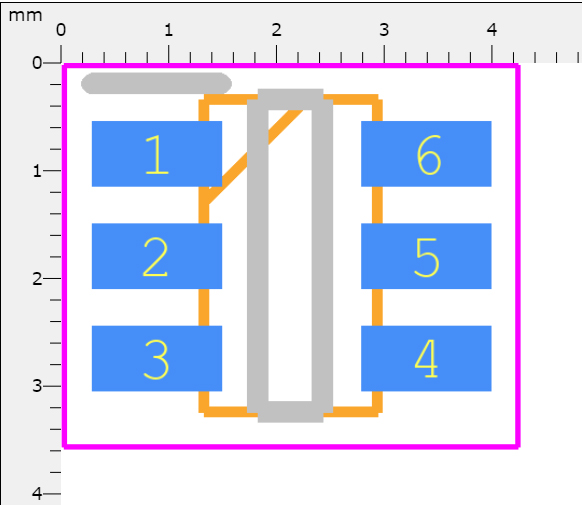

Footprint

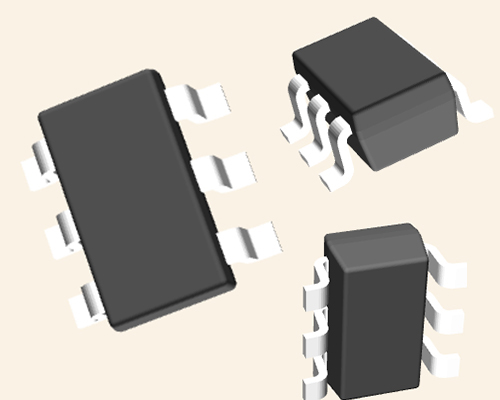

3D Model
• Wide Input Range: 1.8V to 5.5V
• Automatic Step-Up/Step-Down Operation
• Low Input Current Ripple
• Low Output Voltage Ripple
• Minimum Number of External Components—No Inductors
• 1MHz Internal Oscillator Allows Small Capacitors
• Shutdown Mode
• Thermal and Current Limit Protection
• Six Output Voltages Available: 5.5V, 5.0V, 3.3V, 3.0V, 2.7V, 2.5V
• Small Packages:
− SOT23-6
− TSOT23-6 (REG71055 and REG71050 Only)
• Evaluation Modules Available: REG710EVM-33, REG710EVM-5
NA REG710NA-3/250 technical specifications, attributes, parameters and parts with similar specifications to NA REG710NA-3/250.
Texas Instruments REG710NA-3/250 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments REG710NA-3/250.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 4 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | SOT-23-6 | |
| Surface Mount | YES | |
| Number of Pins | 6Pins | |
| Weight | 36.003894mg | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Cut Tape (CT) | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 6Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Terminal Pitch | 0.95mm | |
| Base Part Number | REG710 | |
| Function | Step-Up/Step-Down | |
| Number of Outputs | 1Output | |
| Output Voltage | 3V | |
| Output Type | Fixed | |
| Max Output Current | 30mA | |
| Input Voltage-Nom | 2.25V | |
| Max Supply Voltage | 5.5V | |
| Min Supply Voltage | 1.8V | |
| Analog IC - Other Type | SWITCHED CAPACITOR CONVERTER |
| Product Attribute | Attribute Value | |
|---|---|---|
| Output Configuration | Positive | |
| Quiescent Current | 65μA | |
| Max Output Voltage | 3.18V | |
| Voltage - Output (Min/Fixed) | 3V | |
| Topology | Charge Pump | |
| Frequency - Switching | 1MHz | |
| Synchronous Rectifier | No | |
| Min Output Voltage | 2.82V | |
| Switcher Configuration | DOUBLER INVERTER | |
| Height | 1.45mm | |
| Length | 2.9mm | |
| Width | 1.6mm | |
| Thickness | 1.2mm | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
• Smart Card Readers
• SIM Card Supplies
• Cellular Phones
• Portable Communication Devices
• Personal Digital Assistants
• Notebook and Palm-Top Computers
• Modems
• Electronic Games
• Handheld Meters
• PCMCIA Cards
• Card Buses
• White LED Drivers
• LCD Displays
• Battery Backup Supplies
Texas Instruments Incorporated (TI) is an American technology company based in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. It is one of the top 10 semiconductor companies worldwide based on sales volume. The company's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and education technology products including calculators, micro-controllers, and multi-core processors. The company boasts 45,000 patents around the globe as of 2016.
