DIODE GEN PURP 400V 1A PMDTM
RF101 is a super- fast recovery diode with low forward voltage and low switching loss, suitable for general rectification. This article mainly covers its pinout, datasheet and more detailed information about RF101.
RF101 Diode: Datasheet, Features, Dimensions
DIODE GEN PURP 400V 1A PMDTM RF101 is a super- fast recovery diode with low forward voltage and low switching loss, suitable for general rectification.
85
Jul 15, 2021
Nick House
RF101LAM4STR
234In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.33728 | $0.34 |
| 10+ | $0.31819 | $3.18 |
| 100+ | $0.30018 | $30.02 |
| 500+ | $0.28319 | $141.6 |
| 1000+ | $0.26716 | $267.16 |
Unit Price:$0.33728
Subtotal: $0.34
Quick Links
RF101 Description
RF101 is a super- fast recovery diode with low forward voltage and low switching loss, suitable for general rectification. And its operating temperature range -55C to 150 ℃.
RF101 Structure
RF101 Features
-
Ultra low VF very fast recovery
-
Fast recovery
-
Low switching loss
Specifications
ROHM Semiconductor RF101LAM4STR technical specifications, attributes, parameters and parts with similar specifications to ROHM Semiconductor RF101LAM4STR.
RF101LAM4STR Tech Specifications
RF101LAM4STR Tech Specifications
ROHM Semiconductor RF101LAM4STR technical specifications, attributes, parameters and parts with similar specifications to ROHM Semiconductor RF101LAM4STR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 20 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | SOD-128 | |
| Surface Mount | YES | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Operating Temperature (Max.) | 150°C | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 2Terminations | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Terminal Position | DUAL | |
| Terminal Form | FLAT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| JESD-30 Code | R-PDSO-F2 | |
| Configuration | SINGLE | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 10μA @ 400V | |
| Voltage - Forward (Vf) (Max) @ If | 1.25V @ 1A | |
| Operating Temperature - Junction | 150°C Max | |
| Output Current-Max | 1A | |
| Voltage - DC Reverse (Vr) (Max) | 400V | |
| Current - Average Rectified (Io) | 1A | |
| Reverse Recovery Time | 25ns | |
| Rep Pk Reverse Voltage-Max | 400V | |
| RoHS Status | ROHS3 Compliant |
Diode Circuit

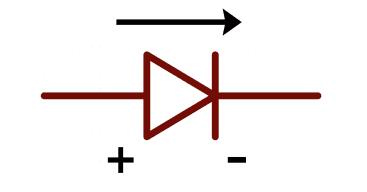

Diode in Forward Bias
Diode in Reverse Bias

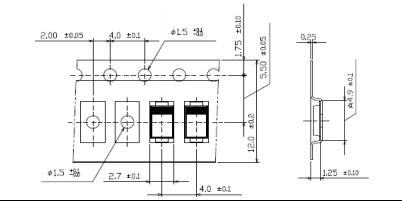

RF101 Dimensions
RF101 Manufacturer
ROHM was established in Kyoto, Japan, in 1958. ROHM designs and manufactures semiconductors, integrated circuits and other electronic components. These components find a home in the dynamic and ever-growing wireless, computer, automotive and consumer electronics markets. Some of the most innovative equipment and devices use ROHM products.
Datasheet PDF
Download datasheets and manufacturer documentation for ROHM Semiconductor RF101LAM4STR.
RF101LAM4STR Documents
RF101LAM4STR Documents
Download datasheets and manufacturer documentation for RF101LAM4STR
Datasheets
RF101LAM4S
Frequently Asked Questions
What is a diode and what is it used for?
A diode is a semiconductor device that essentially acts as a one-way switch for current. It allows current to flow easily in one direction, but severely restricts current from flowing in the opposite direction.
Why diodes can bring great advantages to two-pole RF detectors?
Diodes are used to generate DC voltage because of their rectification characteristics, and as long as there are diodes, the DC voltage they generate is proportional to the level of AC and RF signals.
FAQ
What is a diode and what is it used for?
A diode is a semiconductor device that essentially acts as a one-way switch for current. It allows current to flow easily in one direction, but severely restricts current from flowing in the opposite direction.
Why diodes can bring great advantages to two-pole RF detectors?
Diodes are used to generate DC voltage because of their rectification characteristics, and as long as there are diodes, the DC voltage they generate is proportional to the level of AC and RF signals.
