RFP30N06LE Power MOSFET: Equivalent, Circuit, and Datasheet

The RFP30N06LE is an N-Channel logic-level power MOSFET manufactured using the MegaFET process. This process, which uses feature sizes approaching those of LSI integrated circuits gives optimum utilization of silicon, resulting in outstanding performance. The RFP30N06LE is designed for use in applications such as switching regulators, switching converters, motor drivers, and relay drivers. It can also be operated directly from integrated circuits. The RFP30N06LE incorporates ESD protection and is designed to withstand 2kV (Human Body Model) of ESD.

Symbol

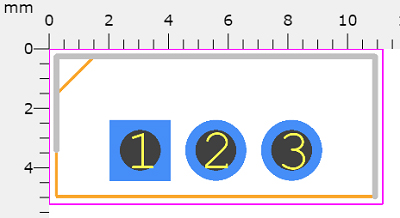

Footprint

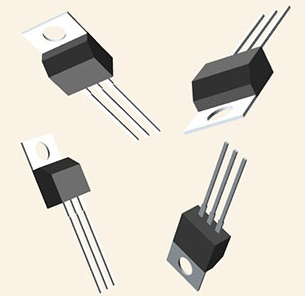

3D Model

• Package Type: TO-220

• Transistor Type: N Channel

• Drain to Source Voltage: 60 V

• Drain to Gate Voltage (RGS = 20kΩ): 60 V

• Continuous Drain Current: 30 A

• Drain to Source On Resistance: 0.047 Ω

• Power Dissipation: 96 W

• Operating and Storage Temperature: -55 to 175 °C

• rDS(ON) = 0.047Ω

• 2kV ESD Protected

• Temperature Compensating PSPICE® Model

• Peak Current vs Pulse Width Curve

• UIS Rating Curve

ON Semiconductor RFP30N06LE technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor RFP30N06LE.

The RFP30N06LE is a logic-level MOSFET that can be used in switch-mode power supply circuits and audio amplifiers. And for DC motor control using Arduino or a similar microcontroller. The RFP30N06LE is also widely used in low voltage applications such as automotive, DC/DC converters, and high efficiency switching for power management in portable and battery-operated products.

RFP30N06LE Unclamped Energy Test Circuit & Waveforms

RFP30N06LE Switching Time Test Circuit & Waveforms

RFP30N06LE Gate Charge Test Circuit & Waveforms

• Switching regulators

• Switching converters

• Power management

• Motor drives

• Relay drivers

• Audio amplifiers

ON Semiconductor (Nasdaq: ON) is driving energy efficient innovations, empowering customers to reduce global energy use. The company offers a comprehensive portfolio of energy efficient power and signal management, logic, discrete and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace and power supply applications. ON Semiconductor operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices and design centers in key markets throughout North America, Europe, and the Asia Pacific regions.

Download datasheets and manufacturer documentation for ON Semiconductor RFP30N06LE.
