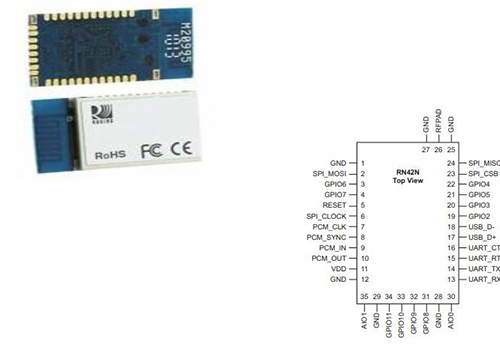

The RN42-I/RM module is a class 2 Bluetooth radio with a tiny form factor and low power consumption. This article is going to introduce pinout, applications, features, and more details about RN42-I/RM.
RN42-I/RM
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $32.85684 | $32.86 |
| 10+ | $30.99702 | $309.97 |
| 100+ | $29.24247 | $2924.25 |
| 500+ | $27.58724 | $13793.62 |
| 1000+ | $26.0257 | $26025.7 |
The RN42-I/RM module is a class 2 Bluetooth radio with a tiny form factor and low power consumption that is perfect for designers who want to add wireless capability to their products without investing a lot of time and money in Bluetooth-specific hardware and software.
The RN42-I/RM is a complete embedded Bluetooth solution that supports several interface protocols, is easy to design in, and is completely certified. The RN42-I/RM delivers up to a 3-Mbps data rate over distances up to 10 meters, thanks to its high-performance PCB trace antenna (RN42) or external antenna (RN42N) and support for Bluetooth EDR.
Fully qualified Bluetooth® version 2.1 module, supports version 2.1 + Enhanced Data Rate (EDR)
ASCII command interface over UART
Postage-stamp-sized form factor:
- RN42: 13.4 x 25.8 x 2.4 mm
- RN42N: 13.4 x 20.5 x 2.4 mm
Low-power (26A sleep, 3 mA connected, 30 transmit)
UART (SPP or HCI ) and USB (HCI only) data connection interfaces
Sustained SPP data rates: 240 Kbps (Slave mode),300 Kbps (Master mode)
HCI data rates: 1.5 Mbps sustained, 3.0 Mbps burst in HCI mode
Embedded Bluetooth stack profiles include GAP, SDP, RFCOMM, L2CAP protocols, with SPP, HID, and DUN profile support (does not require any host stack).
Bluetooth SIG qualified, end product listing
Castellated SMT pads for easy and reliable PCB mounting
Class 2 power amplifier with onboard PCB trace antenna (RN42) or external antenna (RN42N)
Compliance (RN42)
- Modular Certified for the United States (FCC) and Canada (IC)
- European R&TTE Directive Assessed Radio Module
- Australia/New Zealand/Japan/Korea/Taiwan
- Bluetooth SIG QDID
Integrated Crystal, Internal Voltage Regulator

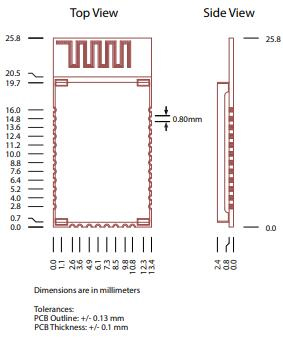

RN42-I/RM Dimensions
Microchip Technology RN42-I/RM technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology RN42-I/RM.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 12 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 35-SMD Module | |
| Number of Pins | 35Pins | |
| Usage Level | Automotive grade | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tray | |
| Published | 2010 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 32Terminations | |
| Voltage - Supply | 3V~3.6V | |
| Terminal Position | UNSPECIFIED |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Functions | 1Function | |
| Supply Voltage | 3.3V | |
| Frequency | 2.4GHz | |
| Base Part Number | RN42 | |
| JESD-30 Code | R-XXMA-N32 | |
| Operating Supply Voltage | 3.3V | |
| Interface | SPI, UART | |
| Data Rate | 300kbps | |
| Protocol | Bluetooth v2.1 +EDR, Class 2 | |
| Screening Level | TS 16949 | |
| Telecom IC Type | TELECOM CIRCUIT | |
| Power - Output | 4dBm | |
| RF Family/Standard | Bluetooth | |
| Antenna Type | Integrated, Trace |
| Product Attribute | Attribute Value | |
|---|---|---|
| Serial Interfaces | UART | |
| Current - Receiving | 25mA | |
| Current - Transmitting | 30mA | |
| Sensitivity (dBm) | -80 dBm | |
| Firmware Version | 6.15 | |
| Height | 2mm | |
| Length | 25.8mm | |
| Width | 13.4mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
| Parameter | Min. | Typ. | Max. | Units |
| Supply Voltage (DC) | 3 | 3.3 | 3.6 | V |
| Average Power Consumption | ||||
| Radio On (Discovery or Inquiry Window Time) | — | 40 | — | mA |
| Connected Idle (No Sniff) | — | 25 | — | mA |
| Connected Idle (Sniff 100 ms) | — | 12 | — | mA |
| Connected with Data Transfer | 40 | 45 | 50 | mA |
| Deep Sleep Idle Mode | — | 26 | — | uA |
• Cable replacement
• Barcode scanners
• Measurement and monitoring systems
• Industrial sensors and controls
• Medical devices
