RS-1205S Regulated Converter: Pinout, Features, Circuit

DC DC CONVERTER 5V 2W RS-1205S is DC to DC regulated converter. This article mainly covers its pinout, features, circuit and details about RS-1205S.

Jul 21, 2021

Janice Daniell

DC DC CONVERTER 5V 2W

RS-1205S is DC to DC regulated converter. This article mainly covers its pinout, features, circuit and details about RS-1205S.

RS-1205S

401In Stock

Min.: 1 Mult.: 1

Quantity	Unit Price	Ext. Price
1+	$16.61118	$16.61
10+	$15.67092	$156.71
100+	$14.78389	$1478.39
500+	$13.94707	$6973.54
1000+	$13.15761	$13157.61

Unit Price:$16.61118

Subtotal: $16.61

Quick Links

RS-1205S Description

RS-1205S is DC to DC regulated converter with high power-density, an industrial temperature range of -40°C to +85°C and extra features like Remote-On-Off- control are just some of the characteristics of this converter, ideal for highly sophisticated industrial designs.

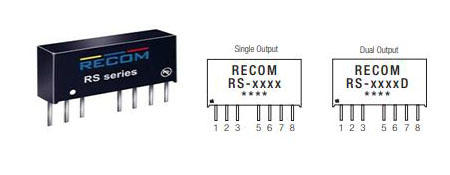

RS-1205S Pinout

RS-1205S CAD Model

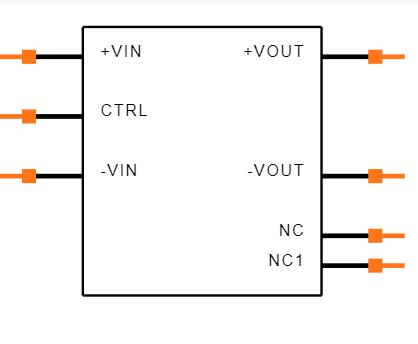

Symbol

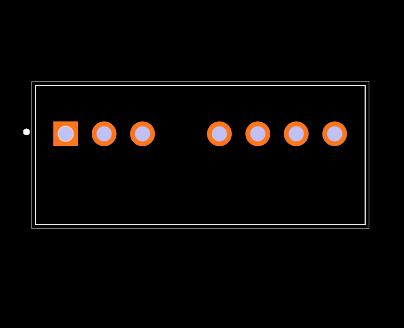

Footprint

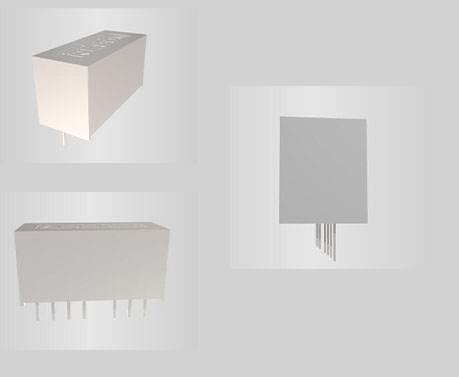

3D Model

RS-1205S Features

● 2:1 and 4:1 Wide Input Voltage Ranges

● 1kVDC, 2kVDC & 3kVDC Isolation

● UL94V-0 Package Material

● Continuous Short Circuit Protection

● Low Noise

● No External Capacitor needed

● Efficiency to 83 %

Specifications

Recom Power RS-1205S technical specifications, attributes, parameters and parts with similar specifications to Recom Power RS-1205S.

RS-1205S Tech Specifications

Recom Power RS-1205S technical specifications, attributes, parameters and parts with similar specifications to Recom Power RS-1205S.

Product Attribute	Attribute Value
Factory Lead Time	9 Weeks
Mount	PCB, Through Hole
Mounting Type	Through Hole
Package / Case	8-SIP Module, 7 Leads
Number of Pins	7Pins
Weight	4.7g
Operating Temperature	-45°C~85°C
Packaging	Tube
Series	ECONOLINE RS (2W)
Size / Dimension	0.86Lx0.36W x 0.44 H 21.8mmx9.2mmx11.1mm
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	7Terminations
ECCN Code	EAR99
Type	Isolated Module
Applications	ITE (Commercial)

Product Attribute	Attribute Value
Power Rating	2W
Max Power Dissipation	2W
Terminal Position	SINGLE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1Function
Terminal Pitch	2.54mm
Depth	21.8mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	8/7
Number of Outputs	1Output
Efficiency	75%
Voltage - Isolation	1kV
Output Voltage	5V
Max Output Current	400mA
Input Voltage-Nom	12V
Trim/Adjustable Output	NO
Output Current	400mA

Product Attribute	Attribute Value
Output Power	2W
Control Features	Enable, Active Low
Max Output Voltage	5V
Current - Output 1	400mA
Nominal Input Voltage	12V
Max Output Power	2W
Isolation	Isolated
Nominal Output Voltage	5V
Max Input Voltage (DC)	18V
Min Input Voltage (DC)	9V
Features	Remote On/Off, SCP
Height	11.1mm
Width	9.2mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

View Similar

RS-1205S Application Circuit

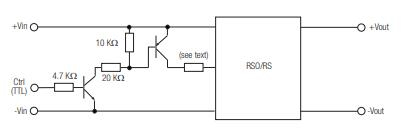

TTL Remote CTRL Circuit

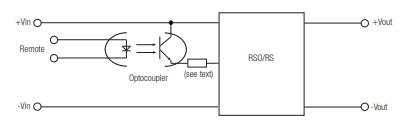

Isolated Remote CTRL Circuit

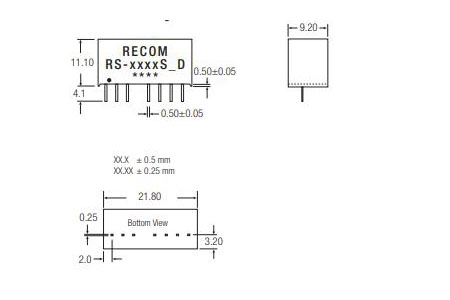

RS-1205S Package

RS-1205S Manufacturer

When it comes to power conversion, RECOM Power's attentiveness to customers'needs and wishes is reflected in the framework that shapes their business. Over the past decade, millions have been invested in product development, growing their quality assurance lab, and expanding the scope of worldwide distribution activities.
