DIODE GEN PURP 3KV 200MA DO41
RS3000-AP is a silicon rectifier diode. This article mainly covers its features, alternatives and more details about RS3000-AP.
RS3000-AP Rectifier Diode: Features, Alternatives, Comparison
DIODE GEN PURP 3KV 200MA DO41 RS3000-AP is a silicon rectifier diode. This article mainly covers its features, alternatives and more details about RS3000-AP.
79
Jul 21, 2021
Dwight Judith
RS3000-AP
Inquiry
Min.: 1 Mult.: 1
Quick Links
RS3000-AP Description
RS3000-AP is a diode with 200 milliamp high voltage silicon rectifier 3000 Volts. Its operating temperature ranges -55°C to +150°C.
RS3000-AP Features
• Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix designates Compliant. See ordering information)
• Low Forward Voltage Drop
• High Current Capability
• High Voltage
• Epoxy meets UL 94 V-0 flammability rating
• Moisture Sensitivity Level 1
Specifications
Micro Commercial Co RS3000-AP technical specifications, attributes, parameters and parts with similar specifications to Micro Commercial Co RS3000-AP.
RS3000-AP Tech Specifications
RS3000-AP Tech Specifications
Micro Commercial Co RS3000-AP technical specifications, attributes, parameters and parts with similar specifications to Micro Commercial Co RS3000-AP.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Through Hole | |
| Package / Case | DO-204AL, DO-41, Axial | |
| Surface Mount | NO | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Packaging | Tape & Box (TB) | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) | |
| HTS Code | 8541.10.00.70 | |
| Terminal Form | WIRE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Reach Compliance Code | not_compliant | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Pin Count | 2 | |
| JESD-30 Code | O-PALF-W2 | |
| Qualification Status | Not Qualified | |
| Configuration | SINGLE |
| Product Attribute | Attribute Value | |
|---|---|---|
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Diode Type | Standard | |
| Voltage - Forward (Vf) (Max) @ If | 4V @ 40V | |
| Case Connection | ISOLATED | |
| Operating Temperature - Junction | -55°C~150°C | |
| Output Current-Max | 0.2A | |
| Voltage - DC Reverse (Vr) (Max) | 3000V | |
| Current - Average Rectified (Io) | 200mA | |
| Rep Pk Reverse Voltage-Max | 3000V | |
| Capacitance @ Vr, F | 30pF @ 4V 1MHz | |
| RoHS Status | RoHS Compliant |

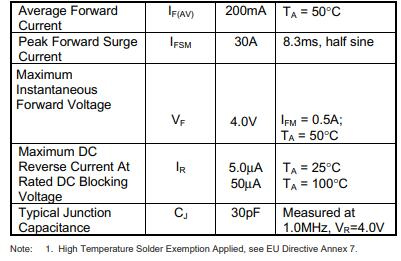

RS3000-AP Electrical Characteristics
RS3000-AP Package
RS3000-AP Manufacturer
Founded in 1991, Micro Commercial Components Corp. (MCC) is a manufacturer of high-quality discrete semiconductors to the consumer markets. MCC's products include diodes, rectifiers, transistors, MOSFETs, voltage regulators and protection devices.
Datasheet PDF
Download datasheets and manufacturer documentation for Micro Commercial Co RS3000-AP.
RS3000-AP Documents
RS3000-AP Documents
Download datasheets and manufacturer documentation for RS3000-AP
PCN Obsolescence/ EOL
Mult Devices OBS 28/Nov/2017
Datasheets
RS3000
Frequently Asked Questions
What is RS3000-AP’s operating temperature?
-55°C to 150°C.
What about RS3000-AP’s storage temperature?
-55°C to +150°C.
How many pins does RS3000-AP have?
2.
What is silicon diode?
A Silicon Diode is a semiconductor that has both positive and negative charge polarity. It can allow an electrical current to flow in one direction whilst restricting another.
FAQ
What is RS3000-AP’s operating temperature?
-55°C to 150°C.
What about RS3000-AP’s storage temperature?
-55°C to +150°C.
How many pins does RS3000-AP have?
2.
What is silicon diode?
A Silicon Diode is a semiconductor that has both positive and negative charge polarity. It can allow an electrical current to flow in one direction whilst restricting another.
