RF Receiver 2G ASH Receiver 433.92 MHZ 19.2kbps
Hey dude,this time i wanna introduce you all a very special component call RX5500.The RX5500 hybrid receiver is ideal for short-range wireless control applications where robust operation,small size, low power consumption and low cost are required.
RX5500
The RX5500 hybrid receiver is ideal for short-range wireless control applications where robust operation, small size, low power consumption and low cost are required. The RX5500 employs Murata’s amplifiersequenced hybrid (ASH) architecture to achieve this unique blend of characteristics. All critical RF functions are contained in the hybrid, simplifying and speeding design-in. The RX5500 is sensitive and stable. A wide dynamic range log detector provides robust performance in the presence of on-channel interference or noise. Two stages of SAW filtering provide excellent receiver out-of-band rejection. The RX5500 generates virtually no RF emissions, facilitating compliance with ETSI I-ETS 300 220 and similar regulations.
• Designed for Short-Range Wireless Control Applications
• 3 V, Low Current Operation plus Sleep Mode
• Characterized for Automotive Applications
• High EMI Rejection Capability
• Complies with Directive 2002/95/EC (RoHS)

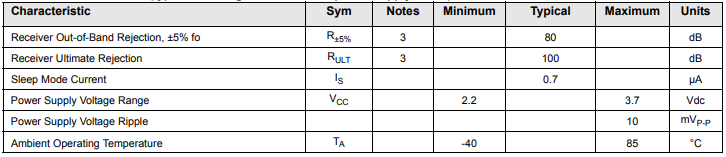

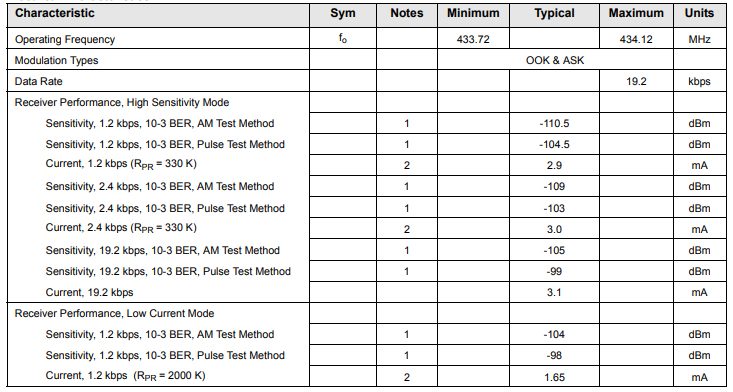

Murata Electronics RX5500 technical specifications, attributes, parameters and parts with similar specifications to Murata Electronics RX5500.
Murata Electronics RX5500 technical specifications, attributes, parameters and parts with similar specifications to Murata Electronics RX5500.
| Product Attribute | Attribute Value | |
|---|---|---|
| Package / Case | 20-SMD Module, No Lead | |
| Number of Pins | 20Pins | |
| Supplier Device Package | SM-20L | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Max Operating Temperature | 85°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Min Operating Temperature | -40°C | |
| Applications | General Purpose | |
| Voltage - Supply | 2.2V~3.7V | |
| Frequency | 433.92MHz | |
| Operating Supply Voltage | 3.3V | |
| Operating Supply Current | 2.9mA | |
| Nominal Supply Current | 3.1A | |
| Data Interface | PCB, Surface Mount |
| Product Attribute | Attribute Value | |
|---|---|---|
| Sensitivity | -110.5dBm | |
| Data Rate (Max) | 19.2kbps | |
| Current - Receiving | 3.1mA | |
| Modulation or Protocol | ASK, OOK | |
| Sensitivity (dBm) | -110.5 dBm | |
| Antenna Connector | PCB, Surface Mount | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |

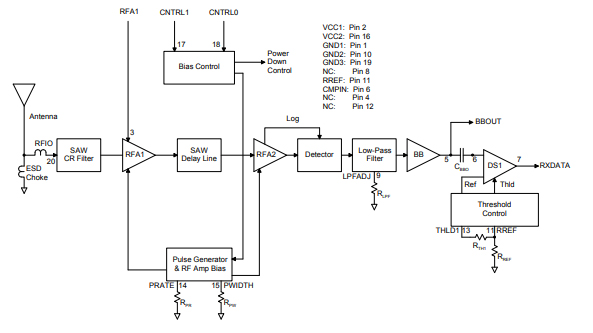

RX5500 Functional Block Diagram
| Part Number | Describtions | Manufaturer |
| RX5500TELECOMMUNICATION CIRCUITS | Telecom Circuit, 1-Func, SM-20 | Murata Connectivity |

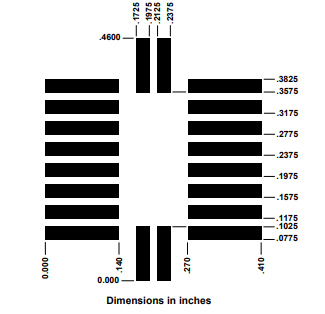

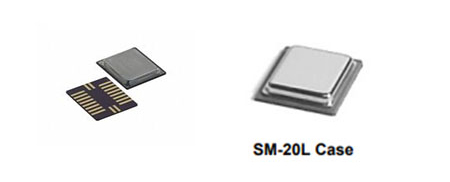

RX5500 Package

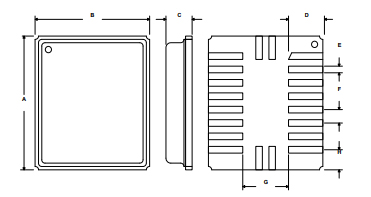

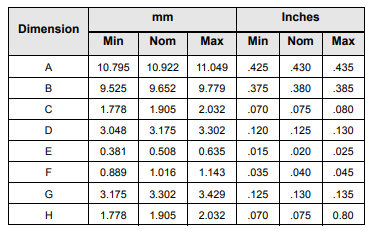

RX5500 Dimension
Honorary Chairman Akira Murata started Murata Manufacturing as a personal venture in October, 1944. In December 1950 reorganized the company into Murata Manufacturing Co., Ltd. with paid-in Capital ¥1 million.
Murata Manufacturing is primarily involved in the manufacturing of ceramic passive electronic components, primarily capacitors, and has an overwhelming marketshare worldwide in ceramic filters, high-frequency parts, and sensors.
Download datasheets and manufacturer documentation for RX5500
