S3K DIODE GEN PURP 800V 3A SMC: S3K Marking Information, Key parameters and Applications

Diodes - Rectifiers - Single DIODE GEN PURP 800V 3A SMC S3K is a discrete semiconductor product. This article is going to introduce applications, features, and more details about S3K.

67

Nov 24, 2021

Merry Anthony

Diodes - Rectifiers - Single DIODE GEN PURP 800V 3A SMC

S3K is a discrete semiconductor product. This article is going to introduce applications, features, and more details about S3K.

S3K

500In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $0.76924$0.77
10+ $0.7257$7.26
100+ $0.68462$68.46
500+ $0.64587$322.94
1000+ $0.60931$609.31
Unit Price:$0.76924
Subtotal: $0.77
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

S3K Features

  • Glass Passivated Die Construction

  • Low Forward Voltage Drop and High Current Capability

  • Surge Overload Rating to 100A Peak

  • Ideally Suited for Automated Assembly

  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

  • Halogen and Antimony Free. “Green” Device (Note 3)

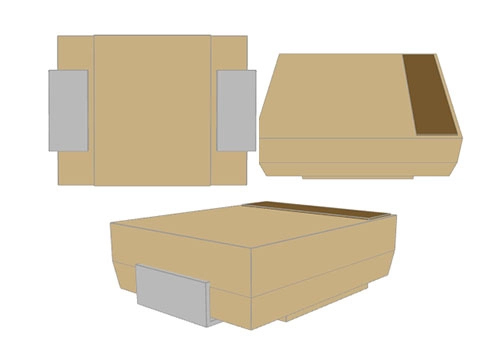

S3K 3D Model

S3k 3D Model

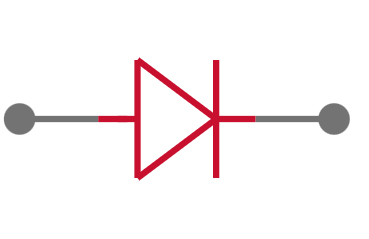

S3K Symbol

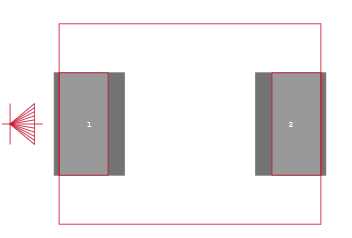

S3K Footprint

Specifications

ON Semiconductor S3K technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor S3K.

S3K Tech Specifications

ON Semiconductor S3K technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor S3K.

Product Attribute Attribute Value
Lifecycle StatusACTIVE (Last Updated: 3 days ago)
Factory Lead Time10 Weeks
MountSurface Mount
Mounting TypeSurface Mount
Package / CaseDO-214AB, SMC
Number of Pins2Pins
Supplier Device PackageSMC (DO-214AB)
Weight300mg
PackagingTape & Reel (TR)
Published2013
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
Max Operating Temperature150°C
Min Operating Temperature-55°C
Voltage - Rated DC800V
Current Rating3A
Product Attribute Attribute Value
Base Part NumberS3K
PolarityStandard
Element ConfigurationSingle
SpeedStandard Recovery >500ns, > 200mA (Io)
Diode TypeStandard
Current - Reverse Leakage @ Vr5μA @ 800V
Power Dissipation2.6W
Output Current3A
Voltage - Forward (Vf) (Max) @ If1.2V @ 3A
Forward Current3A
Operating Temperature - Junction-55°C~150°C
Max Surge Current100A
Voltage - DC Reverse (Vr) (Max)800V
Current - Average Rectified (Io)3A
Forward Voltage1.2V
Max Reverse Voltage (DC)800V
Product Attribute Attribute Value
Average Rectified Current3A
Reverse Recovery Time2.5μs
Peak Reverse Current5μA
Max Repetitive Reverse Voltage (Vrrm)800V
Capacitance @ Vr, F60pF @ 4V 1MHz
Peak Non-Repetitive Surge Current100A
Reverse Voltage800V
Max Forward Surge Current (Ifsm)100A
Recovery Time2.5 μs
Height2.75mm
Length7.15mm
Width6.25mm
REACH SVHCNo SVHC
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

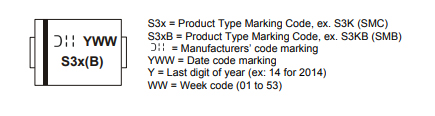

S3K Marking Information

S3K Marking Information

S3K Application

● Switching mode power supply (SMPS)

● Adapters

● Lighting application

● Converter

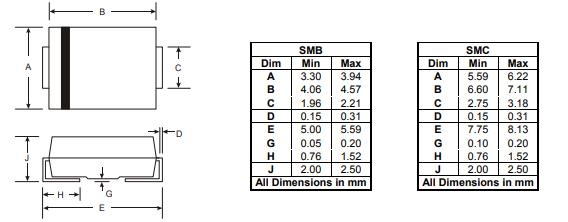

S3K Package

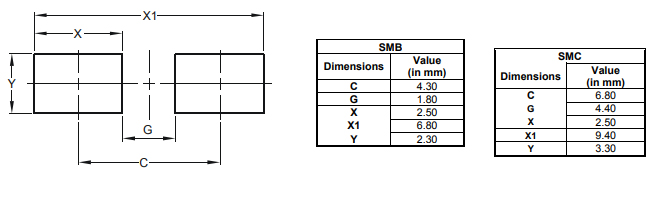

S3k Pad Layout

S3k Pad Layout

Datasheet PDF

Download datasheets and manufacturer documentation for ON Semiconductor S3K.

S3K Documents

Download datasheets and manufacturer documentation for S3K

Frequently Asked Questions

What’s the packaging way of S3K?
Tape &Reel
How many pins of S3K?
2 pins.
FAQ
What’s the packaging way of S3K?
Tape &Reel
How many pins of S3K?
2 pins.
