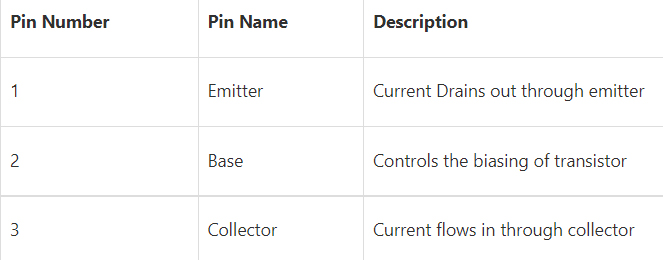

S8050 NPN Silicon Transistors: Datasheet, Pinout and Equivalent

S8050 is a general-purpose transistor, which is a perfect transistor to perform small and general tasks in electronic circuits. S8050 is an NPN transistor hence the collector and emitter will be left open (Reverse biased) when the base pin is held at the ground and will be closed (Forward biased) when a signal is provided to the base pin. It has a maximum gain value of 400; this value determines the amplification capacity of the transistor normally S8050.

You can use it as a switch in electronic circuits to switch on loads under 700mA. 700mA is enough to handle a variety of loads for example relays, LEDs, bulbs, etc.

• Low Voltage, High Current NPN Transistor

• Small Signal Transistor

• Maximum Power: 2 Watts

• Maximum DC Current Gain (hFE) is 400

• Continuous Collector current (IC) is 700mA

• Base- Emitter Voltage (VBE) is 5V

• Collector-Emitter Voltage (VCE) is 20V

• Collector-Base Voltage (VCB) is 30V

• High Used in push-pull configuration doe Class B amplifiers

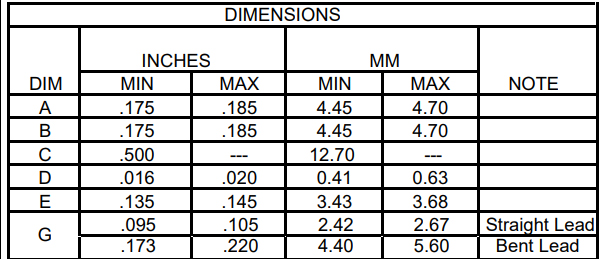

• Available in To-92 Package

Micro Commercial Co S8050-D-AP technical specifications, attributes, parameters and parts with similar specifications to Micro Commercial Co S8050-D-AP.

• Audio amplification circuits

• Class B amplifiers

• Push-pull transistors

• Circuits where high gain is required

• Low signal applications

S8050 transistor is a general-purpose transistor that is also a perfect transistor to perform small and general tasks in electronic circuits. You can use it as a switch in electronic circuits to switch on loads under 700mA. 700mA is enough to handle a variety of loads for example relays, LEDs, bulbs, etc.

MCC produces high-quality discrete semiconductors to the consumer and industrial markets—including diodes, rectifiers, MOSFETs, voltage regulators, and protection devices.

Download datasheets and manufacturer documentation for Micro Commercial Co S8050-D-AP.
