SA15 TVS DIODE 15VWM 24.4VC DO15[FAQ]: Datasheet, Features, and Applications

The SA15 was created to safeguard sensitive electronic equipment against voltage transients caused by lightning and other transient voltage phenomena.

• 500W peak pulsecapability  at 10/1000μswaveform, repetition rate (duty cycles):0.01%

• VBR @ TJ= VBR  @25°Cx (1+αT x (TJ - 25)) (αT:Temperature Coefficient, typical value is 0.1%)

• Glass passivated chipjunction  in DO-15 Package

• Fast response time: typically less than 1.0psfrom 0 Volts to BV min

• Excellent clamping capability

• The typical failure mode is short from over-specified voltage or current

• Whisker test is conducted based on JEDECJESD201A  per its table 4a and 4c

• IEC-61000-4-2 ESD  30kV(Air), 30kV (Contact)

• ESD protection of data lines in accordance with IEC  61000-4-2

• EFT protection of data lines in accordance with IEC  61000-4-4

• Low incremental surge resistance

• Typical IR  less than 1μAwhen VBR  max>13V

• High temperatureto reflow solderingguaranteed: 260°C/40sec/ 0.375”,(9.5mm) lead length, 5 lbs., (2.3kg) tension

• Plastic package is flammability rated V-0 peer underwriters Laboratories

• Matte tin lead–free plated

• Halogen-free and RoHS  -compliant

• Pb-free E3 means 2^ndlevel interconnect is free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD609A.01)

Littelfuse Inc. SA15 technical specifications, attributes, parameters and parts with similar specifications to Littelfuse Inc. SA15.

SA15 Functional Diagram

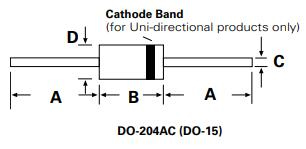

SA15 Dimensions

• Home and smart appliances

• Display time and digital combination

• Industrial and instrumental applications

• Numeric status

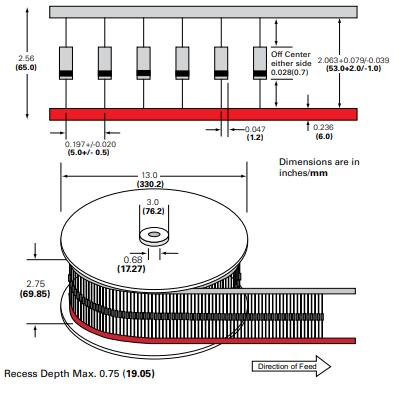

SA15 Package information

Littelfuse products are used in a wide range of electrical energy-related applications, from consumer gadgets to cars and industrial buildings. With rising platforms in power regulation and sense, they have the industry's broadest and deepest array of circuit protection devices. As part of their corporate strategy of accelerated organic expansion and strategic acquisitions, they are growing into complimentary markets. Power semiconductors, heavy-duty switches, magnetic, optical, electromechanical, and temperature sensors, as well as equipment for the safe regulation and distribution of electrical power, are among these markets.
